A16Q-GGEL 0313
A16Q-GGEL 0313
A16Q-GGEL 0313

A16Q-GGEL 0313

UGC DOR6758154
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$329.00 CAD - $329.00 CAD
$329.00 CAD
$329.00 CAD - $329.00 CAD
$329.00 CAD

Vendu en lots de : 1

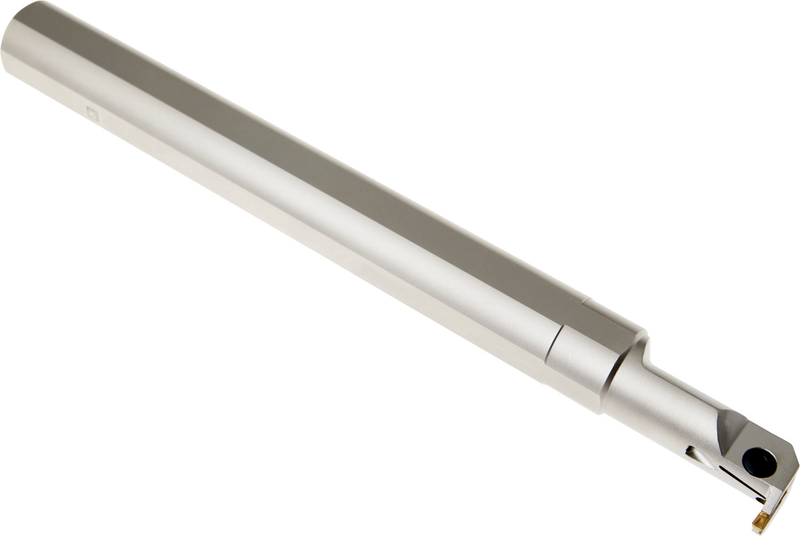

Barre de rainurage à bride supérieure pour plaquette double ou simple face de 12,6 mm de long avec une largeur de coupe de 3 mm (désignation LCM. 0313..), à gauche avec plaquette perpendiculaire à la queue pour une profondeur de gorge maximale de 3 mm, diamètre de queue de 16 mm et longueur d'outil de 180 mm pour rainurage et tournage intérieurs

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A16Q-GGEL 0313
Product Number6758154
Product FamilyGG.(RL) INT
Insert Geometry
Depth of Cut Max — in (APMX)0.1181"

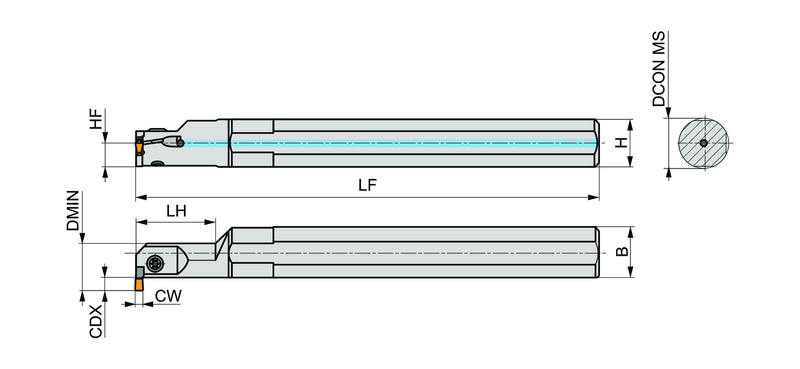

Dimensions
Functional Length — in (LF)7.087"
Functional Length — mm (LF)180.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Shank Height — mm (H)0.591 mm
Min. Bore Dia. — in (DMIN)0.63"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6758154
EAN3603602935007
File Type Download
A16Q-GGEL 0313 — Line Drawing PDF Download
