A20R-GGFR 0313
A20R-GGFR 0313
A20R-GGFR 0313

A20R-GGFR 0313

UGC DOR6758155
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$356.00 CAD - $356.00 CAD
$356.00 CAD
$356.00 CAD - $356.00 CAD
$356.00 CAD

Vendu en lots de : 1

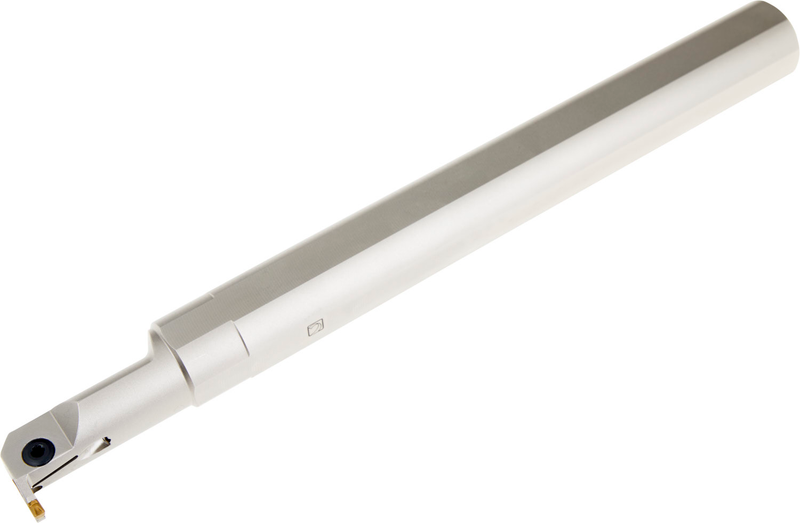

Barre de chariotage à serrage supérieur pour plaquette double ou simple face de 12,6mm de long et 3mm de largeur de coupe (désignation LCM. 0313.. ), droite avec plaquette perpendiculaire à la queue pour une profondeur de chariotage maximale de 4,5mm, diamètre de queue 20mm et longueur d'outil 200mm pour le chariotage et le tournage intérieurs

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A20R-GGFR 0313
Product Number6758155
Product FamilyGG.(RL) INT

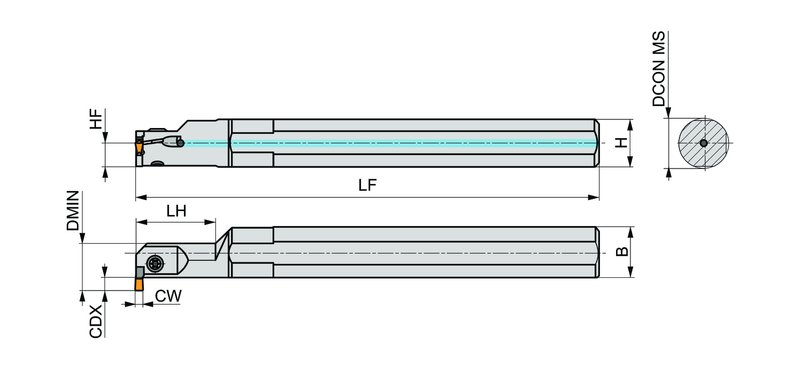

Insert Geometry
Depth of Cut Max — in (APMX)0.1772"
Dimensions
Functional Length — in (LF)7.874"
Functional Length — mm (LF)200.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Shank Height — mm (H)0.709 mm
Min. Bore Dia. — in (DMIN)0.787"
Tool Information
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6758155
EAN3603602935014
File Type Download
A20R-GGFR 0313 — Line Drawing PDF Download
