A25S-GGHR 0313
A25S-GGHR 0313
A25S-GGHR 0313

A25S-GGHR 0313

UGC DOR6758157
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$414.00 CAD - $414.00 CAD
$414.00 CAD
$414.00 CAD - $414.00 CAD
$414.00 CAD

Vendu en lots de : 1

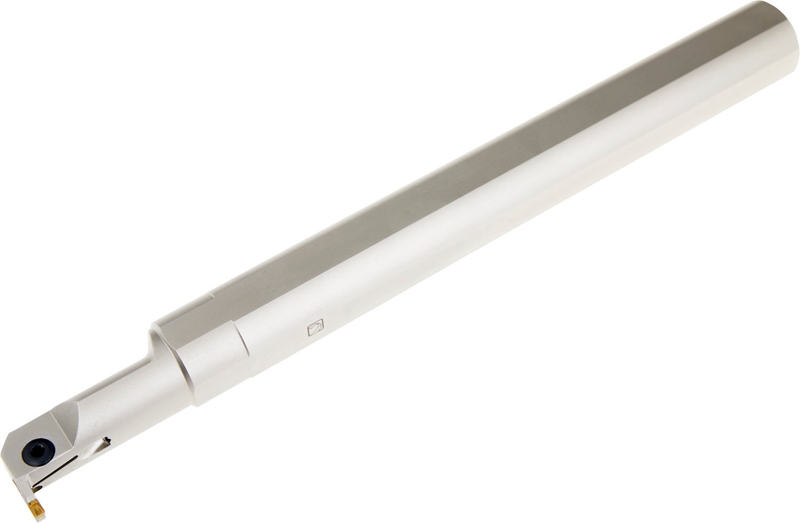

Barre de chariotage par le haut pour plaquette double ou simple face de 12,6 mm de long avec largeur de coupe de 3 mm (désignation LCM. 0313.. ), droite, avec plaquette perpendiculaire à la queue pour une profondeur de chariotage maximale de 6,5 mm, diamètre de queue de 25 mm et longueur d'outil de 250 mm pour le chariotage et le tournage intérieurs

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A25S-GGHR 0313
Product Number6758157
Product FamilyGG.(RL) INT
Insert Geometry
Depth of Cut Max — in (APMX)0.2559"
Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)0.984"
Tool Information
Direction of ToolNeutre
Through Coolant Yes
Reference Numbers
EDP Number6758157
EAN3603602935038
File Type Download

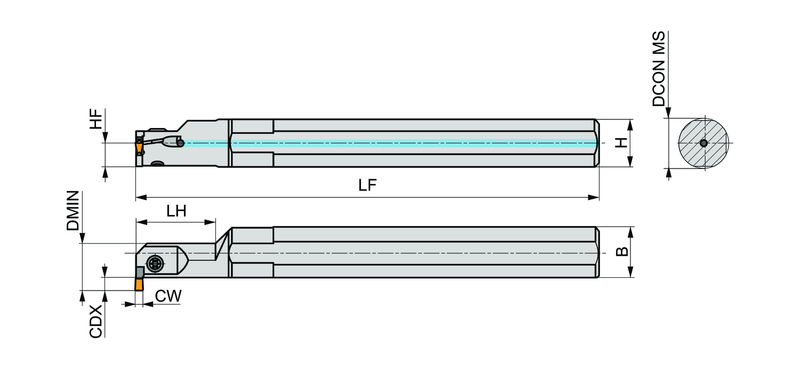

A25S-GGHR 0313 — Line Drawing PDF Download
