A25S-GGHL 0313
A25S-GGHL 0313
A25S-GGHL 0313

A25S-GGHL 0313

UGC DOR6758158
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$414.00 CAD - $414.00 CAD
$414.00 CAD
$414.00 CAD - $414.00 CAD
$414.00 CAD

Vendu en lots de : 1

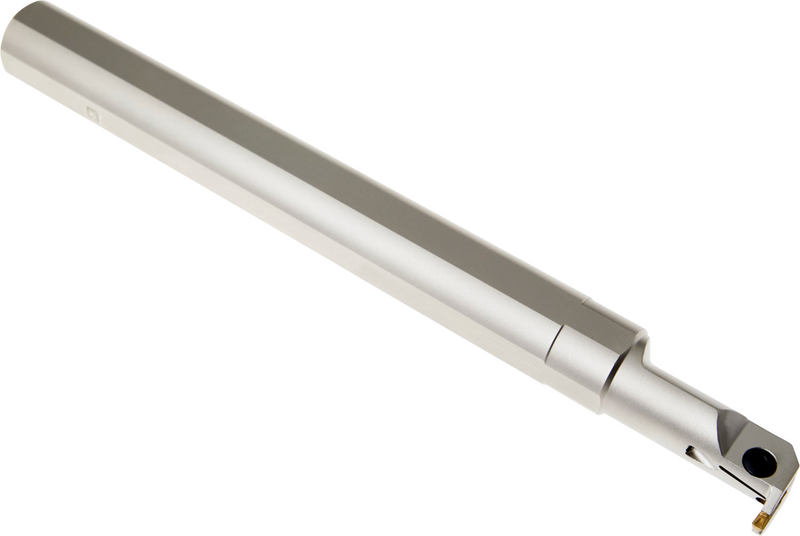

Barre de chariotage supérieure pour l'insertion d'un embout double ou simple de 12,6mm de long avec une largeur de coupe de 3mm (désignation LCM. 0313.. ), à gauche avec un embout perpendiculaire à la tige pour une profondeur de chariotage maximale de 6,5mm, un diamètre de tige de 25mm et une longueur d'outil de 250mm pour le chariotage et le tournage interne

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A25S-GGHL 0313
Product Number6758158
Product FamilyGG.(RL) INT
Insert Geometry
Depth of Cut Max — in (APMX)0.2559"
Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)0.984"
Tool Information
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6758158
EAN3603602935045
File Type Download

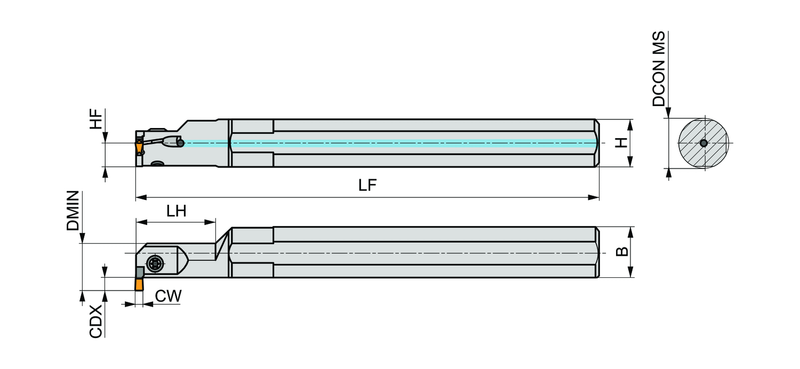

A25S-GGHL 0313 — Line Drawing PDF Download
