PSSNL 5050 T 25
PSSNL 5050 T 25
PSSNL 5050 T 25

PSSNL 5050 T 25

UGC DOR6758290
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$445.00 CAD - $445.00 CAD
$445.00 CAD
$445.00 CAD - $445.00 CAD
$445.00 CAD

Vendu en lots de : 1

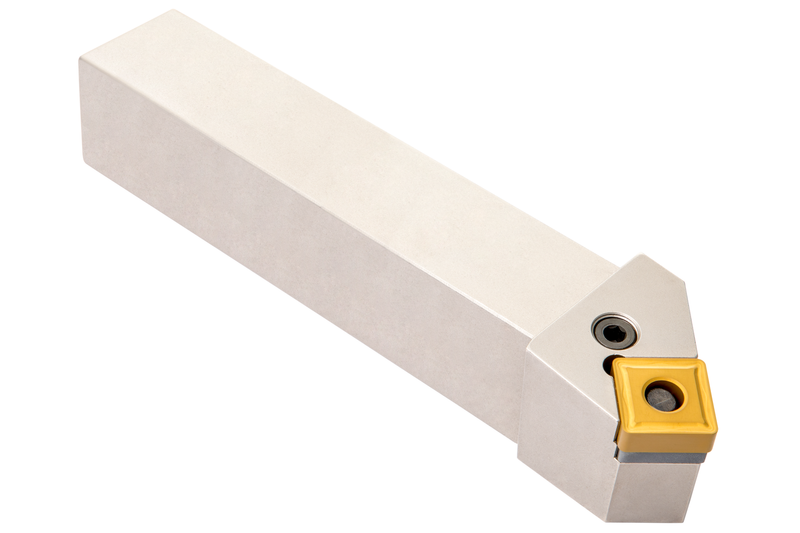

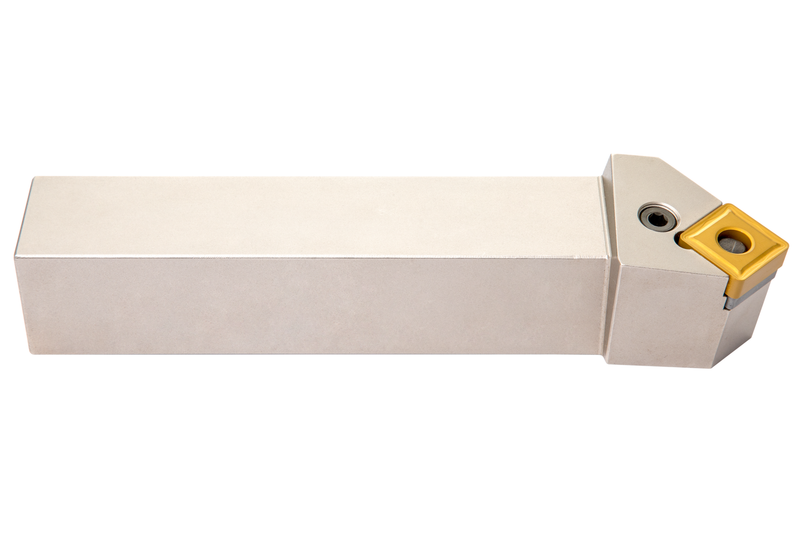

Outil de tournage à levier pour plaquette carrée négative avec un diamètre de cercle inscrit de 25,4 mm, 7,94 mm d'épaisseur (désignation ISO SN.. 2507..), coupe latérale à gauche à 45° avec corps déporté, hauteur d'outil 50 mm x largeur 50 mm x longueur 300 mm pour le chanfreinage, le tournage conique, le tournage de copiage unidirectionnel et multidirectionnel, le dressage sans épaulement et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSSNL 5050 T 25
Product Number6758290
Product FamilyPSSN(RL) EXT

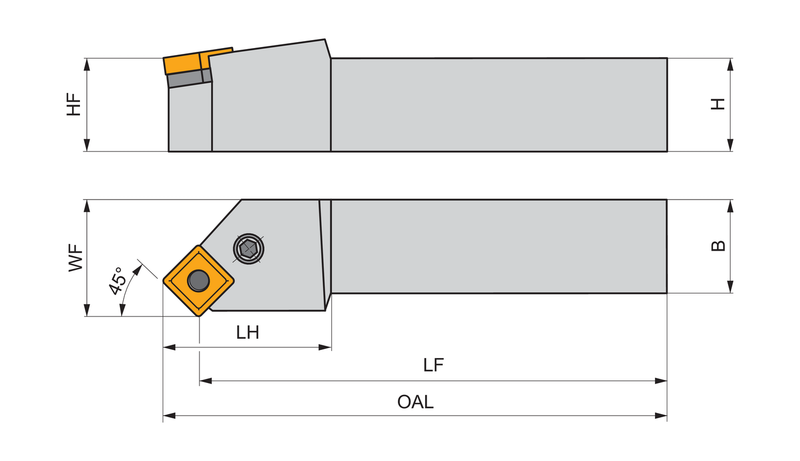

Dimensions
Overall Length — in (OAL)12.441"
Overall Length — mm (OAL)316.0 mm
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Shank Height — mm (H)1.969 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6758290
EAN3603602936363
File Type Download
PSSNL 5050 T 25 — 3D Model STP Download
PSSNL 5050 T 25 — 2D Model DXF Download
PSSNL 5050 T 25 — Line Drawing PDF Download
