KHS-SBCL 25
KHS-SBCL 25
KHS-SBCL 25

KHS-SBCL 25

UGC DOR6758300
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$453.00 CAD - $453.00 CAD
$453.00 CAD
$453.00 CAD - $453.00 CAD
$453.00 CAD

Vendu en lots de : 1

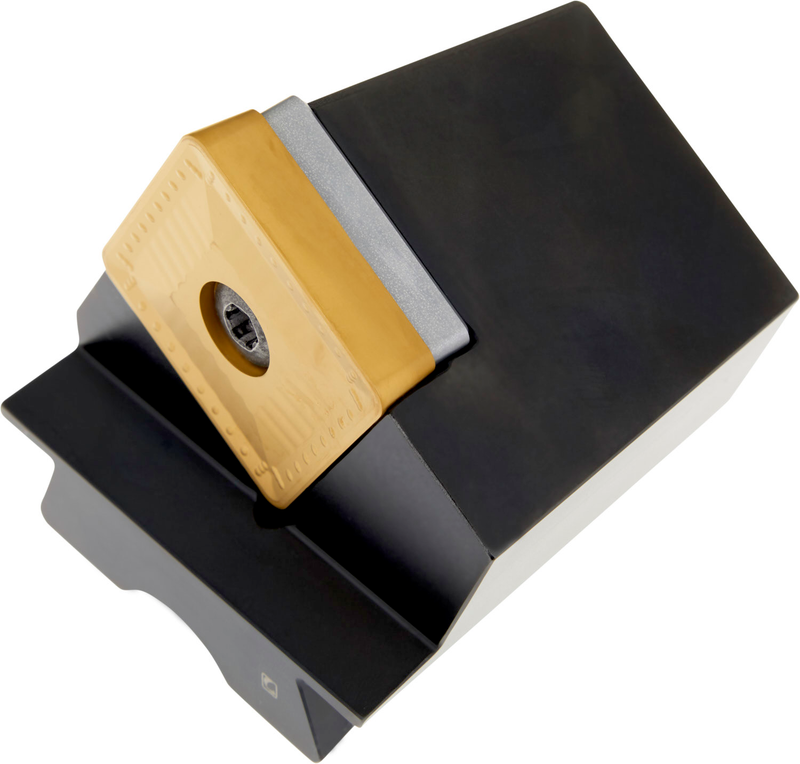

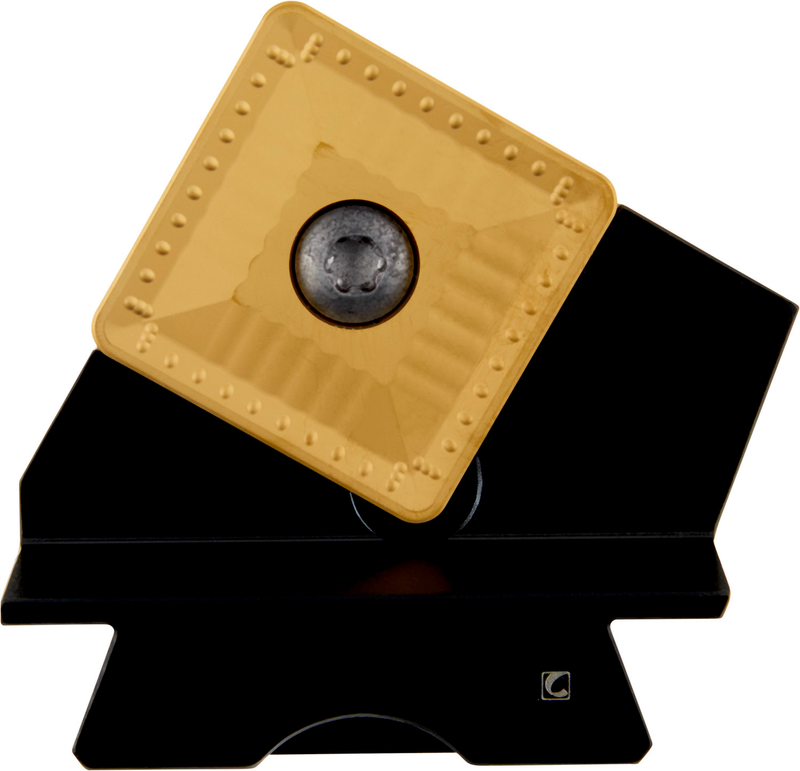

Cartouche modulaire à plaquette vissée pour outil de tournage, pour plaquette carrée positive avec un cercle inscrit de 25,4 mm de diamètre et de 9,52 mm d'épaisseur (désignation ISO SC.. 2509.. ), à assembler avec DHKL.. pour coupe à gauche à 75° avec queue droite pour tournage conique, surfaçage sans épaulement et chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)KHS-SBCL 25
Product Number6758300
Product FamilyKHS-SBC(RL)
Dimensions

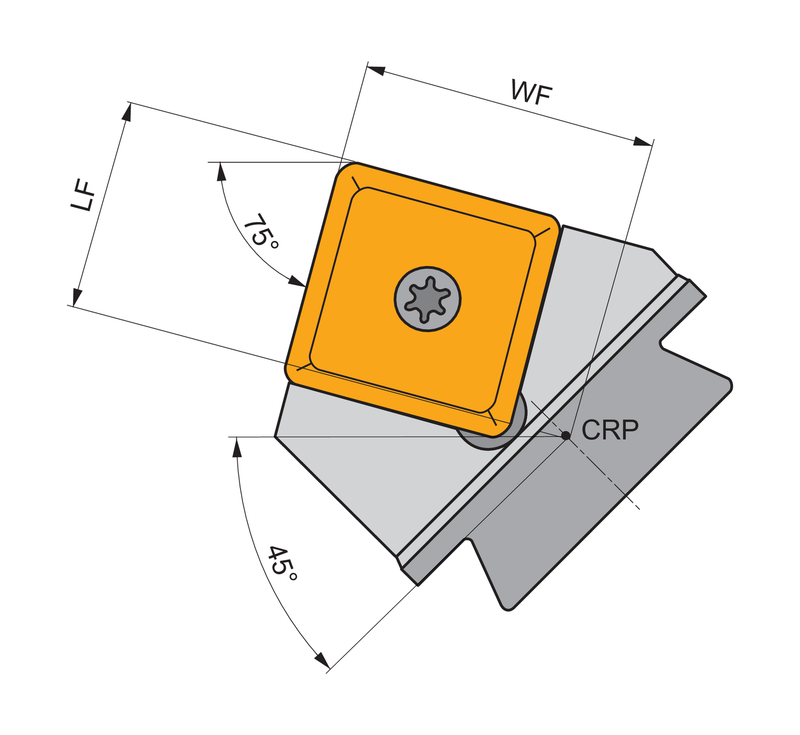

Functional Length — in (LF)1.417"
Functional Length — mm (LF)36.0 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6758300
EAN3603602936462
File Type Download
KHS-SBCL 25 — 3D Model STP Download
KHS-SBCL 25 — Line Drawing PDF Download
