50A06R-S90SO09-C
50A06R-S90SO09-C
50A06R-S90SO09-C

50A06R-S90SO09-C

UGC DOR6758309
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$738.00 CAD - $738.00 CAD
$738.00 CAD
$738.00 CAD - $738.00 CAD
$738.00 CAD

Vendu en lots de : 1

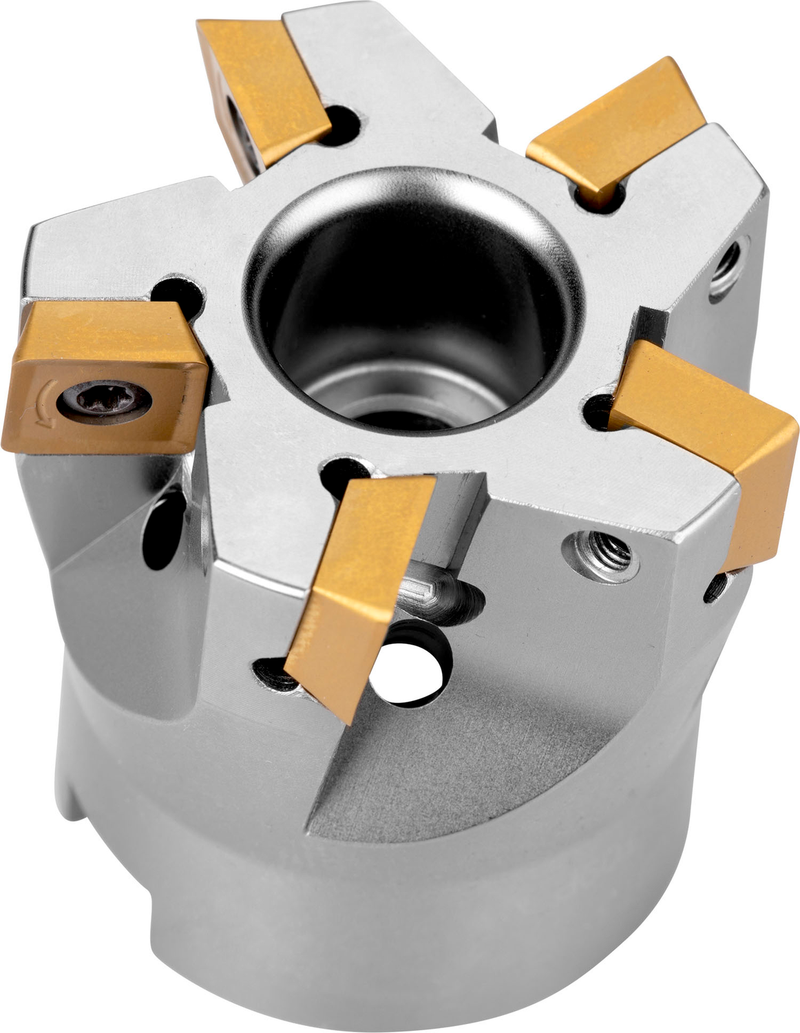

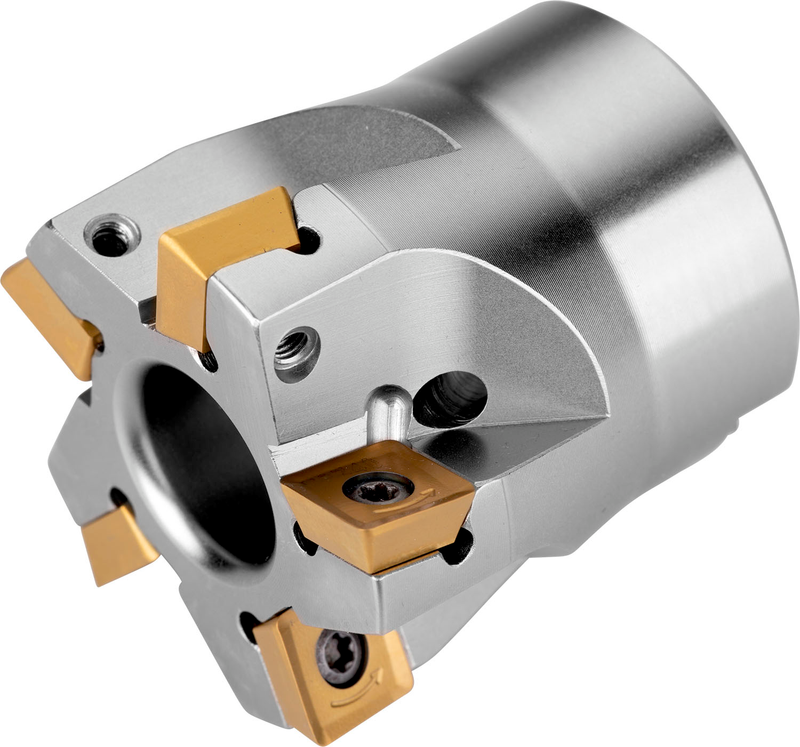

Fraise à surfacer-dresser avec géométrie positive/négative qui utilise 6 plaquettes simple face SOMT 09T3.., diamètre de coupe de 50 mm avec un angle d'attaque de 90° et un alésage de raccordement de 22 mm selon DIN 8030-A, longueur de dépassement de 40 mm, arrosage central pour le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes et le fraisage en plongée avec une profondeur de coupe maximale de 8,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50A06R-S90SO09-C
Product Number6758309
Product FamilySSO09
Insert Geometry
Depth of Cut Max — mm (APMX)8.0 mm

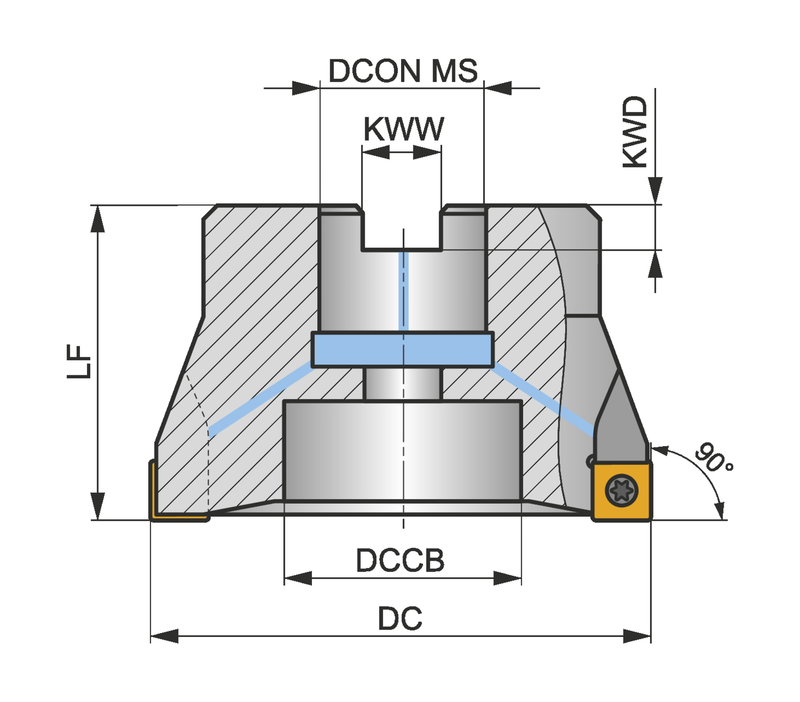

Dimensions
Cutting Diameter — in (DC)1.969"
Cutting Diameter — mm (DC)50.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSSO09
ShankFraise en bout DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6758309
EAN3603602936554
File Type Download
50A06R-S90SO09-C — 3D Model STP Download
50A06R-S90SO09-C — 2D Model DXF Download
50A06R-S90SO09-C — Line Drawing PDF Download
