80F8N-S90SN11N5
80F8N-S90SN11N5
80F8N-S90SN11N5

80F8N-S90SN11N5

UGC DOR6758321
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,455.00 CAD - $1,455.00 CAD
$1,455.00 CAD
$1,455.00 CAD - $1,455.00 CAD
$1,455.00 CAD

Vendu en lots de : 1

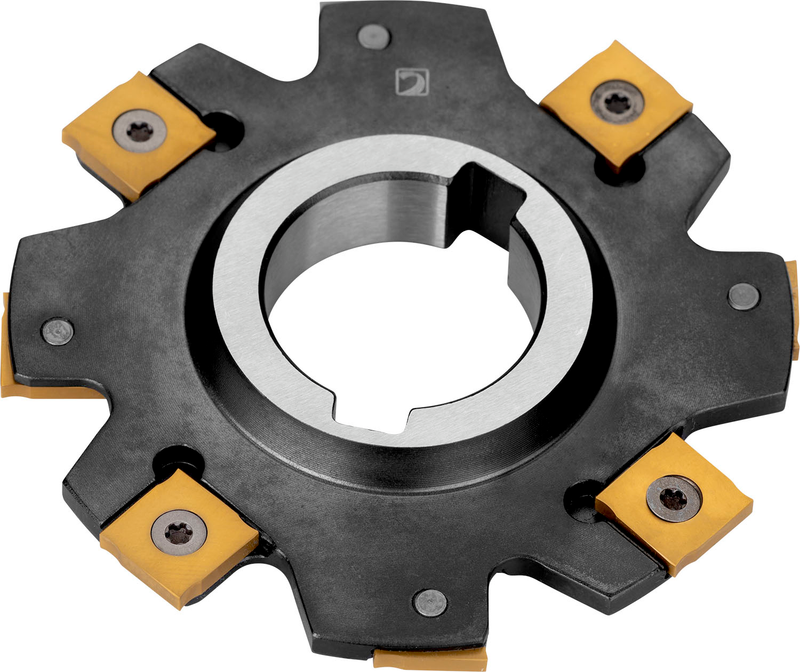

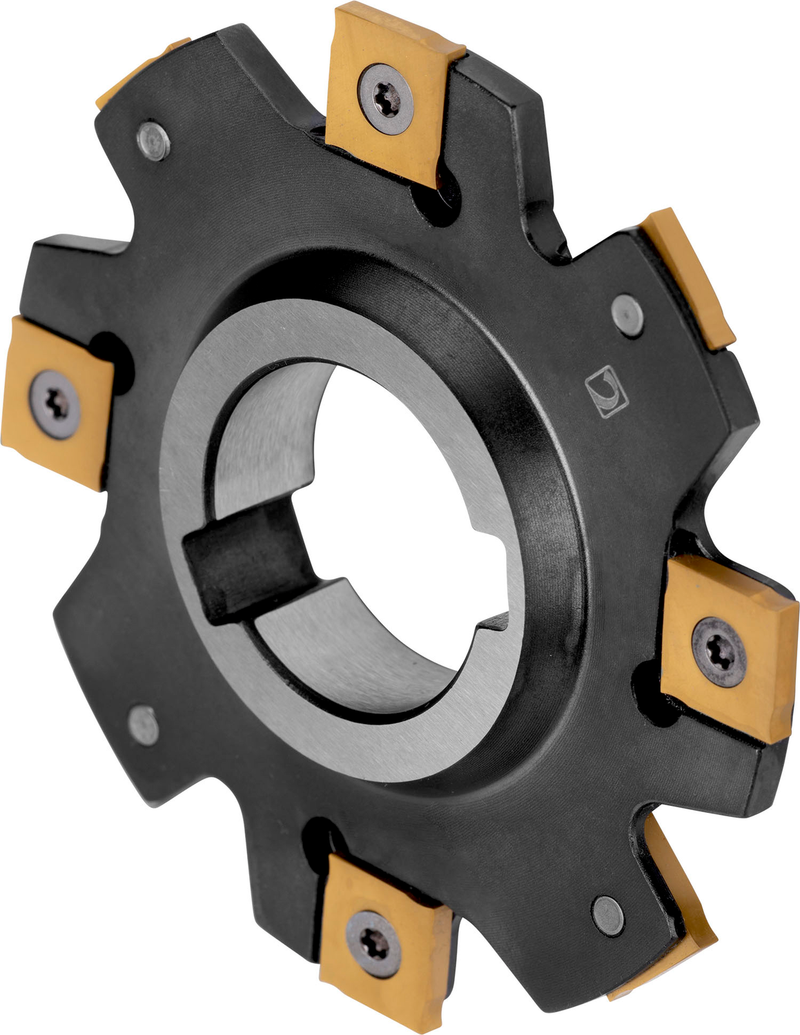

Fraise-scie à géométrie positive/négative utilisant 8 plaquettes doubles SNHQ 1103.., diamètre de coupe 80 mm avec angle d'attaque de 90° et alésage de raccordement de 27 mm selon la norme DIN 8030, pour le rainurage profond avec une largeur de coupe de 5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80F8N-S90SN11N5
Product Number6758321
Product FamilyS90SN

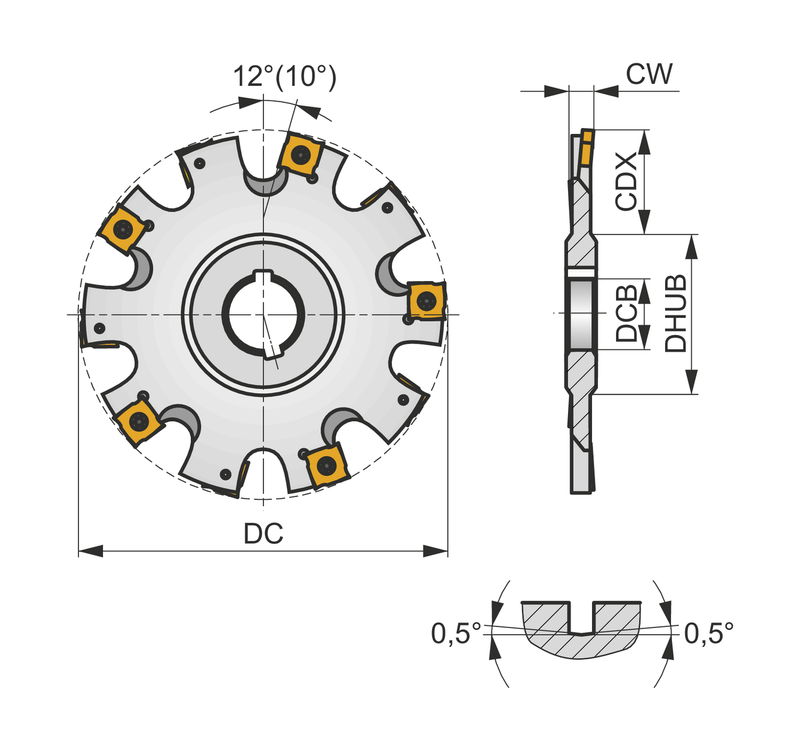

Dimensions
Cutting Diameter — in (DC)3.15"
Cutting Diameter — mm (DC)80.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignS90SN
ShankFraise cloche DIN 8030 – fraise disque
Direction of ToolGauche
Reference Numbers
EDP Number6758321
EAN3603602936677
File Type Download
80F8N-S90SN11N5 — 3D Model STP Download
80F8N-S90SN11N5 — 2D Model DXF Download
80F8N-S90SN11N5 — Line Drawing PDF Download
