UGC DOR6758331
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$426.00 CAD - $426.00 CAD
$426.00 CAD
$426.00 CAD - $426.00 CAD
$426.00 CAD

Vendu en lots de : 1

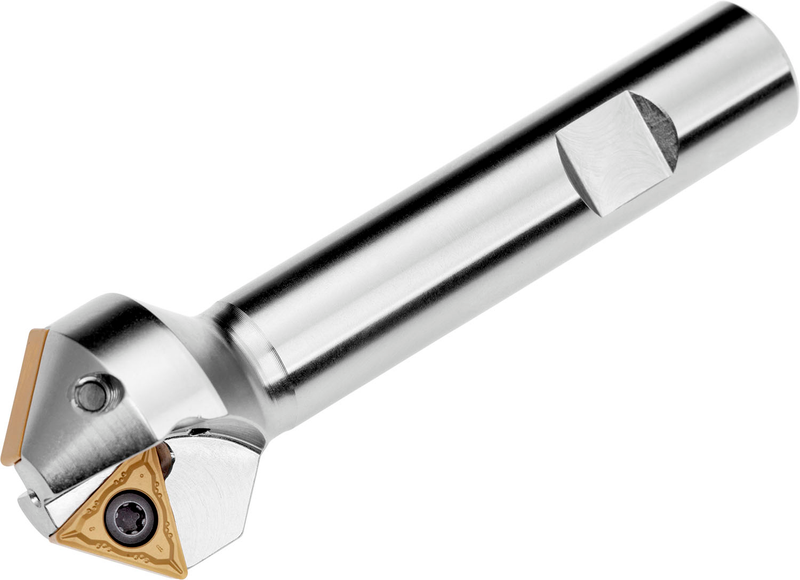

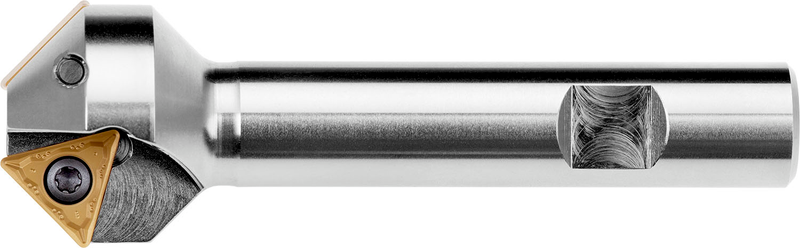

Fraise à chanfreiner utilisant 2 plaquettes simple face TCMT 16T308E-FM:T83.., diamètre de coupe 19 à 39 mm maximum avec un angle d'attaque de 45° et une queue Weldon de 20 mm selon DIN 1835B, longueur fonctionnelle de 30 mm et longueur totale de 100 mm, arrosage central pour le chanfreinage avec une profondeur de coupe maximale de 8,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)2516-45-19
Product Number6758331
Product Family2516
Insert Geometry
Depth of Cut Max — mm (APMX)8.5 mm

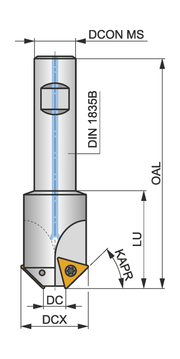

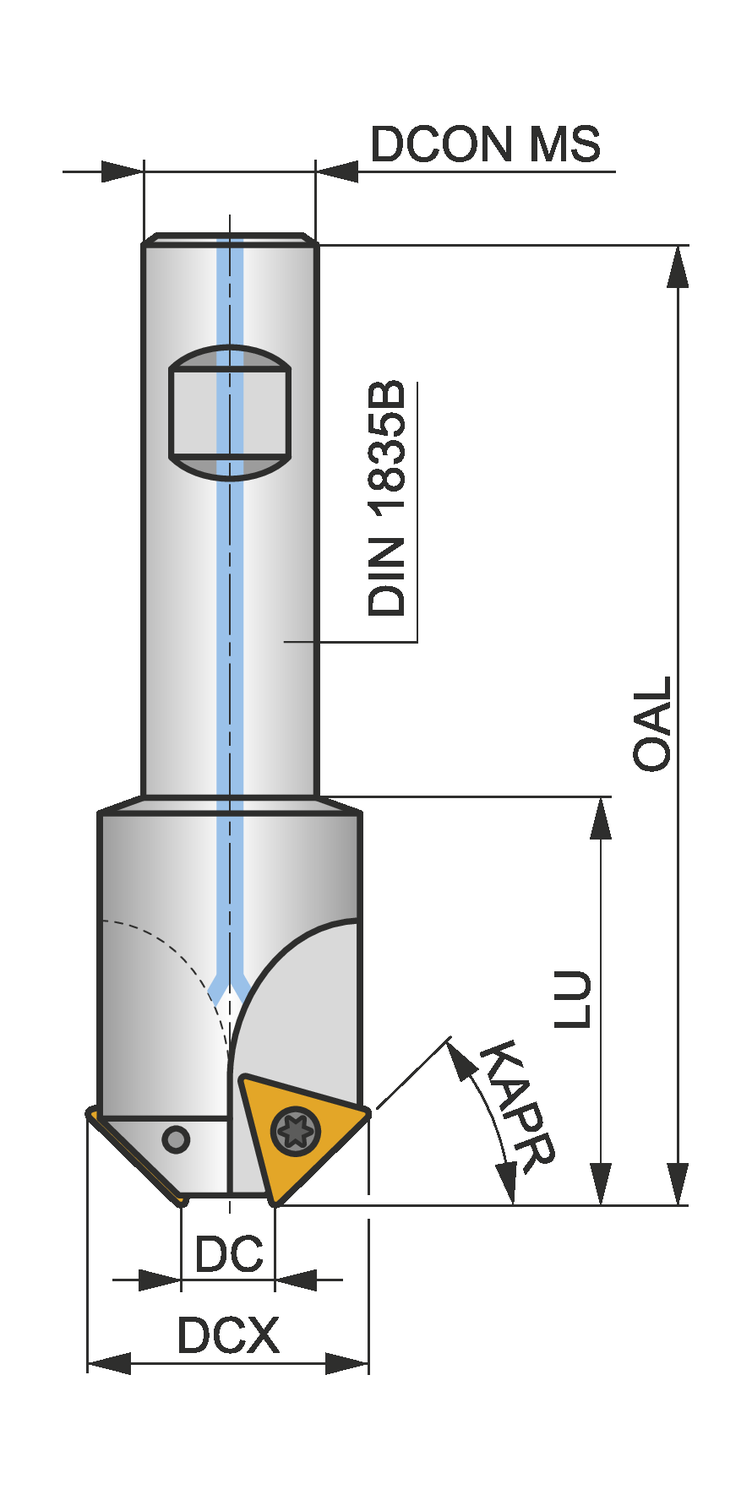

Dimensions
Cutting Diameter — in (DC)0.748"
Cutting Diameter — mm (DC)19.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)30.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Tool Information
Tool Design2516
ShankQueue Weldon DIN 1835B
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6758331
EAN3603602936776
File Type Download
2516-45-19 — 3D Model STP Download
2516-45-19 — Line Drawing PDF Download
