8N1R027B16-SSO09-C
8N1R027B16-SSO09-C
8N1R027B16-SSO09-C

8N1R027B16-SSO09-C

UGC DOR6758332
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$326.00 CAD - $326.00 CAD
$326.00 CAD
$326.00 CAD - $326.00 CAD
$326.00 CAD

Vendu en lots de : 1

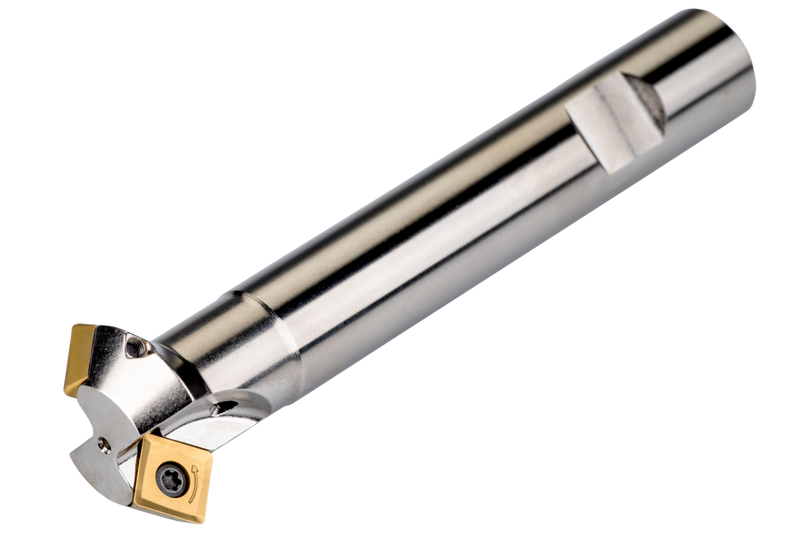

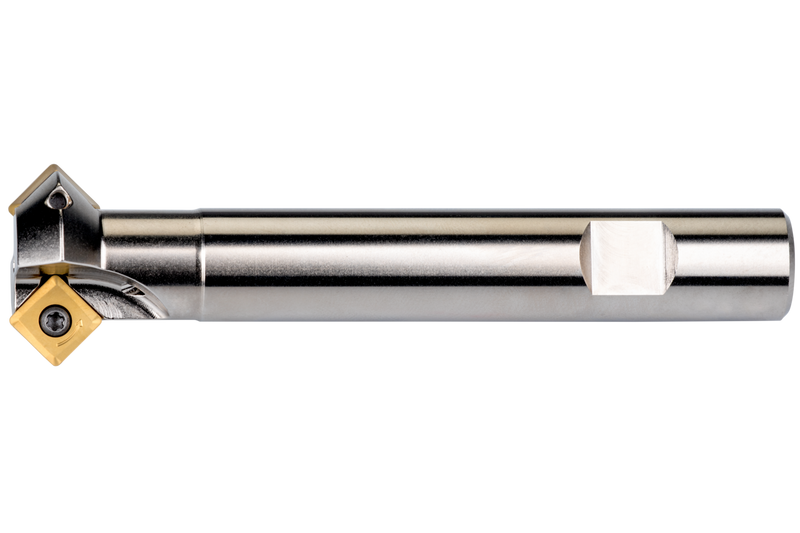

Fraise à chanfreiner avec géométrie double négative utilisant 1 plaquette simple face SOMT 09T3.., diamètre de coupe de 8 à 20,5 mm maximum avec un angle d'attaque de 45° et un queue Weldon de 16 mm selon DIN 1835B, longueur totale de 90 mm, arrosage central pour le chanfreinage avec une profondeur de coupe maximale de 4,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)8N1R027B16-SSO09-C
Product Number6758332
Product FamilyN-SSO09
Insert Geometry
Depth of Cut Max — mm (APMX)4.5 mm

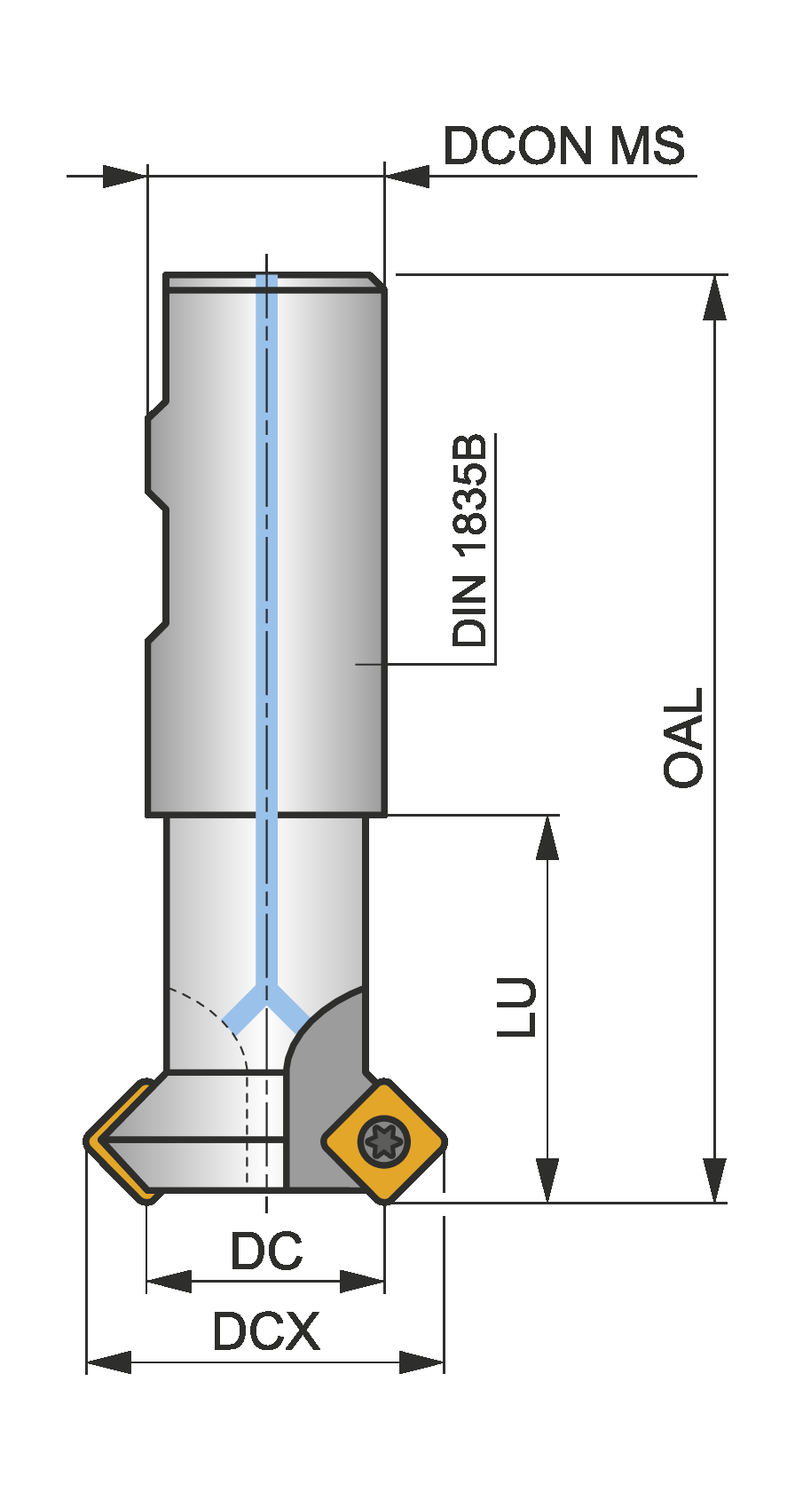

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)3.543"
Overall Length — mm (OAL)90.0 mm
Usable Length — mm (LU)27.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)1
Tool Information
Tool DesignN-SSO09
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6758332
EAN3603602936783
File Type Download
8N1R027B16-SSO09-C — 3D Model STP Download
8N1R027B16-SSO09-C — 2D Model DXF Download
8N1R027B16-SSO09-C — Line Drawing PDF Download
