25N3R042B25-SSO09-C
25N3R042B25-SSO09-C
25N3R042B25-SSO09-C

25N3R042B25-SSO09-C

UGC DOR6758334
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$495.00 CAD - $495.00 CAD
$495.00 CAD
$495.00 CAD - $495.00 CAD
$495.00 CAD

Vendu en lots de : 1

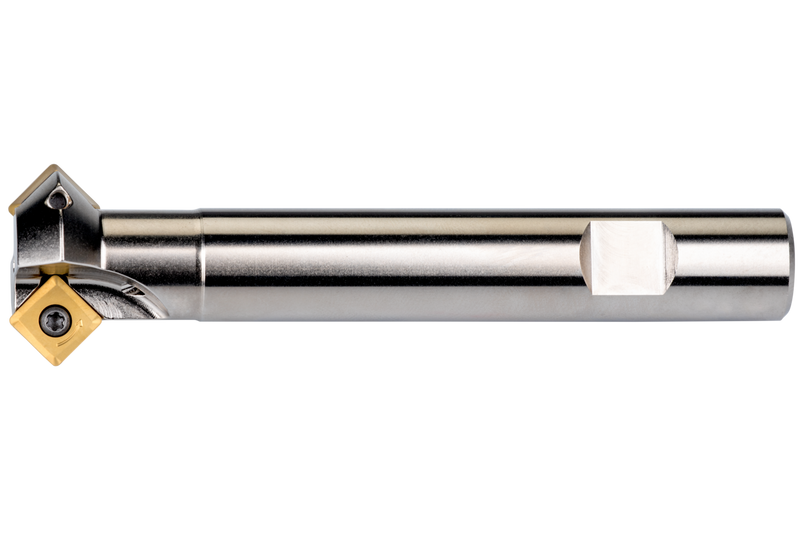

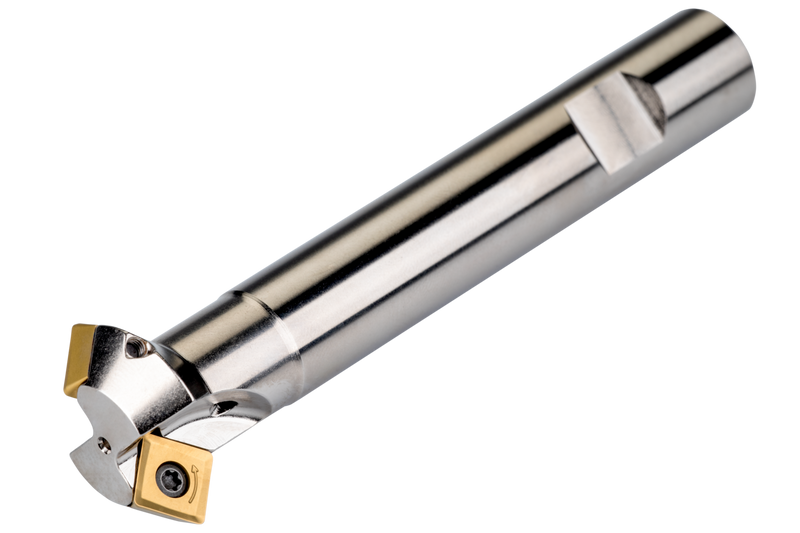

Fraise à chanfreiner avec une géométrie double négative qui utilise 3 plaquettes simple face SOMT 09T3.., diamètre de coupe de 25 à 37,8mm maximum avec un angle d'attaque de 45° et une queue Weldon de 25mm selon DIN 1835B, 125mm de longueur totale, arrosage central pour le chanfreinage avec une profondeur de coupe maximale de 4,5mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25N3R042B25-SSO09-C
Product Number6758334
Product FamilyN-SSO09
Insert Geometry
Depth of Cut Max — mm (APMX)4.5 mm

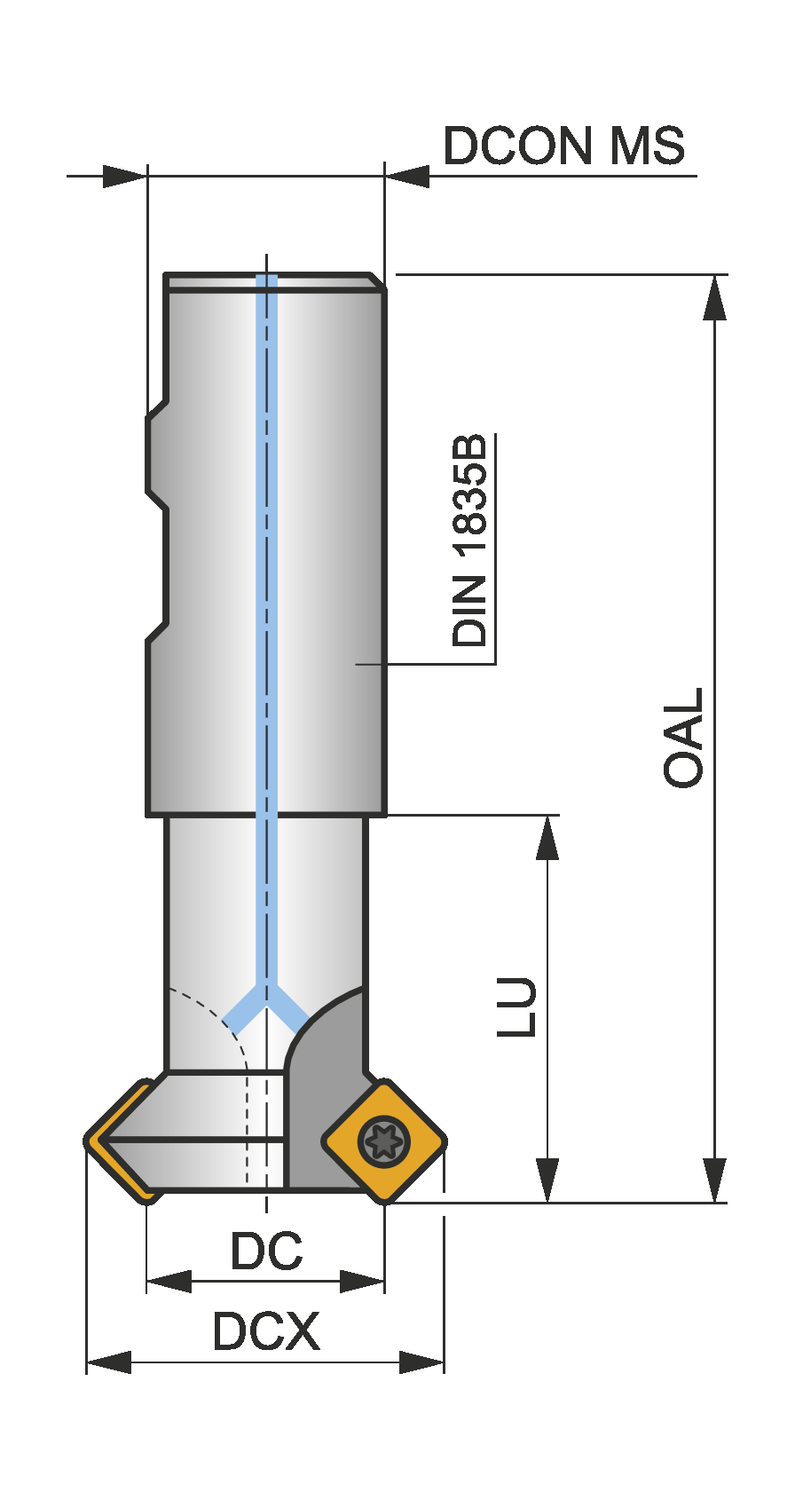

Dimensions
Cutting Diameter — in (DC)0.984"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)4.921"
Overall Length — mm (OAL)125.0 mm
Usable Length — mm (LU)42.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignN-SSO09
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6758334
EAN3603602936806
File Type Download
25N3R042B25-SSO09-C — 3D Model STP Download
25N3R042B25-SSO09-C — 2D Model DXF Download
25N3R042B25-SSO09-C — Line Drawing PDF Download
