63A05R-S45SN12Z-C
63A05R-S45SN12Z-C
63A05R-S45SN12Z-C

63A05R-S45SN12Z-C

UGC DOR6758340
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$750.00 CAD - $750.00 CAD
$750.00 CAD
$750.00 CAD - $750.00 CAD
$750.00 CAD

Vendu en lots de : 1

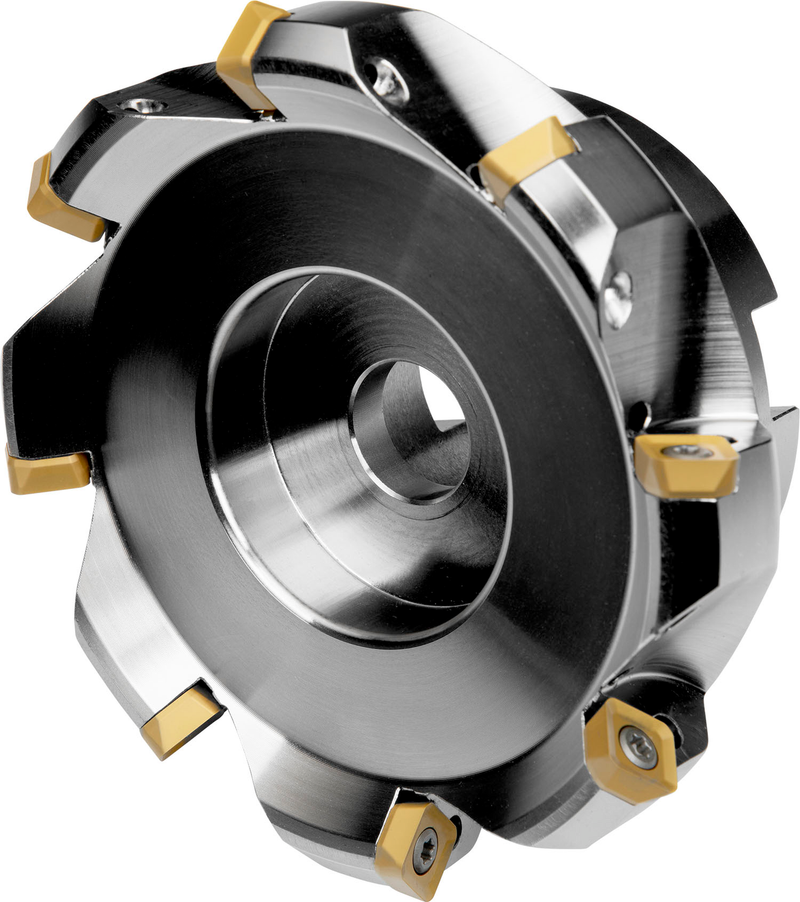

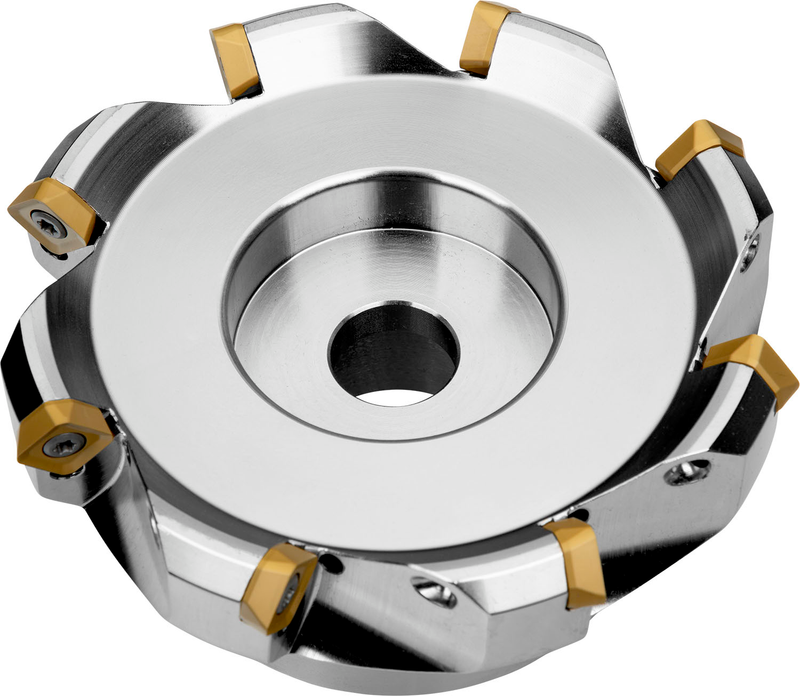

Fraise à surfacer de géométrie positive/négative qui utilise 5 plaquettes double face SNKT 1205AZ... ou SNMT 1205AZ..., diamètre de coupe 63 à 78 mm maximum avec un angle d'attaque de 45° et un alésage de raccordement de 22 mm selon DIN 8030-A, longueur de dépassement de 40 mm, arrosage central pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de 6,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63A05R-S45SN12Z-C
Product Number6758340
Product FamilySSN12Z
Insert Geometry
Depth of Cut Max — mm (APMX)6.5 mm

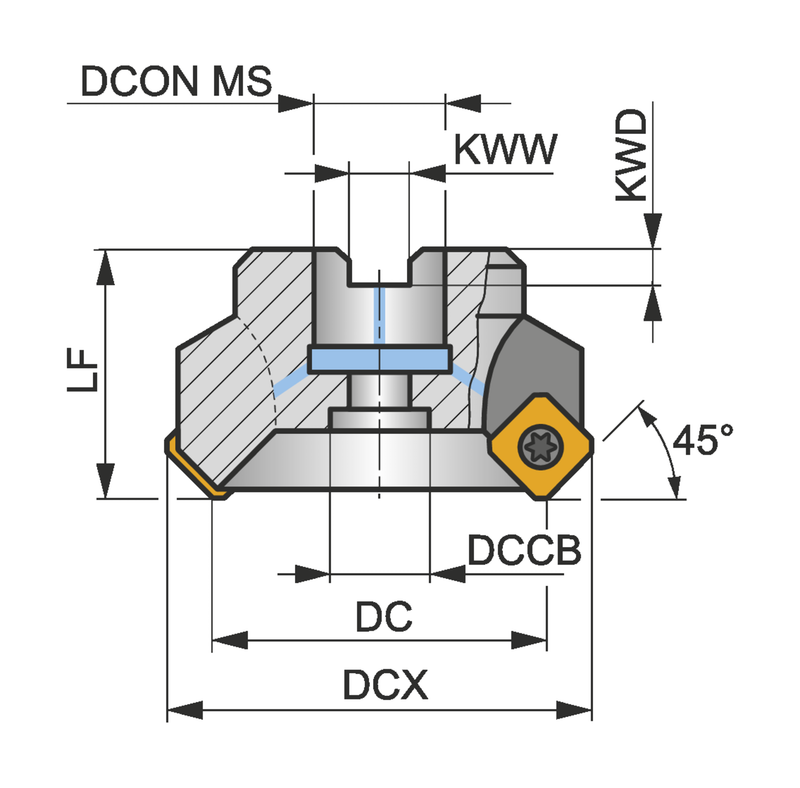

Dimensions
Cutting Diameter — in (DC)2.48"
Cutting Diameter — mm (DC)63.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSSN12Z
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6758340
EAN3603602936868
File Type Download
63A05R-S45SN12Z-C — 3D Model STP Download
63A05R-S45SN12Z-C — 2D Model DXF Download
63A05R-S45SN12Z-C — Line Drawing PDF Download
