20A2R032B20-SSO09-C
20A2R032B20-SSO09-C
20A2R032B20-SSO09-C

20A2R032B20-SSO09-C

UGC DOR6758358
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$572.00 CAD - $572.00 CAD
$572.00 CAD
$572.00 CAD - $572.00 CAD
$572.00 CAD

Vendu en lots de : 1

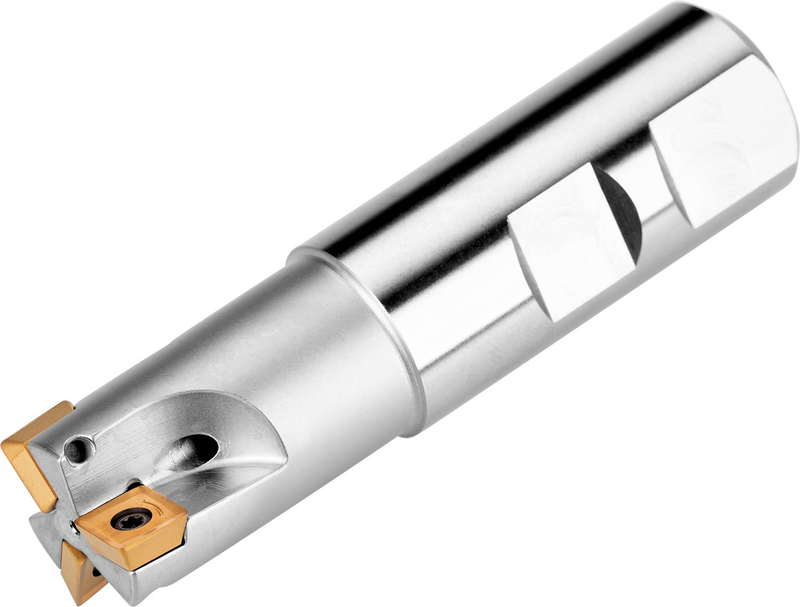

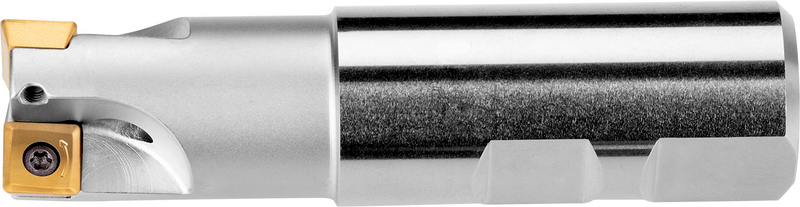

Fraise à épaulement à géométrie positive/négative qui utilise 2 plaquettes simple face SOMT 09T3.., diamètre de coupe 20mm avec un angle d'attaque de 90° et une queue Weldon de 20mm conforme à la norme DIN 1835B, longueur totale 82mm, arrosage central pour le surfaçage en bout léger, le rainurage léger et le plongée-fraisage avec une profondeur de coupe maximale de 8.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)20A2R032B20-SSO09-C
Product Number6758358
Product FamilySSO09
Insert Geometry
Depth of Cut Max — mm (APMX)8.0 mm

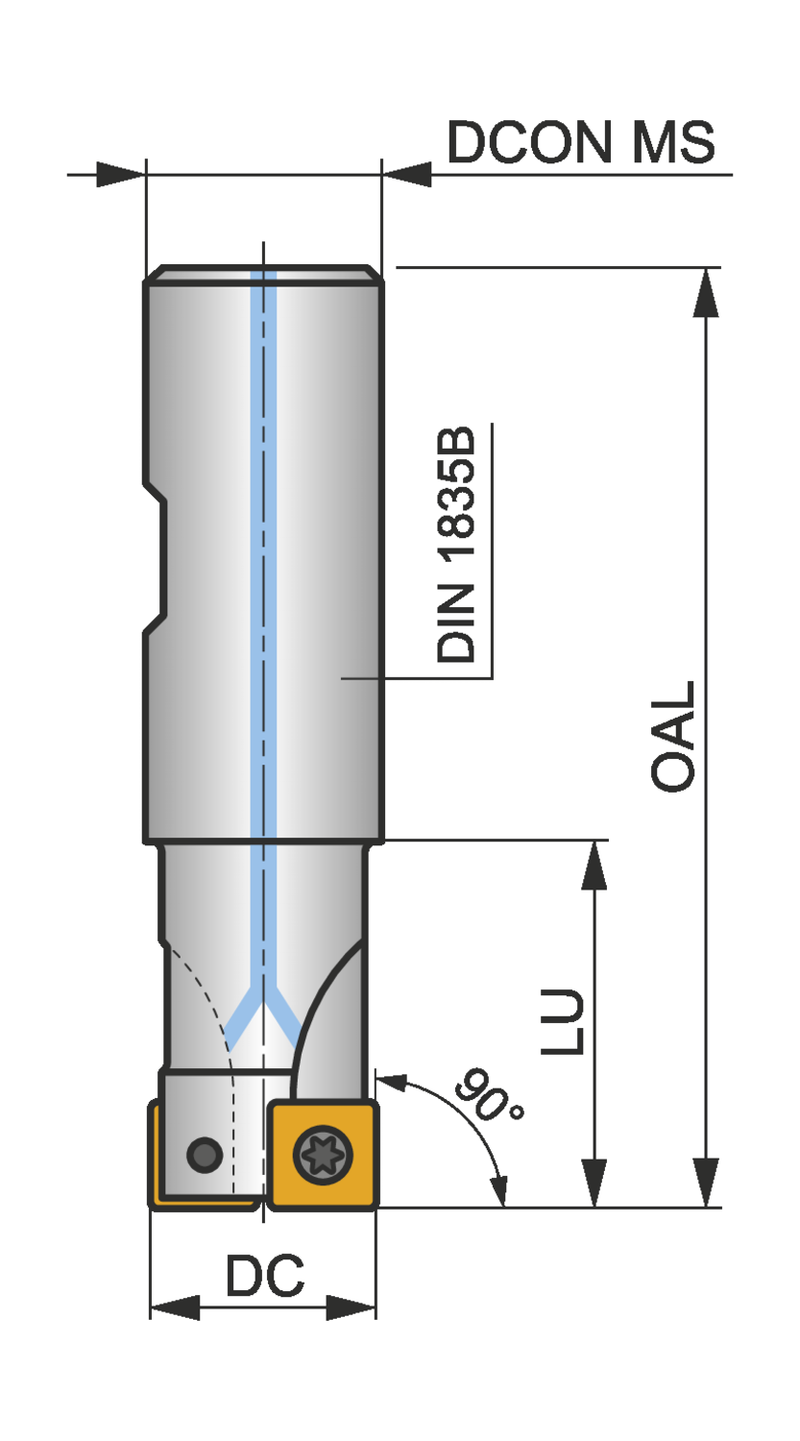

Dimensions
Cutting Diameter — in (DC)0.787"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)3.228"
Overall Length — mm (OAL)82.0 mm
Usable Length — mm (LU)32.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSSO09
ShankQueue Weldon DIN 1835B
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6758358
EAN3603602937049
File Type Download
20A2R032B20-SSO09-C — 3D Model STP Download
20A2R032B20-SSO09-C — 2D Model DXF Download
20A2R032B20-SSO09-C — Line Drawing PDF Download
