25A2R042B25-SAP16D-C
25A2R042B25-SAP16D-C
25A2R042B25-SAP16D-C

25A2R042B25-SAP16D-C

UGC DOR6758369
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$506.00 CAD - $506.00 CAD
$506.00 CAD
$506.00 CAD - $506.00 CAD
$506.00 CAD

Vendu en lots de : 1

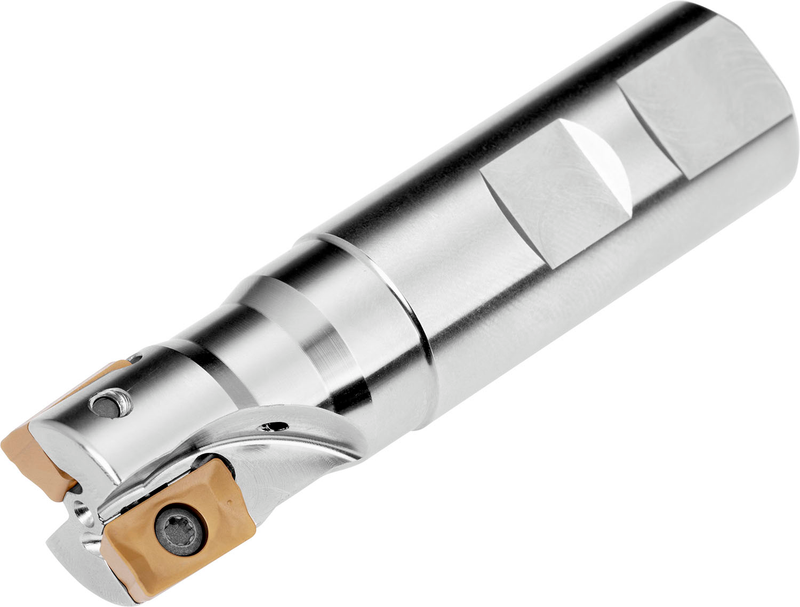

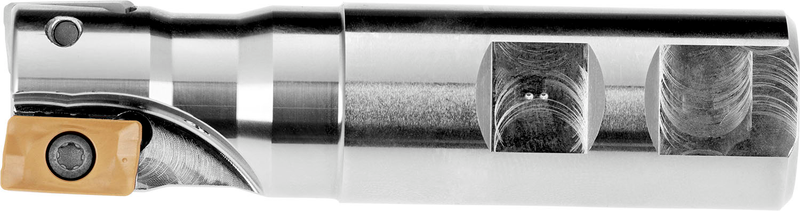

Fraise à épaulement à géométrie positive/négative qui utilise 2 plaquettes simple face APKT 1604... ou APET 1604..., diamètre de coupe 25 mm avec un angle d'attaque de 90° et une queue Weldon de 25 mm selon la norme DIN 1835B, longueur fonctionnelle de 42 mm et longueur totale de 98 mm, arrosage central pour le fraisage d'épaulements peu profonds, le fraisage de gorges peu profondes, l'interpolation hélicoïdale, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 13,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25A2R042B25-SAP16D-C
Product Number6758369
Product FamilySAP16D
Insert Geometry
Depth of Cut Max — mm (APMX)13.0 mm

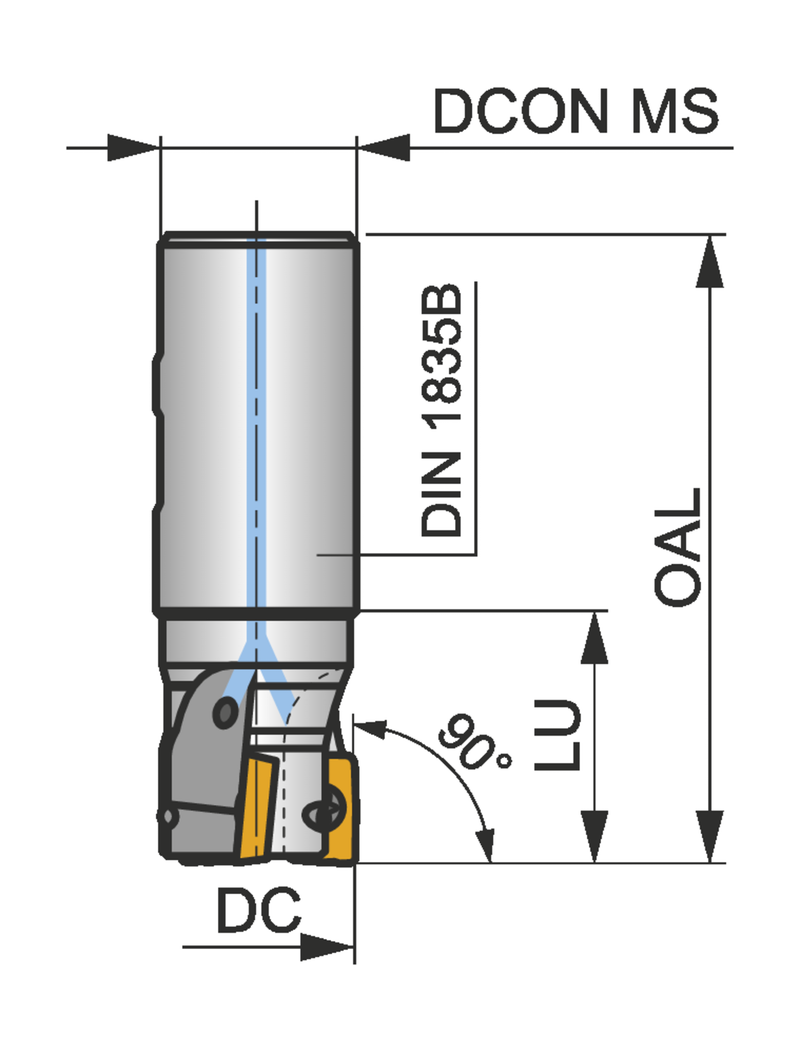

Dimensions
Cutting Diameter — in (DC)0.984"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)3.858"
Overall Length — mm (OAL)98.0 mm
Usable Length — mm (LU)42.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSAP16D
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6758369
EAN3603602937155
File Type Download
25A2R042B25-SAP16D-C — 3D Model STP Download
25A2R042B25-SAP16D-C — 2D Model DXF Download
25A2R042B25-SAP16D-C — Line Drawing PDF Download
