100G10N-S90SN12N8
100G10N-S90SN12N8
100G10N-S90SN12N8

100G10N-S90SN12N8

UGC DOR6758374
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,570.00 CAD - $1,570.00 CAD
$1,570.00 CAD
$1,570.00 CAD - $1,570.00 CAD
$1,570.00 CAD

Vendu en lots de : 1

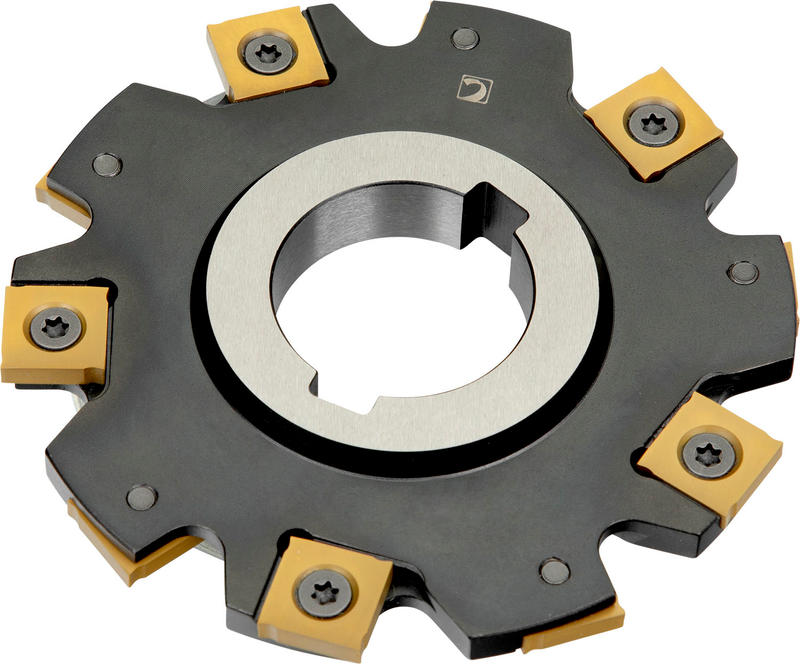

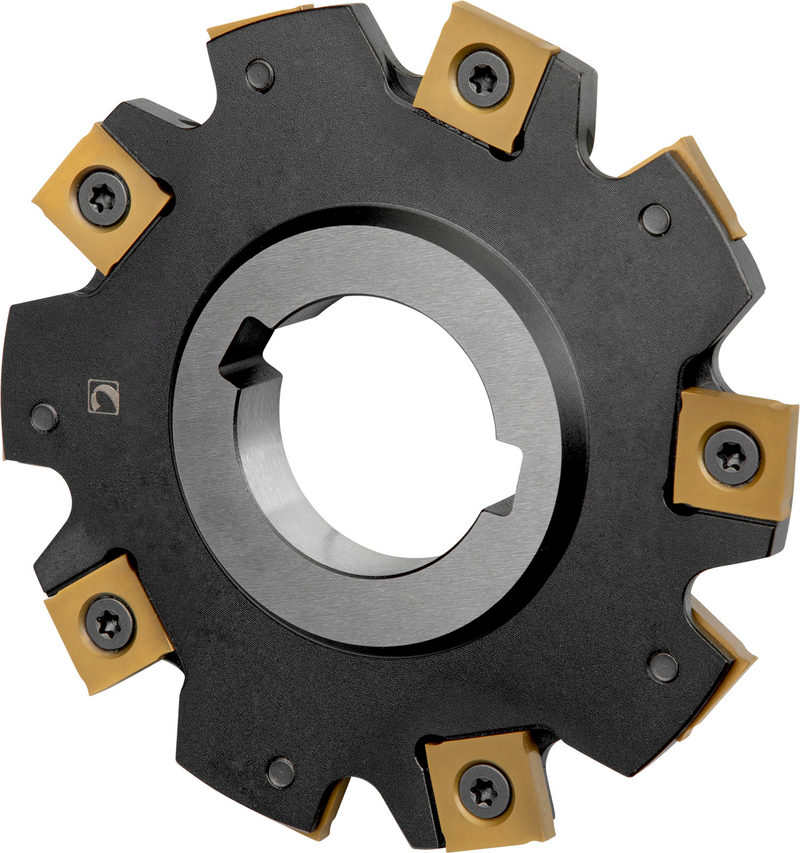

Fraise-scie à géométrie positive/négative qui utilise 10 plaquettes double-face SNHQ 1204.., diamètre de coupe 100mm avec un angle d'attaque de 90° et un alésage de raccordement de 32mm selon DIN 8030, pour le fraisage de gorges profondes avec une largeur de coupe de 8mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100G10N-S90SN12N8
Product Number6758374
Product FamilyS90SN

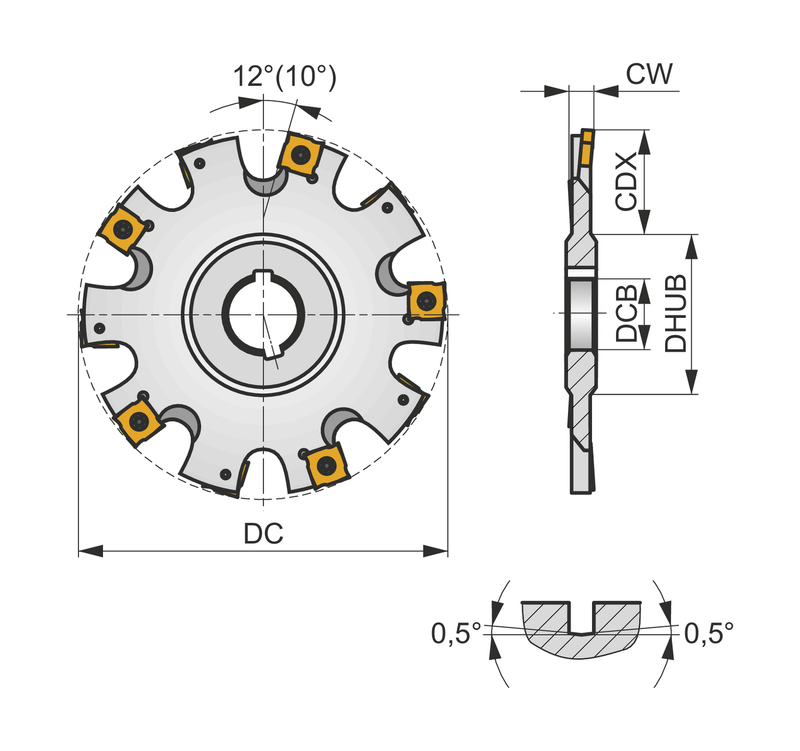

Dimensions
Cutting Diameter — in (DC)3.937"
Cutting Diameter — mm (DC)100.0 mm
Number of Flutes (NOF)10
Tool Information
Tool DesignS90SN
ShankFraise à surfacer-dresser DIN 8030 – fraise-scie
Direction of ToolGauche
Reference Numbers
EDP Number6758374
EAN3603602937209
File Type Download
100G10N-S90SN12N8 — 3D Model STP Download
100G10N-S90SN12N8 — 2D Model DXF Download
100G10N-S90SN12N8 — Line Drawing PDF Download
