125H12N-S90SN12N8
125H12N-S90SN12N8
125H12N-S90SN12N8

125H12N-S90SN12N8

UGC DOR6758377
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,737.00 CAD - $1,737.00 CAD
$1,737.00 CAD
$1,737.00 CAD - $1,737.00 CAD
$1,737.00 CAD

Vendu en lots de : 1

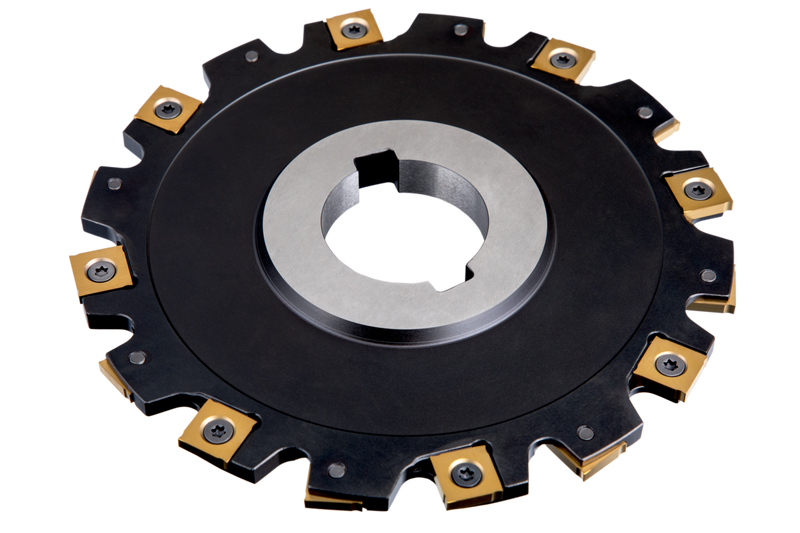

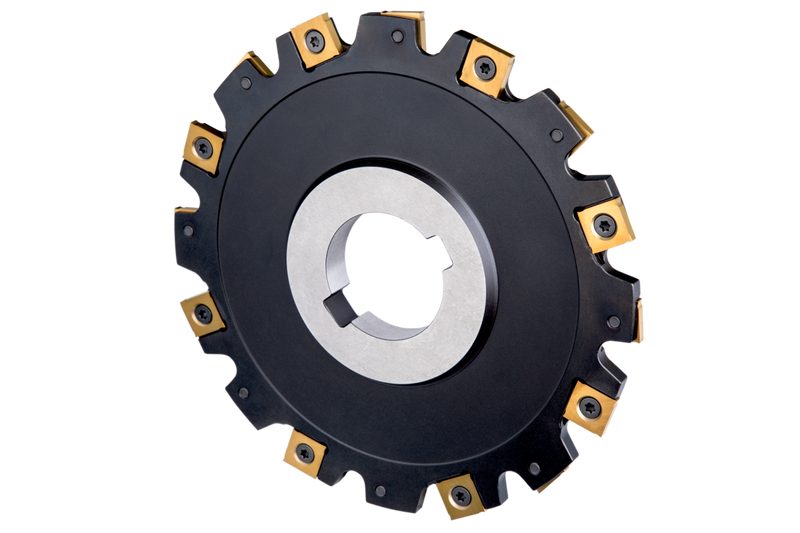

Fraise-scie à géométrie positive/négative utilisant 12 plaquettes doubles SNHQ 1204.., diamètre de coupe de 125 mm avec un angle d'attaque de 90° et un alésage de connexion de 40 mm selon DIN 8030, pour le fraisage de gorges profondes avec une largeur de coupe de 8 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125H12N-S90SN12N8
Product Number6758377
Product FamilyS90SN

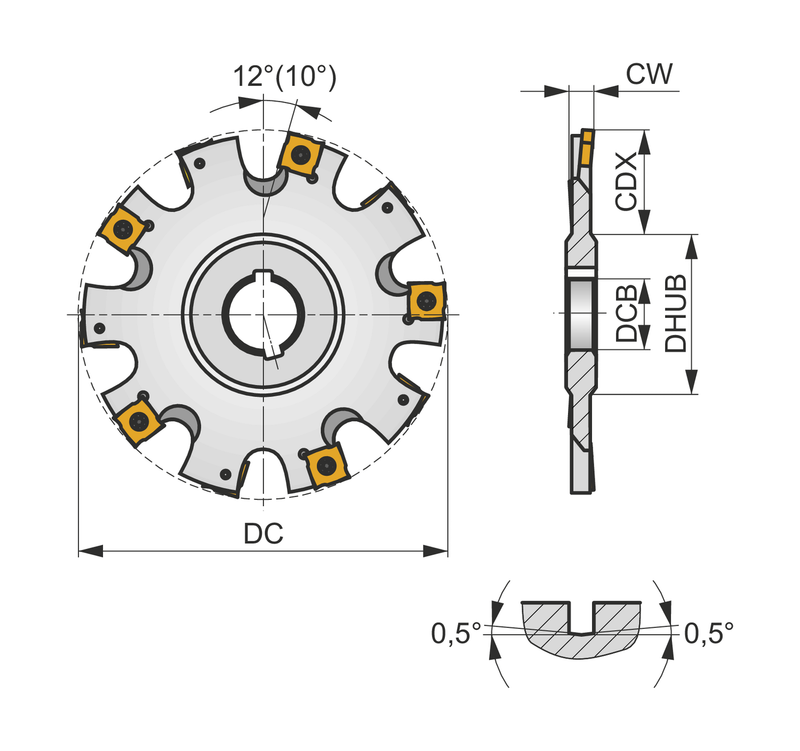

Dimensions
Cutting Diameter — in (DC)4.921"
Cutting Diameter — mm (DC)125.0 mm
Number of Flutes (NOF)12
Tool Information
Tool DesignS90SN
ShankFraise-scie DIN 8030 – Fraise deux tailles
Direction of ToolD'accord
Reference Numbers
EDP Number6758377
EAN3603602937230
File Type Download
125H12N-S90SN12N8 — 3D Model STP Download
125H12N-S90SN12N8 — 2D Model DXF Download
125H12N-S90SN12N8 — Line Drawing PDF Download
