160H16N-S90SN12N10
160H16N-S90SN12N10
160H16N-S90SN12N10

160H16N-S90SN12N10

UGC DOR6758381
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,145.00 CAD - $2,145.00 CAD
$2,145.00 CAD
$2,145.00 CAD - $2,145.00 CAD
$2,145.00 CAD

Vendu en lots de : 1

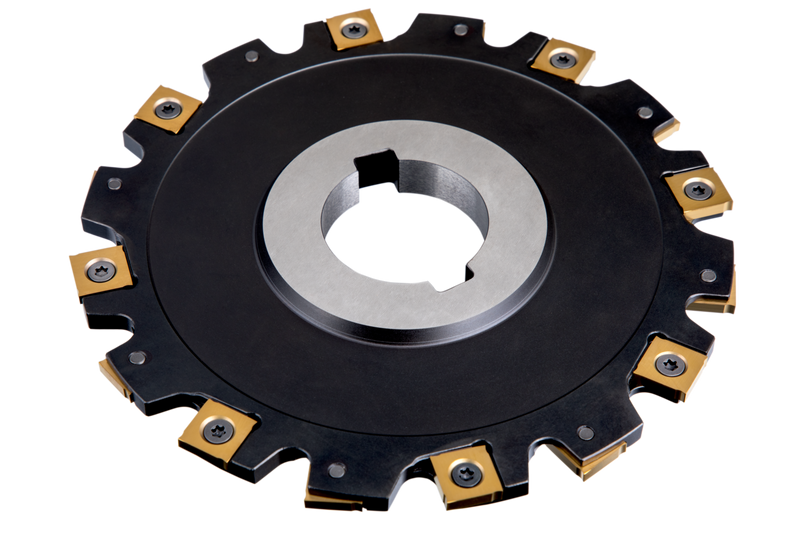

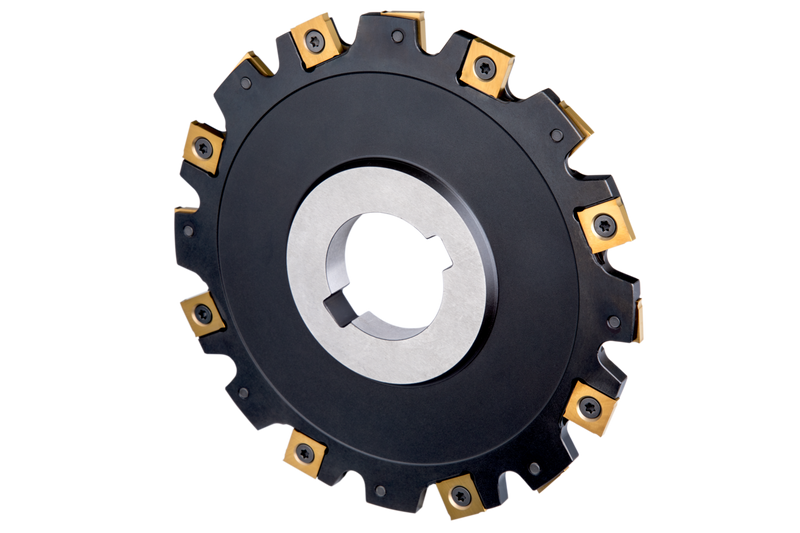

Fraise à disque à géométrie positive/négative qui utilise 16 plaquettes double face SNHQ 1205..., diamètre de coupe 160 mm avec un angle d'attaque de 90° et un alésage de connexion de 40 mm selon la norme DIN 8030, pour le fraisage de rainures profondes avec une largeur de coupe de 10 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)160H16N-S90SN12N10
Product Number6758381
Product FamilyS90SN

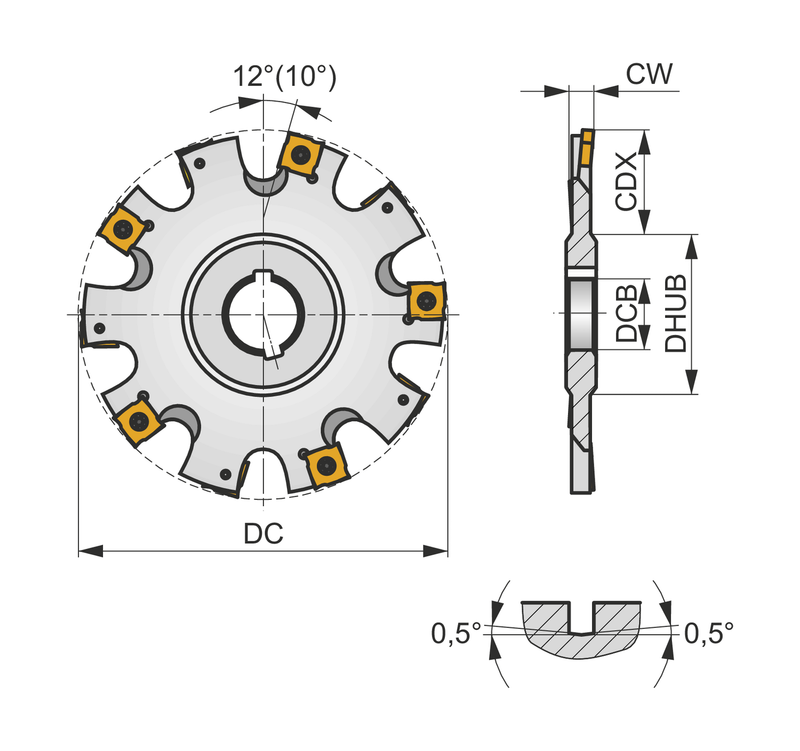

Dimensions
Cutting Diameter — in (DC)6.299"
Cutting Diameter — mm (DC)160.0 mm
Number of Flutes (NOF)16
Tool Information
Tool DesignS90SN
ShankFraise-scie DIN 8030 – fraise disque
Direction of ToolD'accord
Reference Numbers
EDP Number6758381
EAN3603602937278
File Type Download
160H16N-S90SN12N10 — 3D Model STP Download
160H16N-S90SN12N10 — 2D Model DXF Download
160H16N-S90SN12N10 — Line Drawing PDF Download
