MTJNR 2020 K 16
MTJNR 2020 K 16
MTJNR 2020 K 16

MTJNR 2020 K 16

UGC DOR6758418
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$155.00 CAD - $155.00 CAD
$155.00 CAD
$155.00 CAD - $155.00 CAD
$155.00 CAD

Vendu en lots de : 1

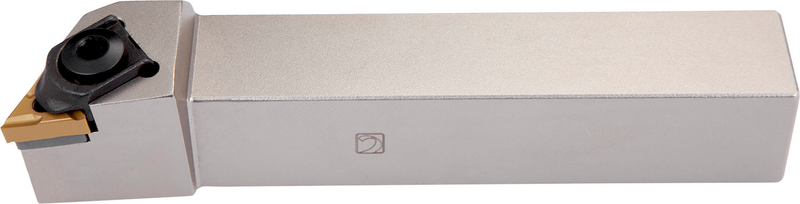

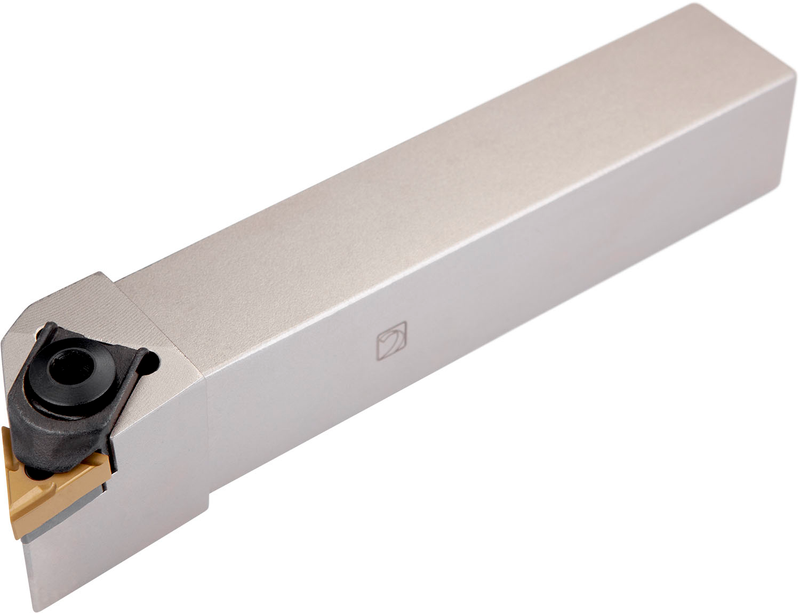

Outil de tournage multi-verrouillage pour plaquette triangulaire négative avec diamètre de cercle inscrit de 9,525 mm, 4,76 mm d'épaisseur (désignation ISO TN.. 1604..), coupe à droite à 93° avec corps déporté, hauteur d'outil de 20 mm x largeur de 20 mm x longueur de 125 mm pour le chanfreinage, le tournage conique, le copiage unidirectionnel et multidirectionnel et le tournage longitudinal avec ou sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)MTJNR 2020 K 16
Product Number6758418
Product FamilyMTJN(RL) EXT

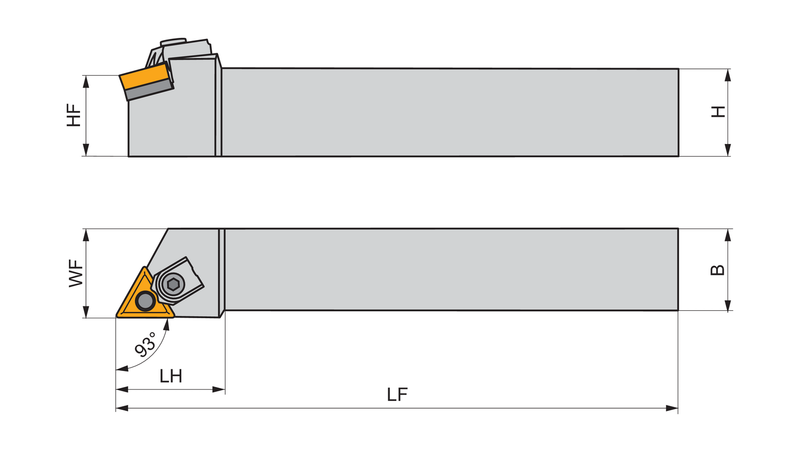

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6758418
EAN3603602937643
File Type Download
MTJNR 2020 K 16 — 3D Model STP Download
MTJNR 2020 K 16 — 2D Model DXF Download
MTJNR 2020 K 16 — Line Drawing PDF Download
