MTJNL 2020 K 16
MTJNL 2020 K 16
MTJNL 2020 K 16

MTJNL 2020 K 16

UGC DOR6758419
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$155.00 CAD - $155.00 CAD
$155.00 CAD
$155.00 CAD - $155.00 CAD
$155.00 CAD

Vendu en lots de : 1

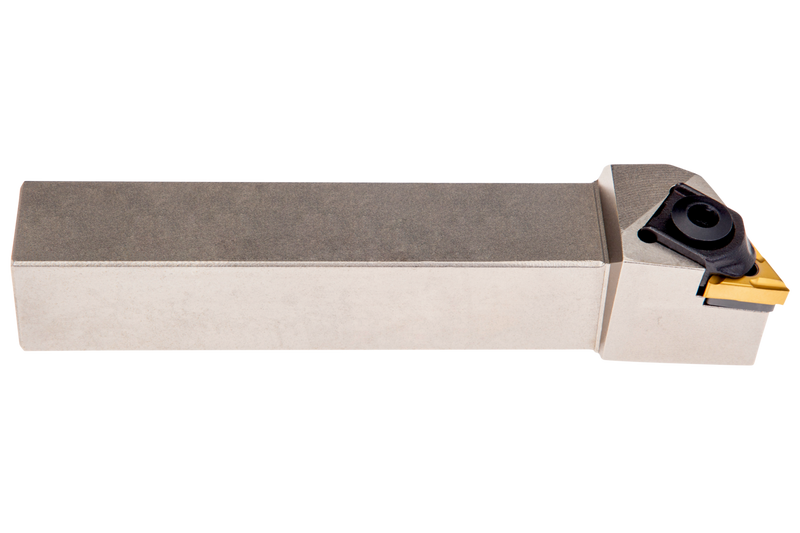

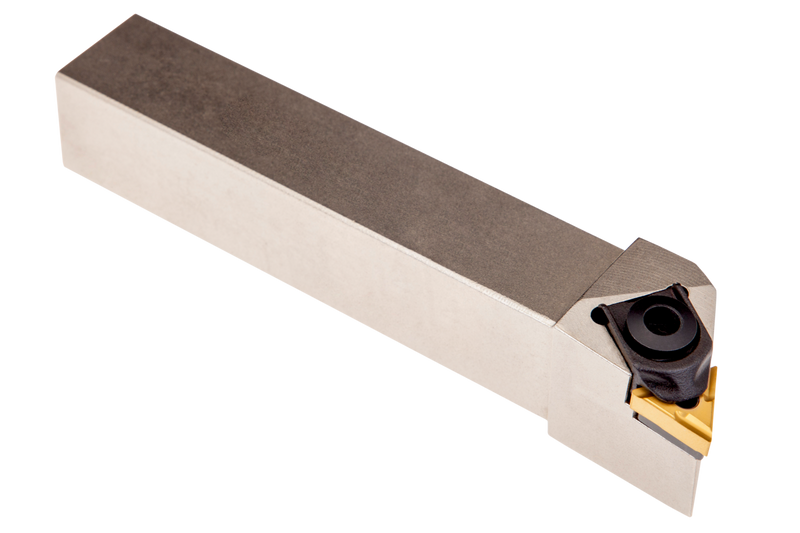

Outil de tournage multi-blocage pour insert négatif triangulaire avec diamètre de cercle inscrit de 9,525 mm, épaisseur de 4,76 mm (désignation ISO TN.. 1604.. ), coupe à gauche 93° avec corps déporté, hauteur d'outil 20 mm x largeur 20 mm x longueur 125 mm pour le chanfreinage, le tournage conique, le copiage unidirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)MTJNL 2020 K 16
Product Number6758419
Product FamilyMTJN(RL) EXT
Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6758419
EAN3603602937650
File Type Download

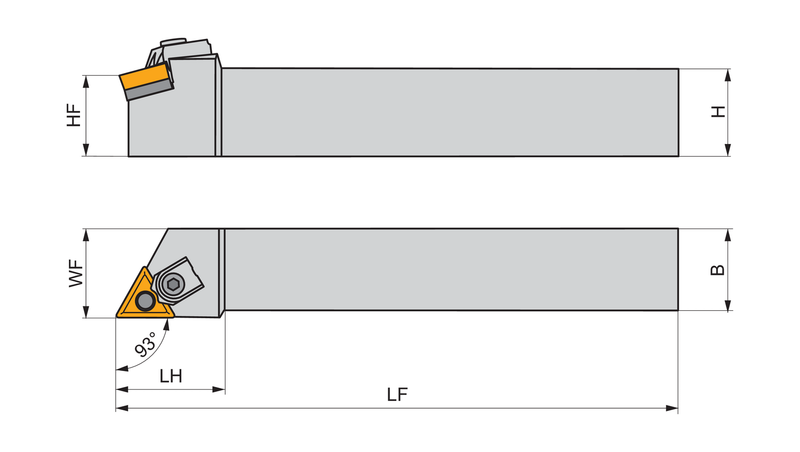

MTJNL 2020 K 16 — Line Drawing PDF Download
