SRDCN 3225 P 12-M
SRDCN 3225 P 12-M
SRDCN 3225 P 12-M

SRDCN 3225 P 12-M

UGC DOR6758437
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$196.00 CAD - $196.00 CAD
$196.00 CAD
$196.00 CAD - $196.00 CAD
$196.00 CAD

Vendu en lots de : 1

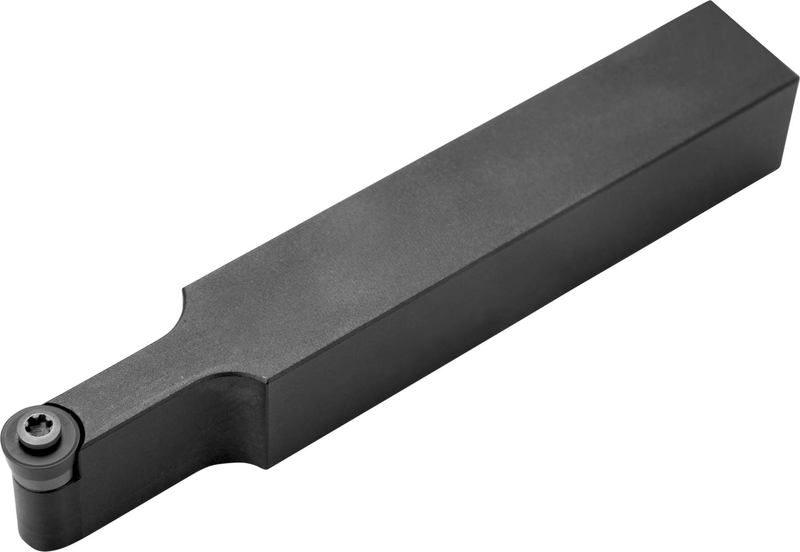

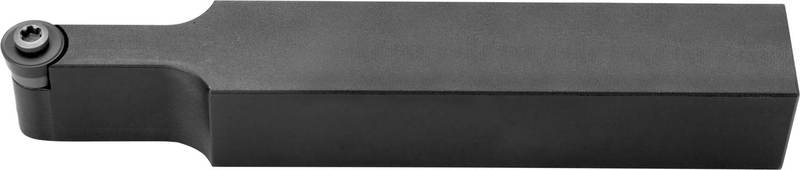

Outil de tournage à bride de serrage pour plaquette ronde positive de 12 mm de diamètre, 4,76 mm d'épaisseur (désignation ISO RC.. 1204MO), main neutre, coupe latérale et frontale avec queue droite, hauteur d'outil de 32 mm x largeur de 25 mm x longueur de 170 mm pour tournage conique, tournage de copie unidirectionnel et multidirectionnel et tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SRDCN 3225 P 12-M
Product Number6758437
Product FamilySRDCN EXT

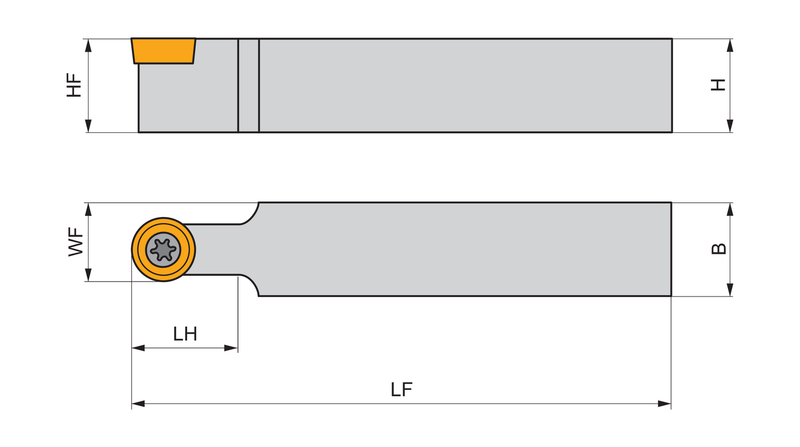

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6758437
EAN3603602937834
File Type Download
SRDCN 3225 P 12-M — 3D Model STP Download
SRDCN 3225 P 12-M — Line Drawing PDF Download
