SRDCN 3225 P 16-M
SRDCN 3225 P 16-M
SRDCN 3225 P 16-M

SRDCN 3225 P 16-M

UGC DOR6758444
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$196.00 CAD - $196.00 CAD
$196.00 CAD
$196.00 CAD - $196.00 CAD
$196.00 CAD

Vendu en lots de : 1

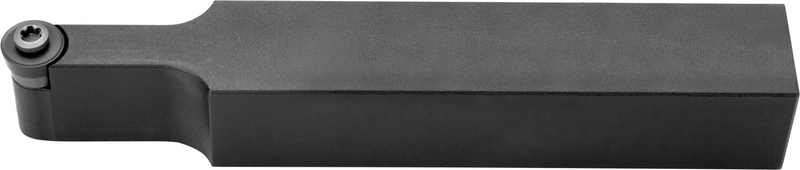

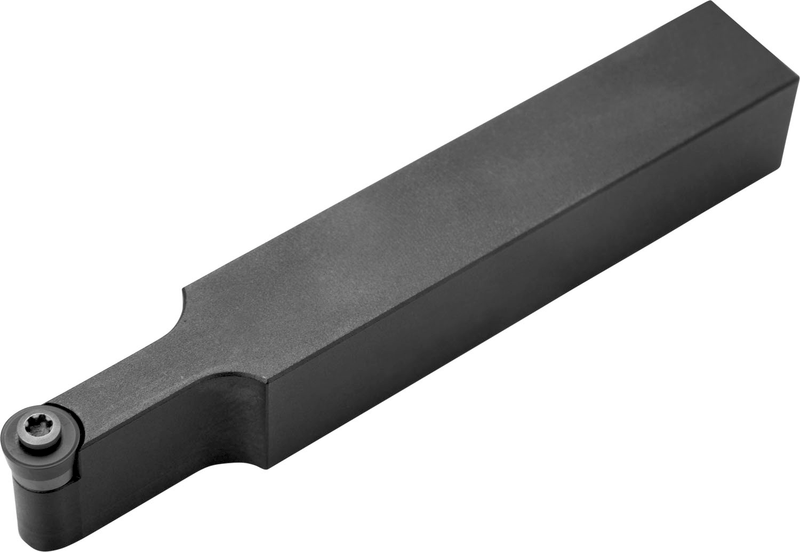

Outil de tournage à bride à vis pour le maintien d'un insert rond positif d'un diamètre de 16 mm et d'une épaisseur de 6,35 mm (désignation ISO RC.. 1606MO), main neutre et coupe frontale avec queue droite, hauteur d'outil de 32 mm x largeur de 25 mm x longueur de 170 mm pour le tournage conique, le tournage de copiage unidirectionnel et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SRDCN 3225 P 16-M
Product Number6758444
Product FamilySRDCN EXT

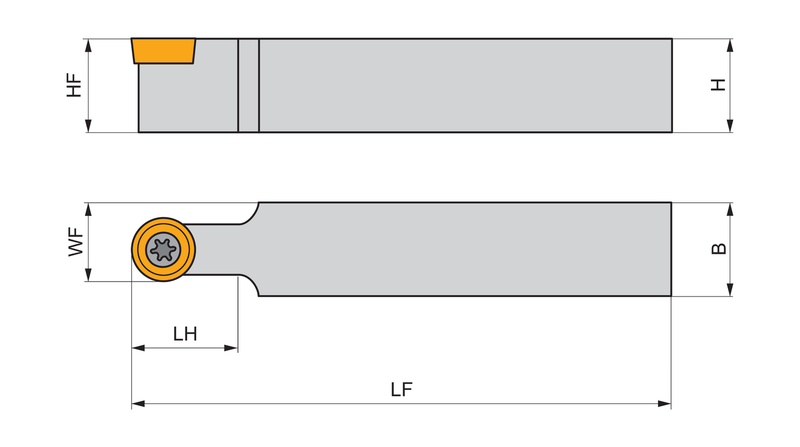

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6758444
EAN3603602937902
File Type Download
SRDCN 3225 P 16-M — 3D Model STP Download
SRDCN 3225 P 16-M — Line Drawing PDF Download
