25A3R042B25-SAP10D-C
25A3R042B25-SAP10D-C
25A3R042B25-SAP10D-C

25A3R042B25-SAP10D-C

UGC DOR6758448
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$555.00 CAD - $555.00 CAD
$555.00 CAD
$555.00 CAD - $555.00 CAD
$555.00 CAD

Vendu en lots de : 1

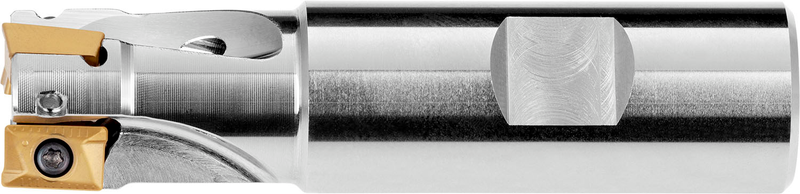

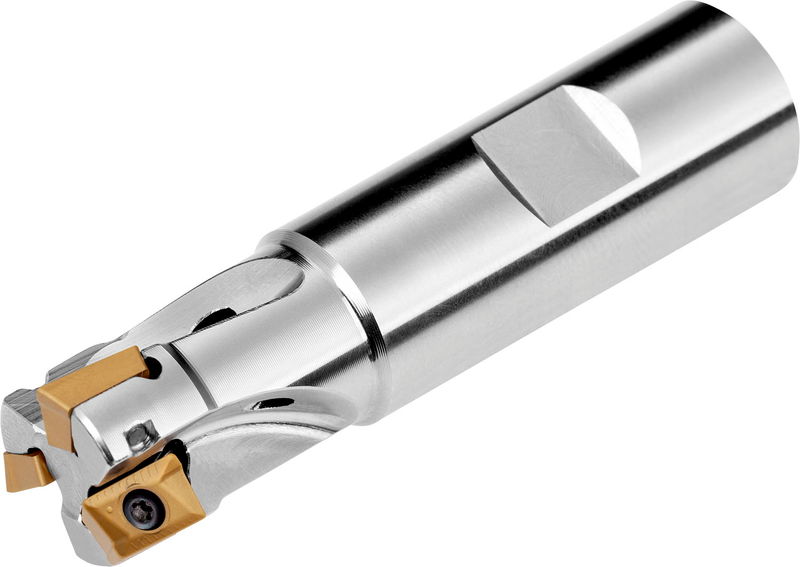

Fraise à épaulement à géométrie double positive qui utilise 3 plaquettes simple face APKT 1003.., diamètre de coupe de 25mm avec un angle d'attaque de 90° et une queue Weldon de 25mm selon DIN 1835B, longueur totale de 98mm, arrosage central pour le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 9,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25A3R042B25-SAP10D-C
Product Number6758448
Product FamilySAP10D
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm
Dimensions
Cutting Diameter — in (DC)0.984"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)3.858"
Overall Length — mm (OAL)98.0 mm
Usable Length — mm (LU)42.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSAP10D
ShankQueue Weldon DIN 1835B
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6758448
EAN3603602937940
File Type Download
25A3R042B25-SAP10D-C — 3D Model STP Download
25A3R042B25-SAP10D-C — 2D Model DXF Download

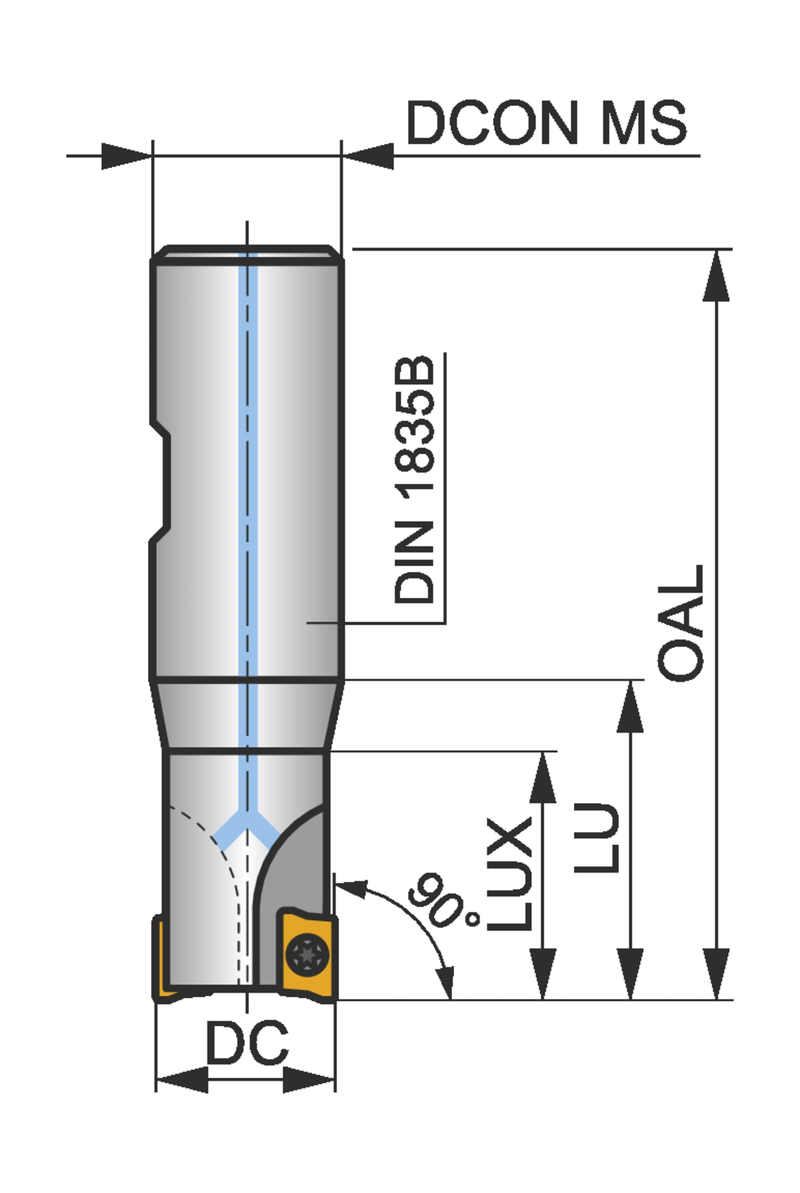

25A3R042B25-SAP10D-C — Line Drawing PDF Download
