200J18N-S90SN12N8
200J18N-S90SN12N8
200J18N-S90SN12N8

200J18N-S90SN12N8

UGC DOR6758454
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,482.00 CAD - $2,482.00 CAD
$2,482.00 CAD
$2,482.00 CAD - $2,482.00 CAD
$2,482.00 CAD

Vendu en lots de : 1

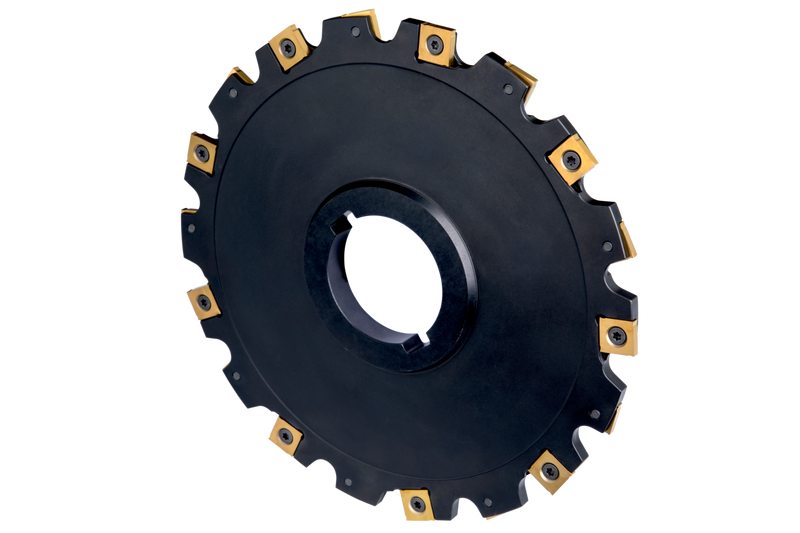

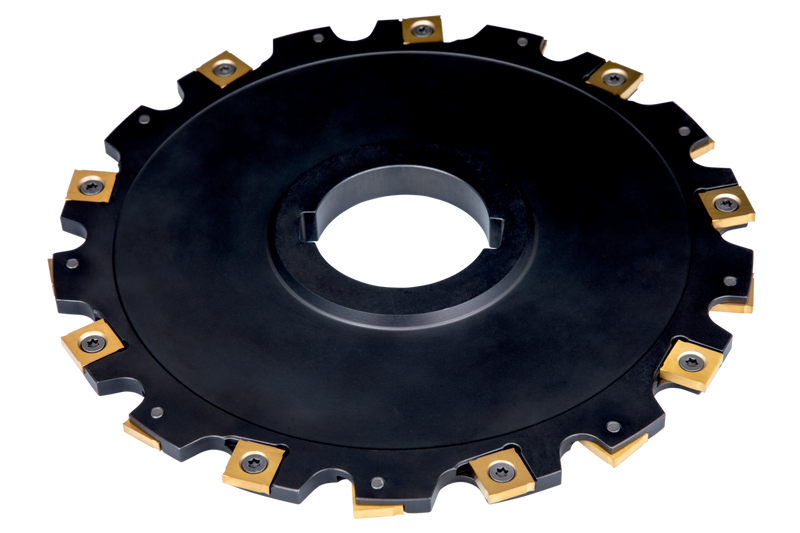

Fraise à disque à géométrie positive/négative utilisant 18 plaquettes double-face SNHQ 1204.., diamètre de coupe 200 mm avec angle d'attaque de 90° et alésage de connexion de 50 mm selon DIN 8030, pour le fraisage de rainures profondes avec une largeur de coupe de 8 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)200J18N-S90SN12N8
Product Number6758454
Product FamilyS90SN

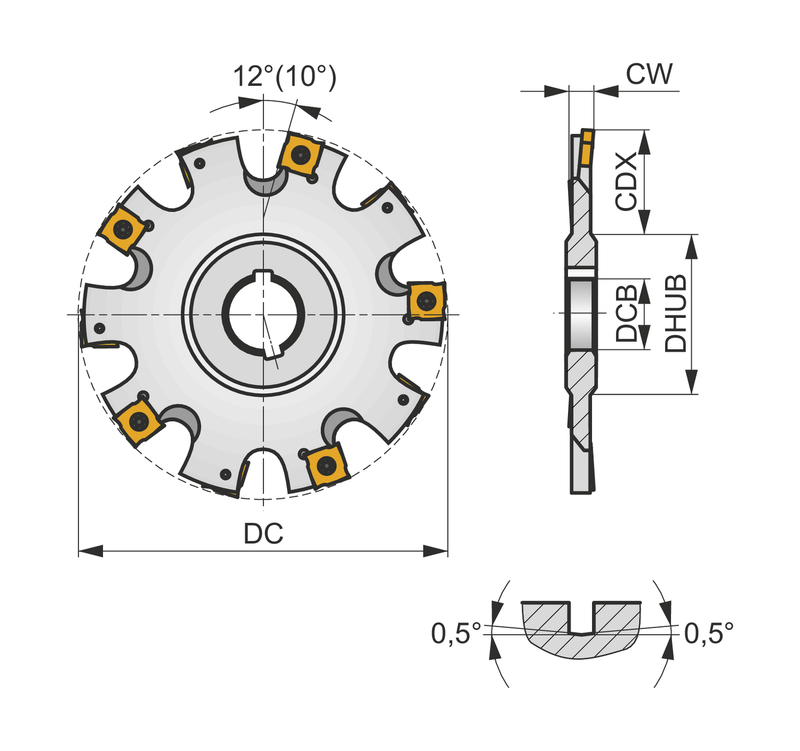

Dimensions
Cutting Diameter — in (DC)7.874"
Cutting Diameter — mm (DC)200.0 mm
Number of Flutes (NOF)18
Tool Information
Tool DesignS90SN
ShankFraise à surfacer-dresser DIN 8030 – fraise à disque
Direction of ToolD'accord
Reference Numbers
EDP Number6758454
EAN3603602938008
File Type Download
200J18N-S90SN12N8 — 3D Model STP Download
200J18N-S90SN12N8 — 2D Model DXF Download
200J18N-S90SN12N8 — Line Drawing PDF Download
