A32S-PWLNR 08
A32S-PWLNR 08
A32S-PWLNR 08

A32S-PWLNR 08

UGC DOR6758466
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$446.00 CAD - $446.00 CAD
$446.00 CAD
$446.00 CAD - $446.00 CAD
$446.00 CAD

Vendu en lots de : 1

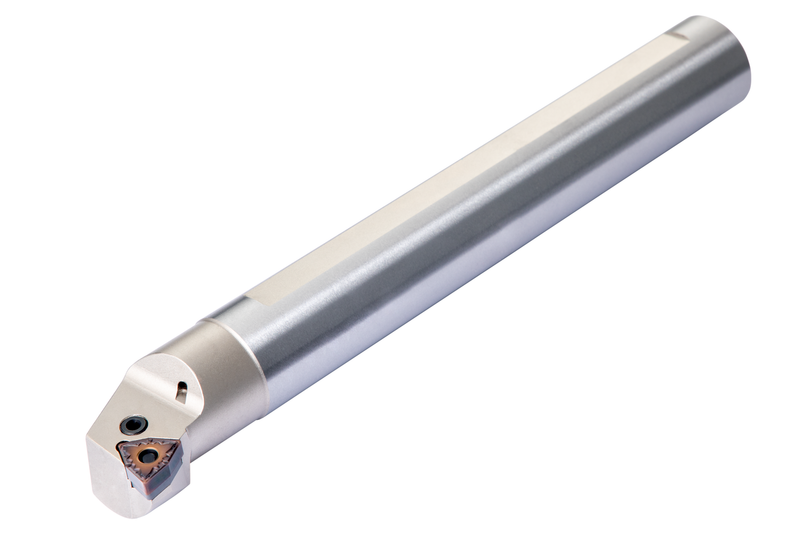

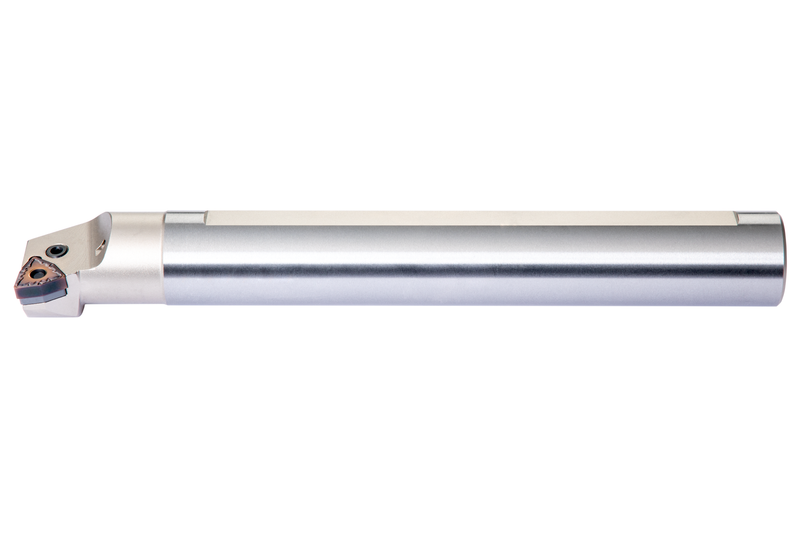

Barre d'alésage à levier pour plaquette trigone négative 80° avec diamètre de cercle inscrit de 12,7mm, 4,76mm d'épaisseur (désignation ISO WN.. 0804..), coupe à droite 95° latérale et frontale avec corps déporté, acier avec trou d'arrosage, diamètre 32mm x 250mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A32S-PWLNR 08
Product Number6758466
Product FamilyPWLN(RL) INT

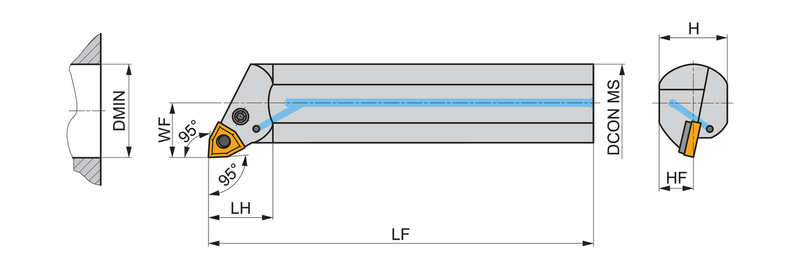

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)1.181 mm
Min. Bore Dia. — in (DMIN)1.535"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6758466
EAN3603602938121
File Type Download
A32S-PWLNR 08 — 3D Model STP Download
A32S-PWLNR 08 — 2D Model DXF Download
A32S-PWLNR 08 — Line Drawing PDF Download
