175C08R-F90TB27X
175C08R-F90TB27X
175C08R-F90TB27X

175C08R-F90TB27X

UGC DOR6758484
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,571.00 CAD - $2,571.00 CAD
$2,571.00 CAD
$2,571.00 CAD - $2,571.00 CAD
$2,571.00 CAD

Vendu en lots de : 1

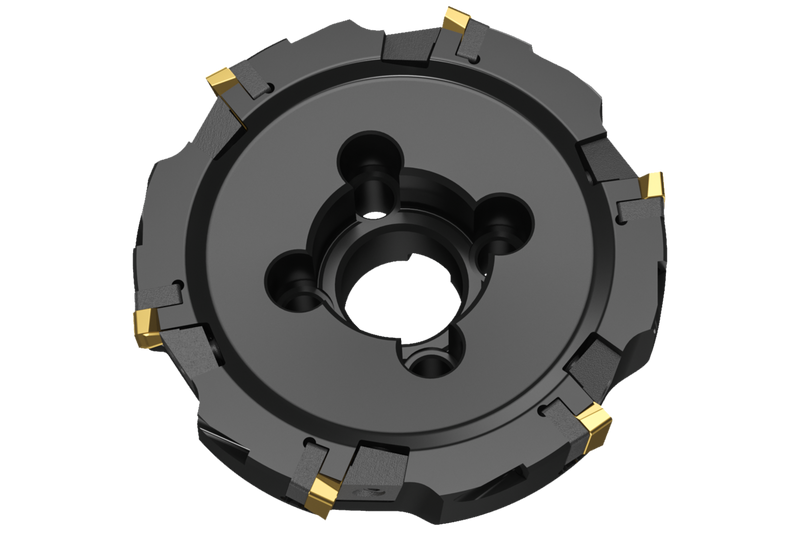

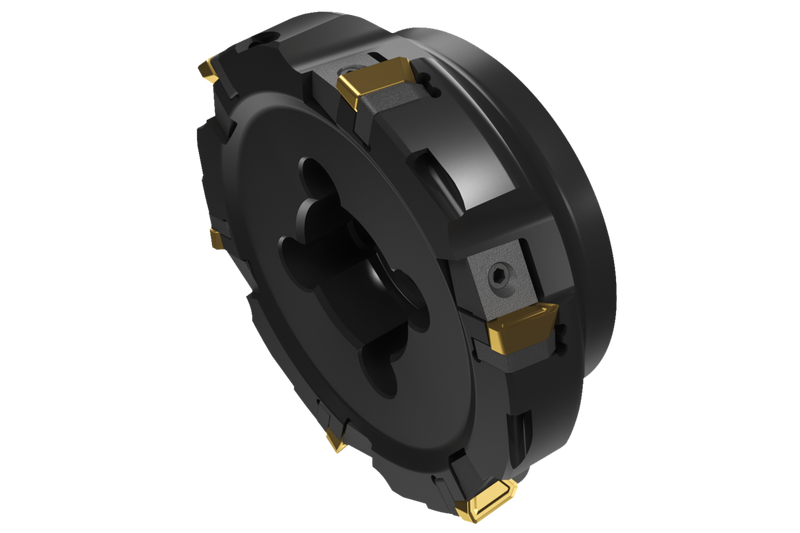

Fraise à surfacer-équarrir à géométrie positive/négative qui utilise 8 plaquettes unilatérales TBMR 2707PZ.., diamètre de coupe de 175 mm avec angle d'attaque de 90° et alésage de raccordement de 40 mm selon DIN 8030-C, longueur de dépassement de 63 mm et pas différentiel pour le surfaçage-équerrage peu profond avec une profondeur de coupe maximale de 18,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)175C08R-F90TB27X
Product Number6758484
Product FamilyFTB27X
Insert Geometry
Depth of Cut Max — mm (APMX)18.0 mm

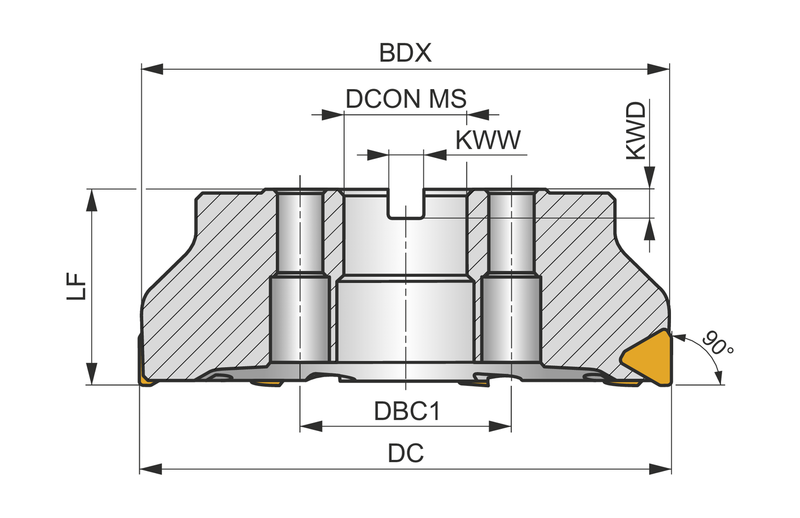

Dimensions
Cutting Diameter — in (DC)6.89"
Cutting Diameter — mm (DC)175.0 mm
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignFTB27X
ShankFraise à surfacer-dresser DIN 8030 C
Direction of ToolGauche
Reference Numbers
EDP Number6758484
EAN3603602938305
File Type Download
175C08R-F90TB27X — 3D Model STP Download
175C08R-F90TB27X — 2D Model DXF Download
175C08R-F90TB27X — Line Drawing PDF Download
