25A2R043E03-SAD16E-C
25A2R043E03-SAD16E-C
25A2R043E03-SAD16E-C

25A2R043E03-SAD16E-C

UGC DOR6758505
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$332.00 CAD - $332.00 CAD
$332.00 CAD
$332.00 CAD - $332.00 CAD
$332.00 CAD

Vendu en lots de : 1

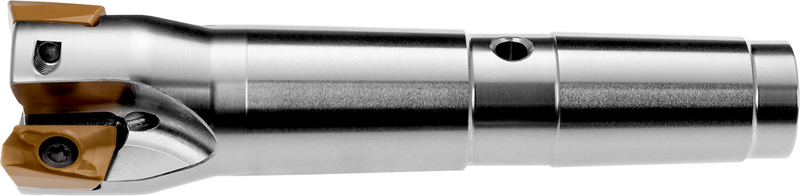

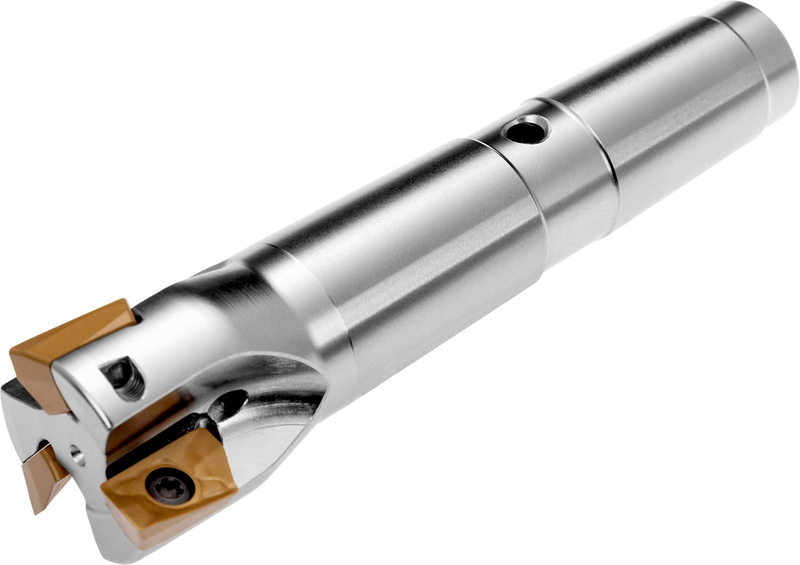

Fraise à épaulement à géométrie positive/négative qui utilise 2 plaquettes simple face ADMX 1606... ou ADEX 1606..., diamètre de coupe de 25 mm avec un angle d'attaque de 90° et une queue conique Morse MT 3 selon DIN 228-1A, longueur fonctionnelle de 38 mm et longueur totale de 98 mm, arrosage interne pour le fraisage en copiage, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, l'interpolation hélicoïdale, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 13,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25A2R043E03-SAD16E-C
Product Number6758505
Product FamilySAD16E
Insert Geometry
Depth of Cut Max — mm (APMX)13.0 mm

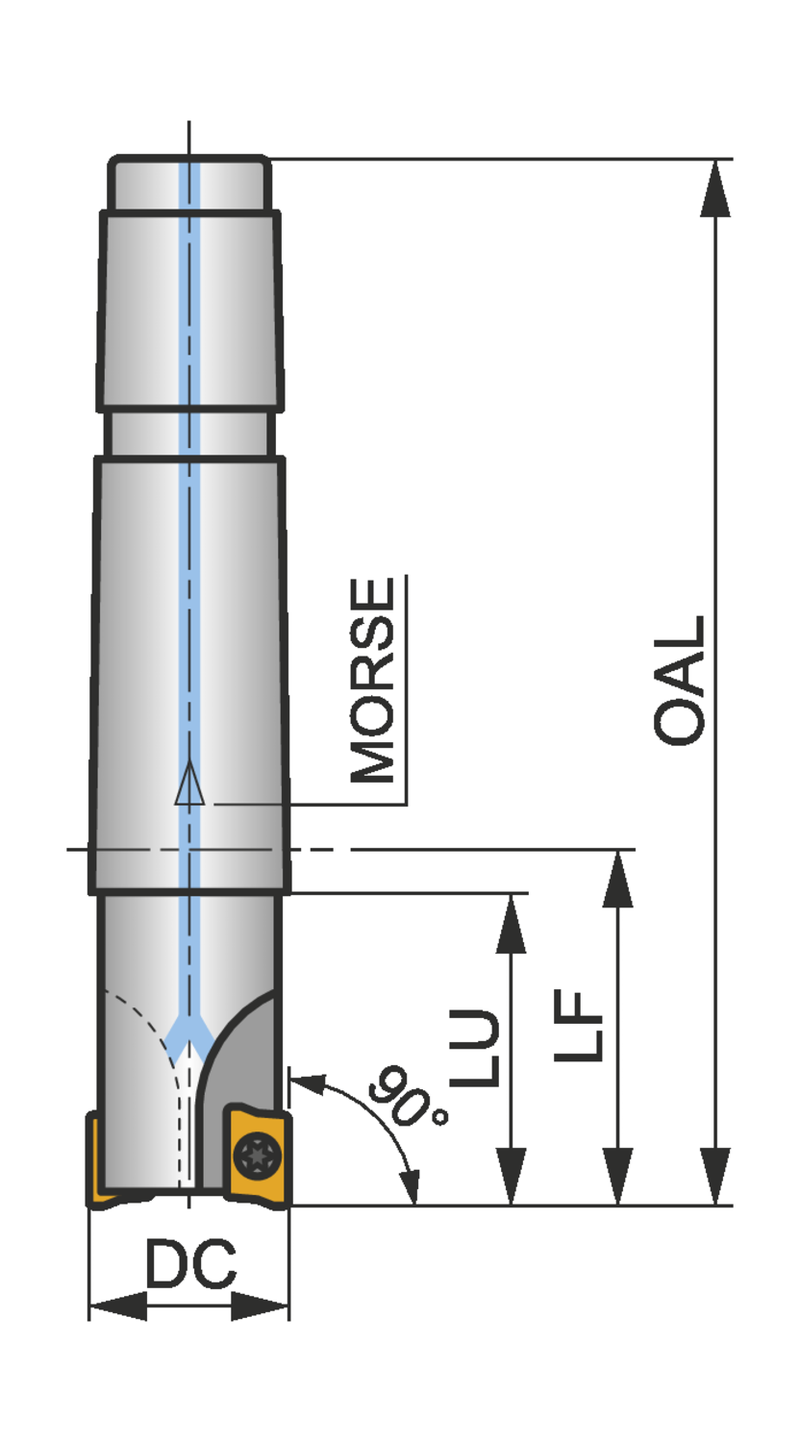

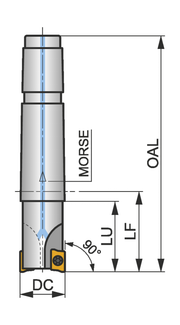

Dimensions
Cutting Diameter — in (DC)0.984"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)3.858"
Overall Length — mm (OAL)98.0 mm
Usable Length — mm (LU)38.0 mm
Functional Length — mm (LF)43.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSAD16E
ShankQueue conique Morse DIN 228-1
Direction of ToolNeutre
Through Coolant Yes
Reference Numbers
EDP Number6758505
EAN3603602938510
File Type Download
25A2R043E03-SAD16E-C — 3D Model STP Download
25A2R043E03-SAD16E-C — 2D Model DXF Download
25A2R043E03-SAD16E-C — Line Drawing PDF Download
