32A3R043E03-SAD16E-C
32A3R043E03-SAD16E-C
32A3R043E03-SAD16E-C

32A3R043E03-SAD16E-C

UGC DOR6758506
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$381.00 CAD - $381.00 CAD
$381.00 CAD
$381.00 CAD - $381.00 CAD
$381.00 CAD

Vendu en lots de : 1

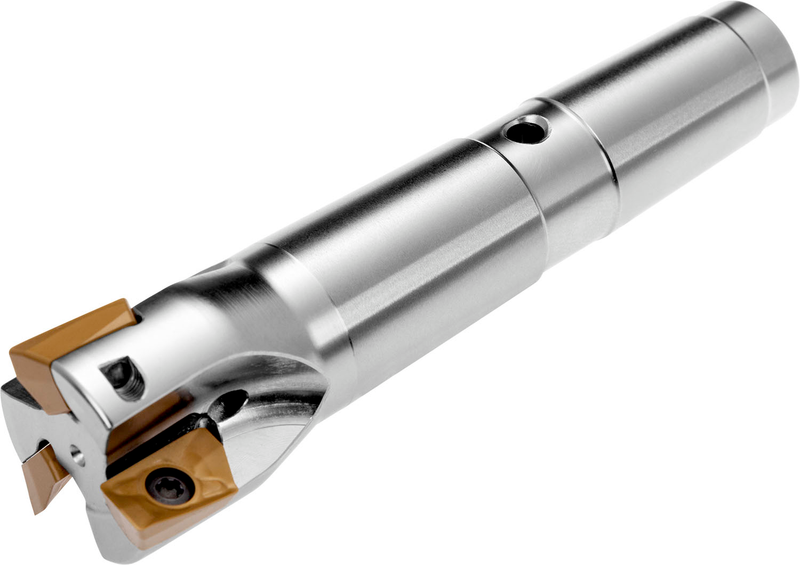

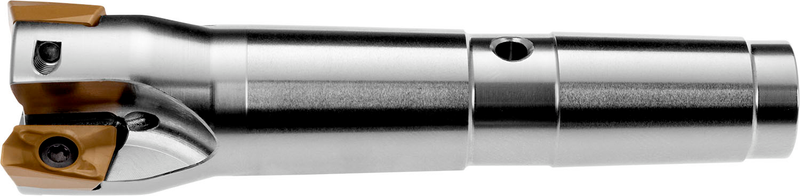

Fraise à épaulement à géométrie positive/négative qui utilise 3 plaquettes simple face ADMX 1606.. ou ADEX 1606.., diamètre de coupe 32mm avec un angle d'attaque de 90° et une queue conique Morse MT 3 selon DIN 228-1A, longueur fonctionnelle de 38mm et longueur totale de 100mm, arrosage central pour le fraisage de copiage, le fraisage d'épaulements peu profonds, le fraisage de fentes peu profondes, l'interpolation hélicoïdale, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 13.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32A3R043E03-SAD16E-C
Product Number6758506
Product FamilySAD16E
Insert Geometry
Depth of Cut Max — mm (APMX)13.0 mm

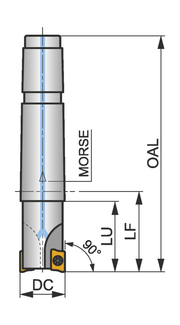

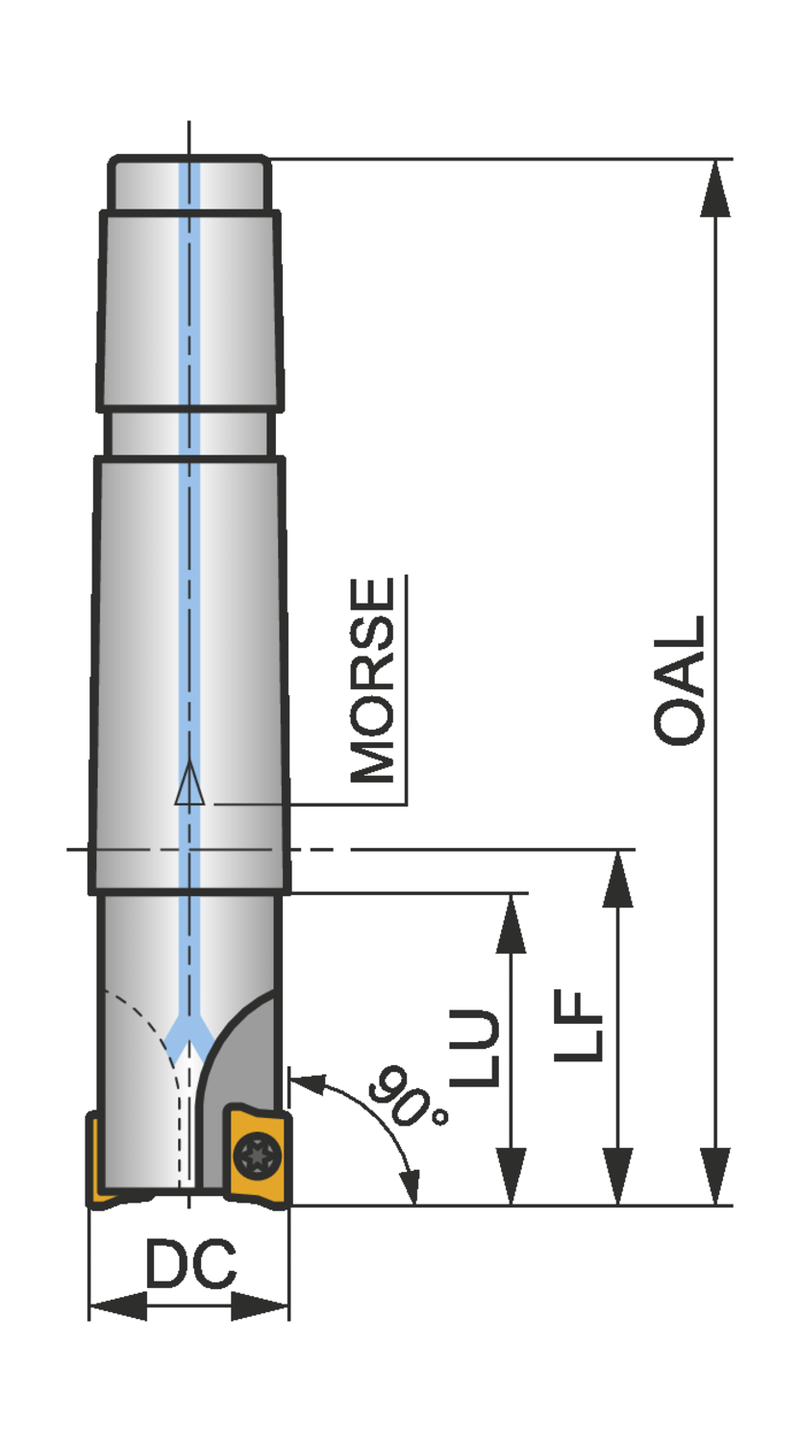

Dimensions
Cutting Diameter — in (DC)1.26"
Cutting Diameter — mm (DC)32.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)38.0 mm
Functional Length — mm (LF)43.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSAD16E
ShankQueue de cône Morse DIN 228-1
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6758506
EAN3603602938527
File Type Download
32A3R043E03-SAD16E-C — 3D Model STP Download
32A3R043E03-SAD16E-C — 2D Model DXF Download
32A3R043E03-SAD16E-C — Line Drawing PDF Download
