PCBNR 4040 S 19
PCBNR 4040 S 19
PCBNR 4040 S 19

PCBNR 4040 S 19

UGC DOR6758530
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$295.00 CAD - $295.00 CAD
$295.00 CAD
$295.00 CAD - $295.00 CAD
$295.00 CAD

Vendu en lots de : 1

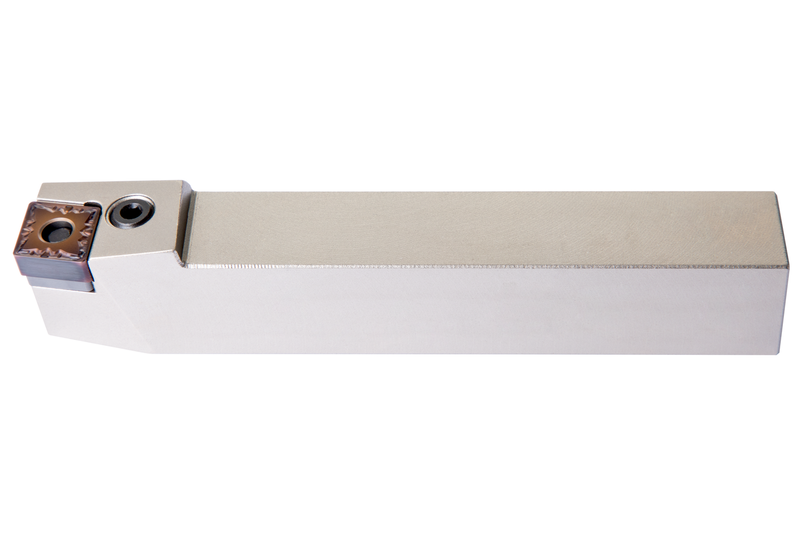

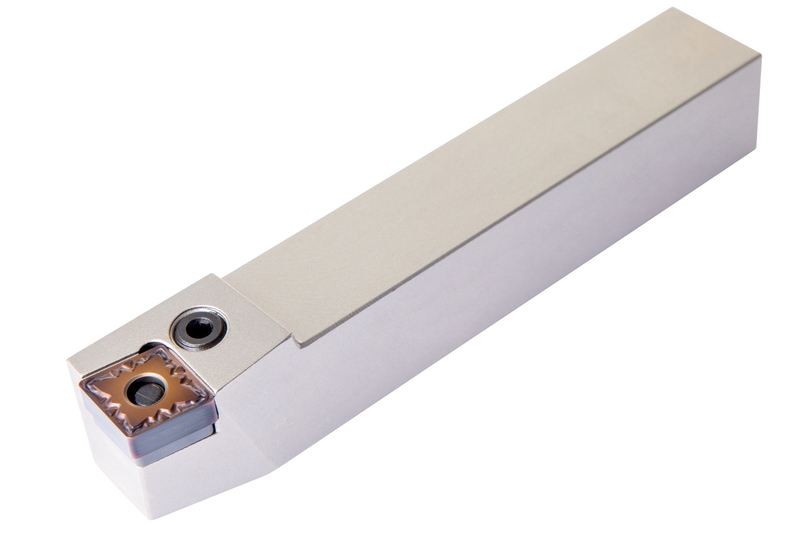

Outil de tournage à levier pour plaquette négative rhomboïdale à 80° avec un diamètre de cercle inscrit de 19,05 mm, une épaisseur de 6,35 mm (désignation ISO CN... 1906...), coupe latérale droite à 75° avec queue droite, hauteur d'outil de 40 mm x largeur de 40 mm x longueur de 250 mm pour le tournage conique et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PCBNR 4040 S 19
Product Number6758530
Product FamilyPCBN(RL) EXT

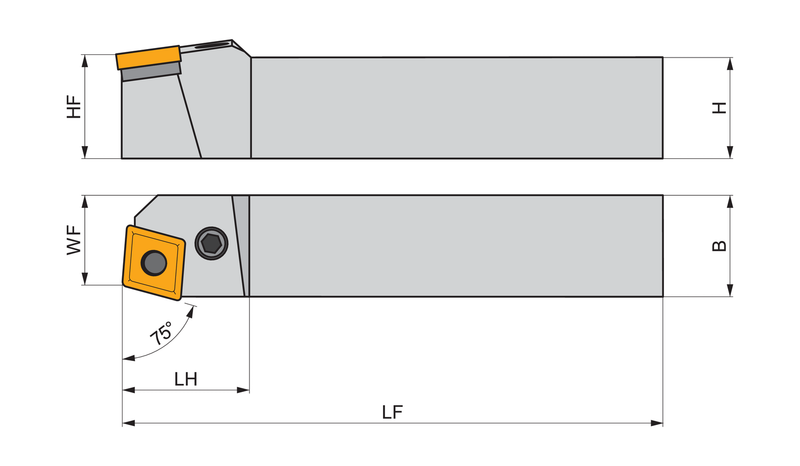

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Shank Height — mm (H)1.575 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6758530
EAN3603602938763
File Type Download
PCBNR 4040 S 19 — 3D Model STP Download
PCBNR 4040 S 19 — 2D Model DXF Download
PCBNR 4040 S 19 — Line Drawing PDF Download
