PCKNR 4040 S 19
PCKNR 4040 S 19
PCKNR 4040 S 19

PCKNR 4040 S 19

UGC DOR6758532
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$295.00 CAD - $295.00 CAD
$295.00 CAD
$295.00 CAD - $295.00 CAD
$295.00 CAD

Vendu en lots de : 1

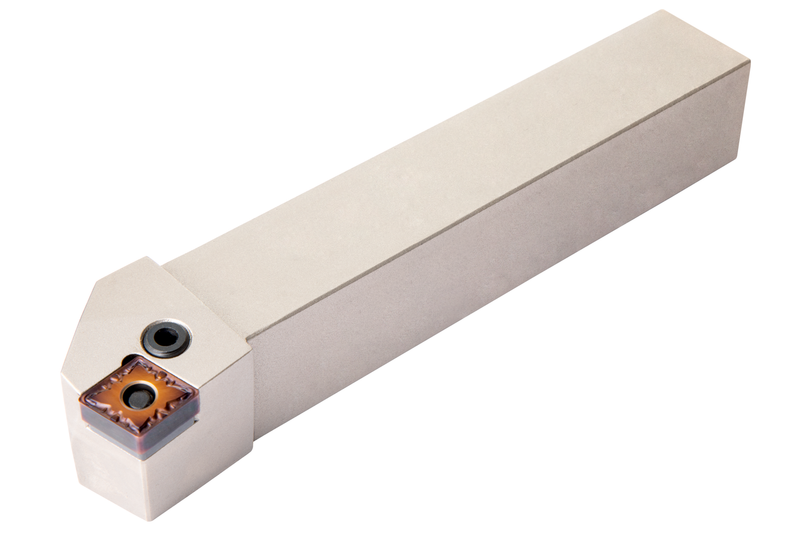

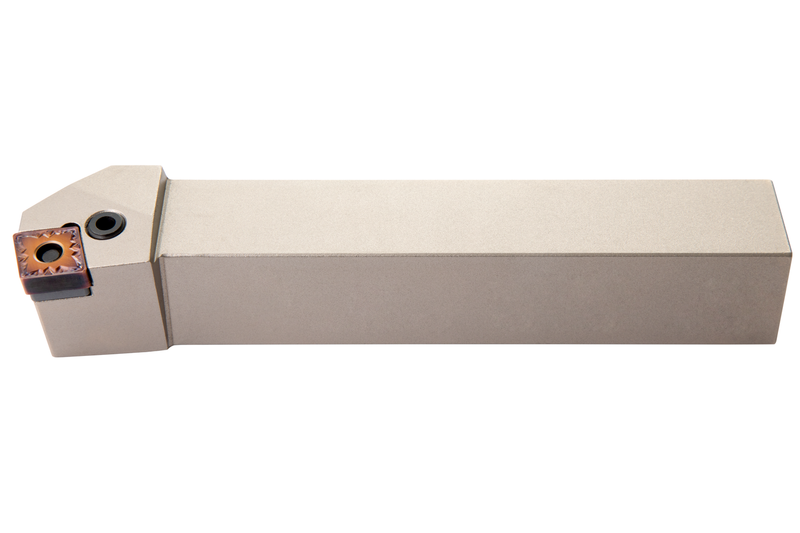

Porte-outil à levier pour plaquette négative rhomboïde à 80° avec un cercle inscrit de 19,05 mm de diamètre, 6,35 mm d'épaisseur (désignation ISO CN.. 1906..), coupe à droite 75° avec queue déportée, hauteur d'outil 40 mm x largeur 40 mm x longueur 250 mm pour tournage frontal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PCKNR 4040 S 19
Product Number6758532
Product FamilyEXT. PCKN(RL)

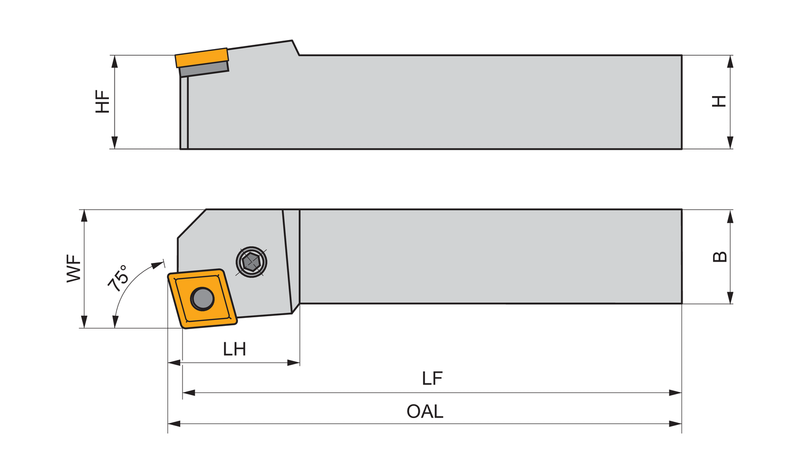

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Shank Height — mm (H)1.575 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6758532
EAN3603602938787
File Type Download
PCKNR 4040 S 19 — 3D Model STP Download
PCKNR 4040 S 19 — 2D Model DXF Download
PCKNR 4040 S 19 — Line Drawing PDF Download
