PRSCR 4040 S 25
PRSCR 4040 S 25
PRSCR 4040 S 25

PRSCR 4040 S 25

UGC DOR6758534
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$295.00 CAD - $295.00 CAD
$295.00 CAD
$295.00 CAD - $295.00 CAD
$295.00 CAD

Vendu en lots de : 1

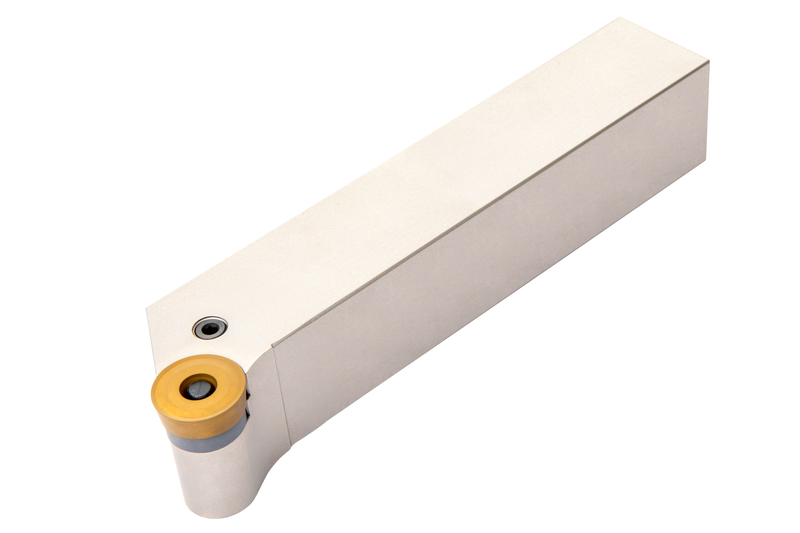

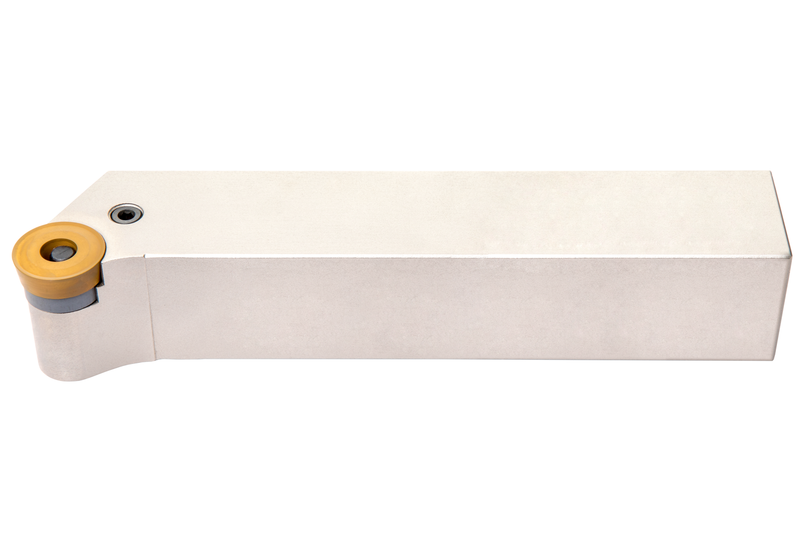

Outil de tournage à levier pour plaquette positive ronde de 25 mm de diamètre et 7,94 mm d'épaisseur (désignation ISO RCMX 2507MO ), coupe à droite avec queue déportée, hauteur d'outil 40 mm x largeur 40 mm x longueur 250 mm pour tournage conique, tournage de copie unidirectionnel et multidirectionnel, dressage sans épaulement et chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PRSCR 4040 S 25
Product Number6758534
Product FamilyPRSC(RL) EXT

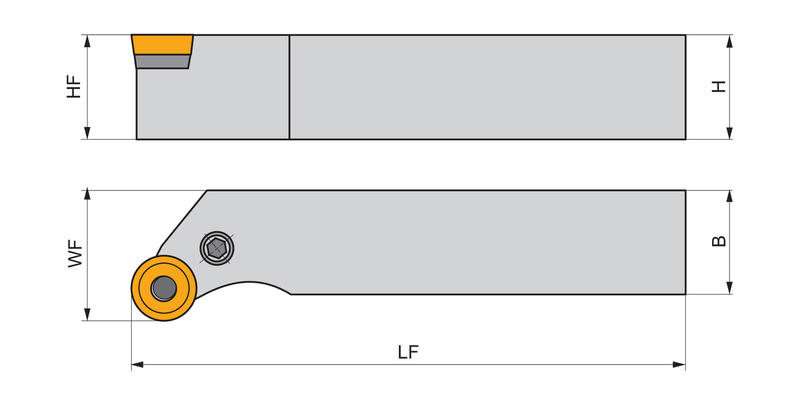

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Shank Height — mm (H)1.575 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6758534
EAN3603602938800
File Type Download
PRSCR 4040 S 25 — 3D Model STP Download
PRSCR 4040 S 25 — 2D Model DXF Download
PRSCR 4040 S 25 — Line Drawing PDF Download
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
