PSDNN 4040 S 25
PSDNN 4040 S 25
PSDNN 4040 S 25

PSDNN 4040 S 25

UGC DOR6758536
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$295.00 CAD - $295.00 CAD
$295.00 CAD
$295.00 CAD - $295.00 CAD
$295.00 CAD

Vendu en lots de : 1

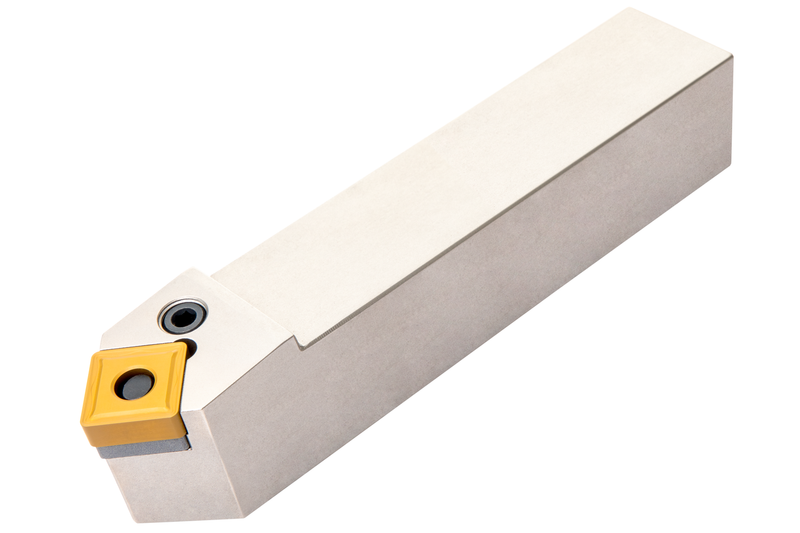

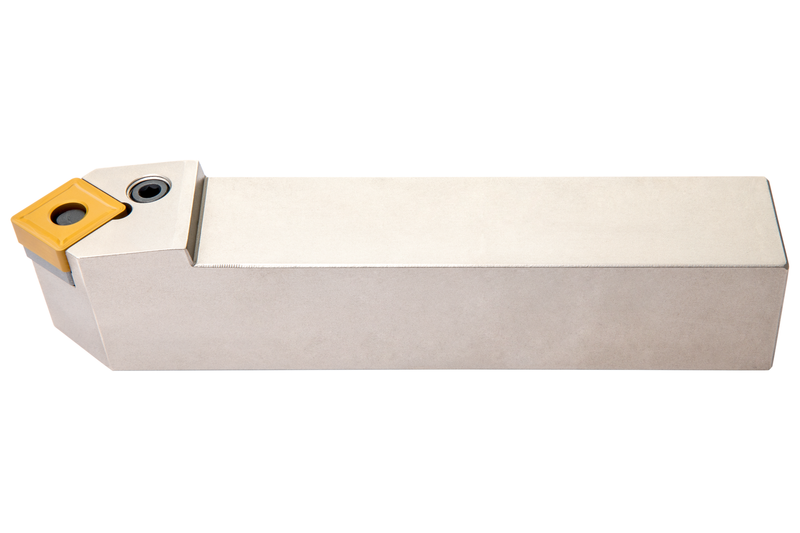

Outil de tournage à levier pour la fixation d'un insert carré négatif avec un diamètre de cercle inscrit de 25,4 mm, 7,94 mm d'épaisseur (désignation ISO SN.. 2507..), main neutre, coupe latérale à 45° avec queue cylindrique, hauteur d'outil de 40 mm x largeur de 40 mm x longueur de 250 mm pour le chanfreinage, le tournage conique, le tournage de copiage unidirectionnel et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSDNN 4040 S 25
Product Number6758536
Product FamilyRCDPP EXT

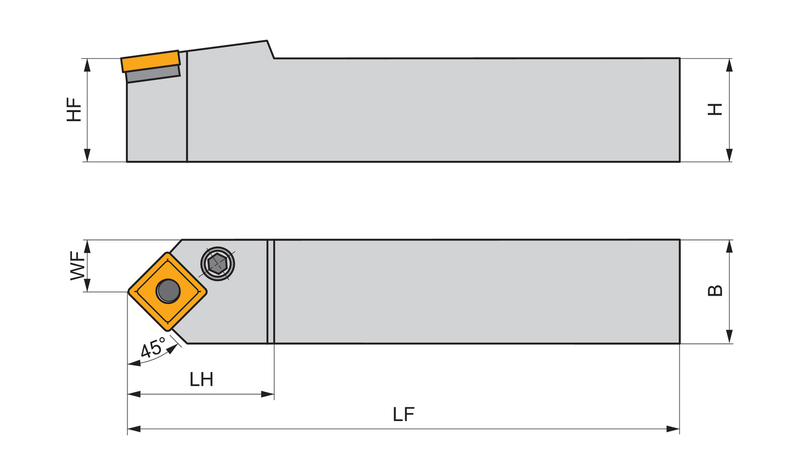

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Shank Height — mm (H)1.575 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6758536
EAN3603602938824
File Type Download
PSDNN 4040 S 25 — 3D Model STP Download
PSDNN 4040 S 25 — 2D Model DXF Download
PSDNN 4040 S 25 — Line Drawing PDF Download
