DDJNL 2525 M 11
DDJNL 2525 M 11

DDJNL 2525 M 11

UGC DOR6758542
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

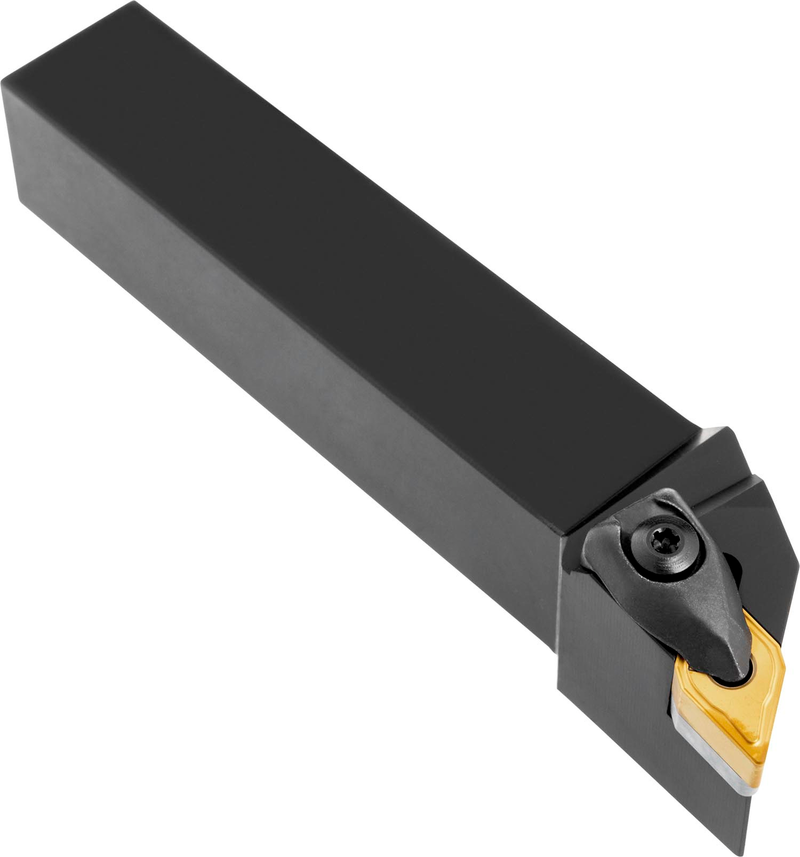

Outil de chariotage à double serrage pour plaquette négative en losange 55° avec un diamètre de cercle inscrit de 9,525mm, 4,76mm d'épaisseur (désignation ISO DN.. 1104.. ), coupe à gauche 93° avec un corps déporté, hauteur d'outil 25mm x largeur 25mm x 150mm de long pour chariotage conique, chariotage de reproduction unidirectionnel et multidirectionnel et chariotage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DDJNL 2525 M 11
Product Number6758542
Product FamilyDDJN(RL) EXT

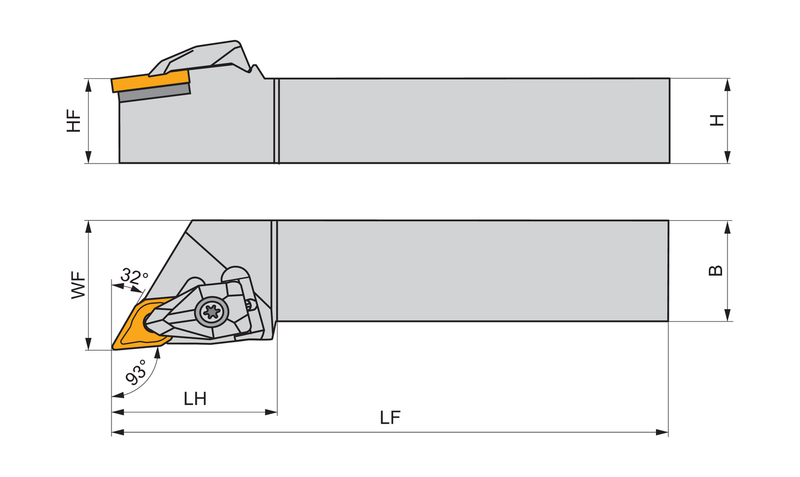

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6758542
EAN3603602938886
File Type Download
DDJNL 2525 M 11 — 3D Model STP Download
DDJNL 2525 M 11 — Line Drawing PDF Download
