16A2R030E02-SAD11E-C
16A2R030E02-SAD11E-C
16A2R030E02-SAD11E-C

16A2R030E02-SAD11E-C

UGC DOR6758928
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$285.00 CAD - $285.00 CAD
$285.00 CAD
$285.00 CAD - $285.00 CAD
$285.00 CAD

Vendu en lots de : 1

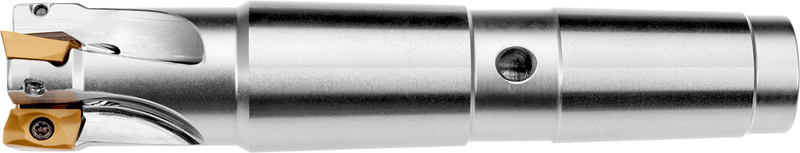

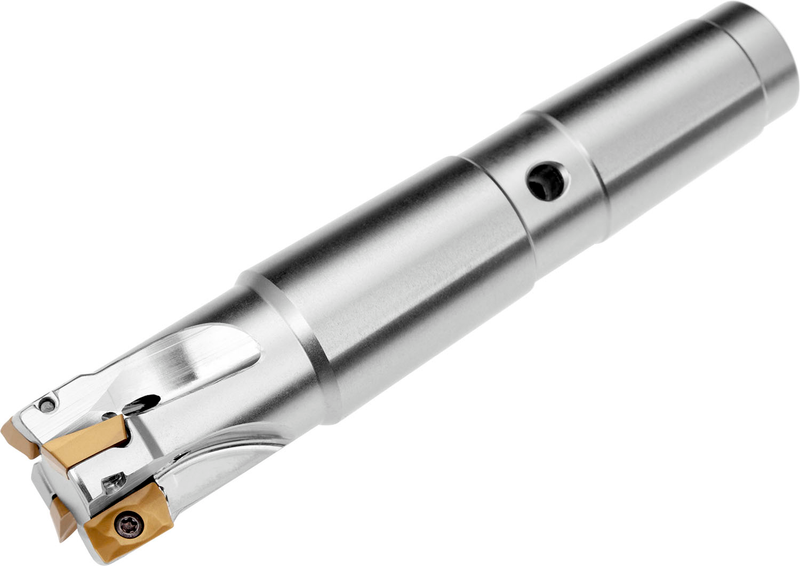

Fraise à épaulement à géométrie positive/négative utilisant 2 plaquettes simple face ADMX 11T3.. ou ADEX 11T3.., diamètre de coupe de 16 mm avec un angle d'attaque de 90° et une queue conique Morse MT 2 selon DIN 228-1A, longueur fonctionnelle de 25 mm et longueur totale de 94 mm, arrosage par l'intérieur pour le copiage, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage progressif en plongée avec une profondeur de coupe maximale de 9,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)16A2R030E02-SAD11E-C
Product Number6758928
Product FamilySAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

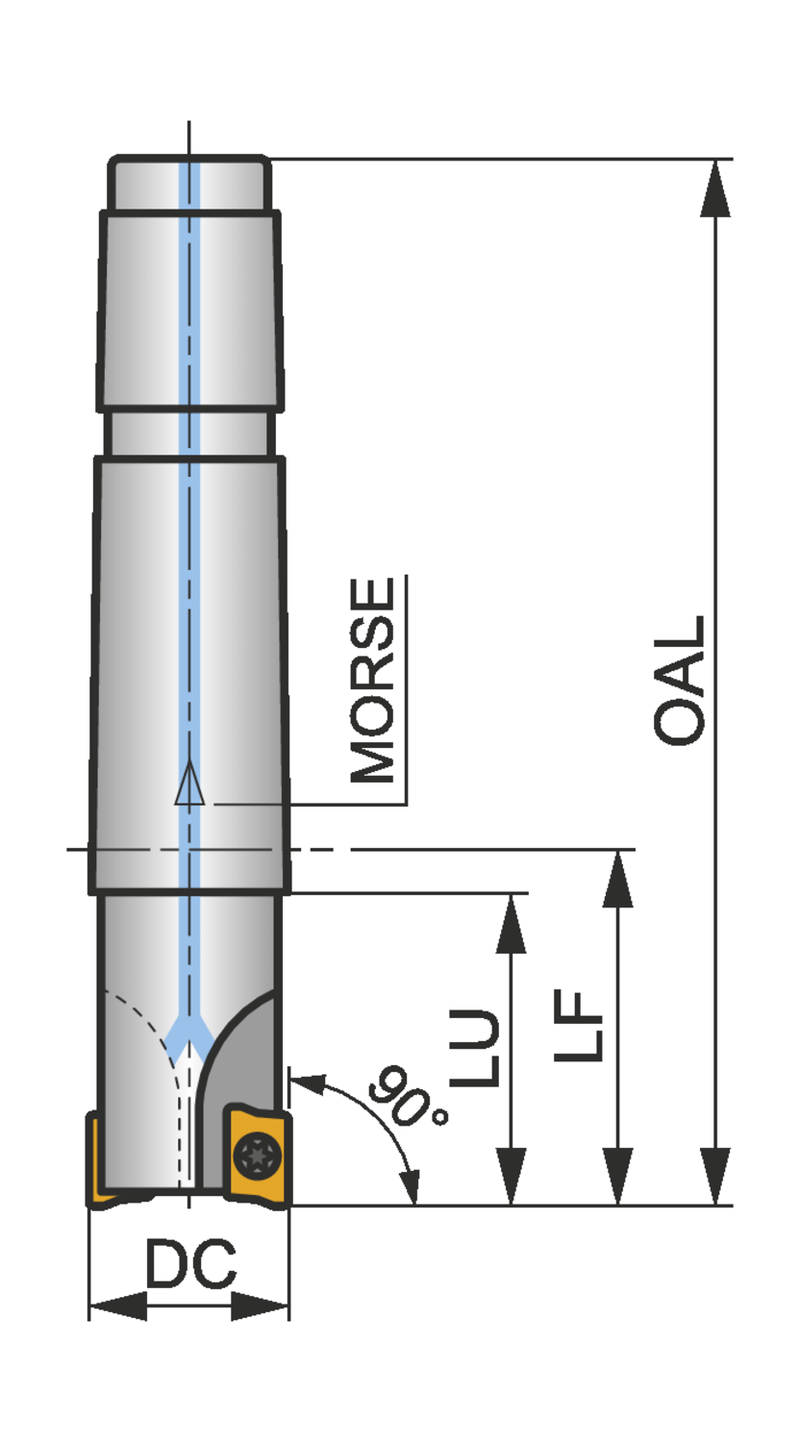

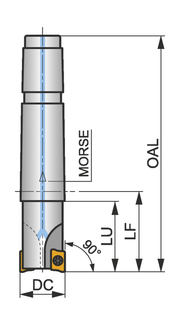

Dimensions
Cutting Diameter — in (DC)0.63"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.701"
Overall Length — mm (OAL)94.0 mm
Usable Length — mm (LU)25.0 mm
Functional Length — mm (LF)30.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSAD11E
ShankQueue de Morse DIN 228-1
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6758928
EAN3603602942746
File Type Download
16A2R030E02-SAD11E-C — 3D Model STP Download
16A2R030E02-SAD11E-C — 2D Model DXF Download
16A2R030E02-SAD11E-C — Line Drawing PDF Download
