20A3R035E03-SAD11E-C
20A3R035E03-SAD11E-C
20A3R035E03-SAD11E-C

20A3R035E03-SAD11E-C

UGC DOR6758929
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$324.00 CAD - $324.00 CAD
$324.00 CAD
$324.00 CAD - $324.00 CAD
$324.00 CAD

Vendu en lots de : 1

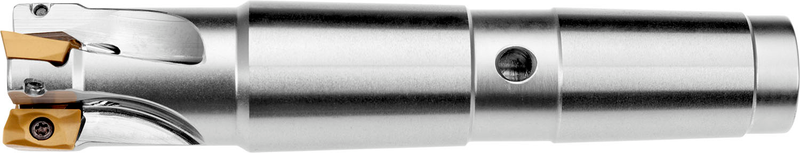

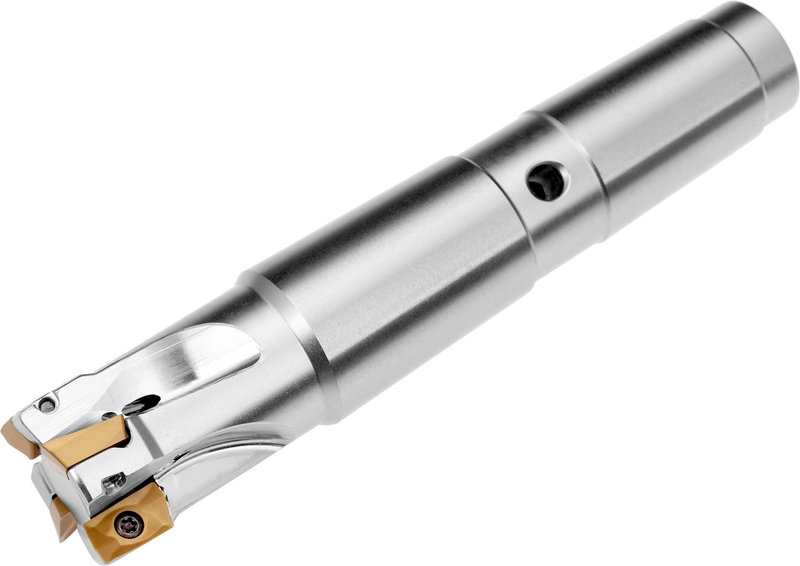

Fraise à épaule à géométrie positive/négative qui utilise 3 plaquettes simple face ADMX 11T3... ou ADEX 11T3..., diamètre de coupe 20mm avec un angle d'attaque de 90° et une queue conique morse MT 3 selon DIN 228-1A, longueur fonctionnelle de 30mm et longueur totale de 116mm, arrosage central pour le fraisage de copie, le fraisage d'épaulement peu profond, le fraisage de rainure peu profond, l'interpolation hélicoïdale, le fraisage en plongée et le fraisage progressif en plongée avec une profondeur de coupe maximale de 9.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)20A3R035E03-SAD11E-C
Product Number6758929
Product FamilySAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

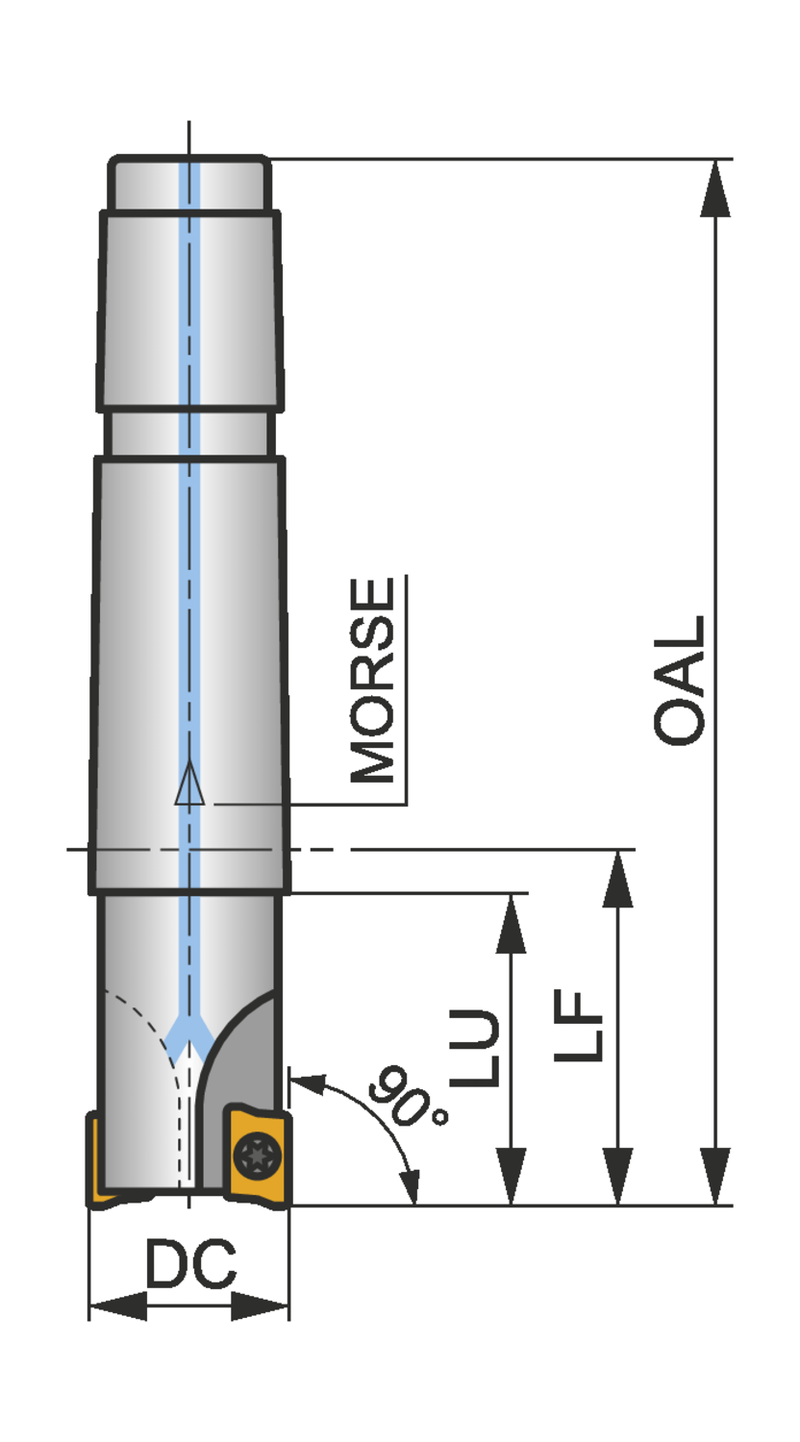

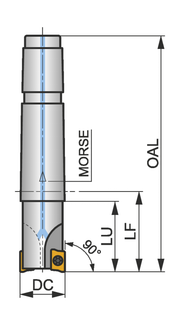

Dimensions
Cutting Diameter — in (DC)0.787"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)4.567"
Overall Length — mm (OAL)116.0 mm
Usable Length — mm (LU)30.0 mm
Functional Length — mm (LF)35.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSAD11E
ShankQueue conique Morse DIN 228-1
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6758929
EAN3603602942753
File Type Download
20A3R035E03-SAD11E-C — 3D Model STP Download
20A3R035E03-SAD11E-C — 2D Model DXF Download
20A3R035E03-SAD11E-C — Line Drawing PDF Download
