803D-42-126-S40
803D-42-126-S40
803D-42-126-S40

803D-42-126-S40

UGC DOR6758974
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$970.00 CAD - $970.00 CAD
$970.00 CAD
$970.00 CAD - $970.00 CAD
$970.00 CAD

Vendu en lots de : 1

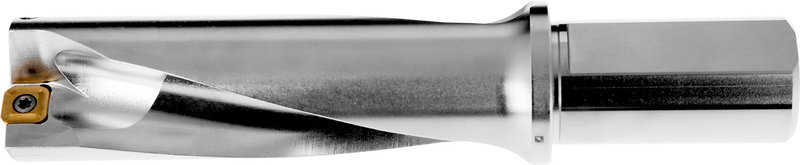

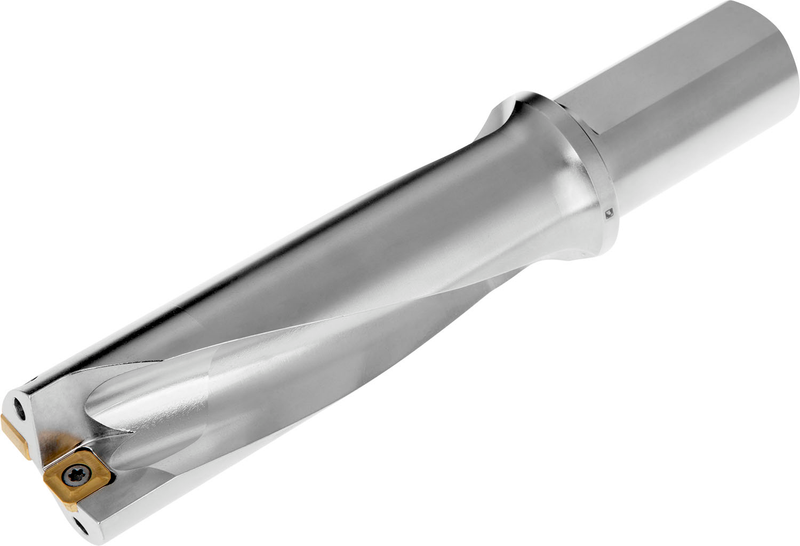

Foret à plaquettes utilisable avec une plaquette XPET 12T3.. dans le logement central et une plaquette SCET 1204.. dans le logement périphérique, diamètre de coupe 42 mm, avec une queue cylindrique de 40 mm avec méplat selon la norme ISO 9766 et arrosage central pour des profondeurs de perçage maximales jusqu'à 3 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)803D-42-126-S40
Product Number6758974
Product Family803D
Insert Geometry
Depth of Cut Max — in (APMX)4.9606"
Depth of Cut Max — mm (APMX)126.0 mm
Dimensions
Cutting Diameter — in (DC)1.654"
Cutting Diameter — mm (DC)42.0 mm
Overall Length — in (OAL)8.72"
Overall Length — mm (OAL)221.5 mm
Length × Diameter Ratio3
Usable Length — in (LU)5.3543"
Usable Length — mm (LU)136.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Tool Information
ShankQueue cylindrique ISO 9766
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6758974
EAN3603602943200
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
803D-42-126-S40 — 3D Model STP Download
803D-42-126-S40 — 2D Model DXF Download
803D-42-126-S40 — Line Drawing PDF Download
