804D-18-72-S25
804D-18-72-S25
804D-18-72-S25

804D-18-72-S25

UGC DOR6758990
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$750.00 CAD - $750.00 CAD
$750.00 CAD
$750.00 CAD - $750.00 CAD
$750.00 CAD

Vendu en lots de : 1

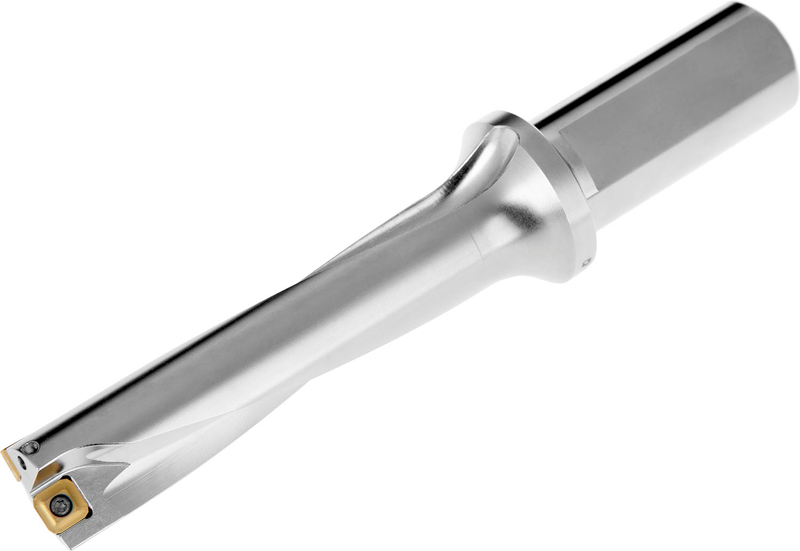

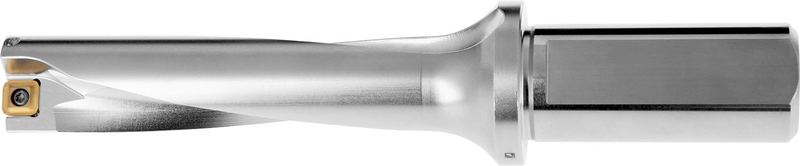

Foret à plaquettes amovibles utilisant une plaquette XPET 0602. . dans la poche centrale et une plaquette SCET 0502. . dans la poche périphérique, diamètre de coupe 18 mm, avec une queue cylindrique de 25 mm avec méplat selon ISO 9766 et arrosage par l'intérieur pour des profondeurs de perçage maximales jusqu'à 4 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)804D-18-72-S25
Product Number6758990
Product Family804D
Insert Geometry
Depth of Cut Max — in (APMX)2.8346"
Depth of Cut Max — mm (APMX)72.0 mm

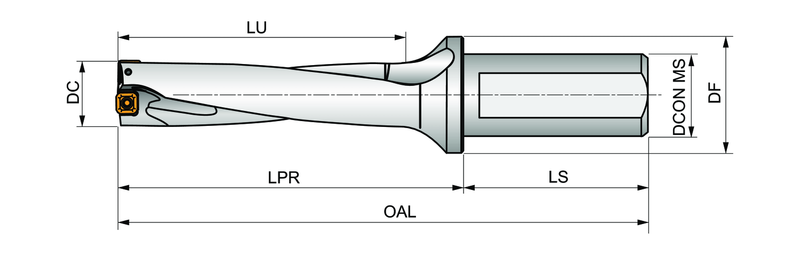

Dimensions
Cutting Diameter — in (DC)0.709"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)6.024"
Overall Length — mm (OAL)153.0 mm
Length × Diameter Ratio4
Usable Length — in (LU)3.0315"
Usable Length — mm (LU)77.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Tool Information
ShankQueue cylindrique ISO 9766
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6758990
EAN3603602943361
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
804D-18-72-S25 — 3D Model STP Download
804D-18-72-S25 — 2D Model DXF Download
804D-18-72-S25 — Line Drawing PDF Download
