805D-21-105-S25
805D-21-105-S25
805D-21-105-S25

805D-21-105-S25

UGC DOR6759011
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$898.00 CAD - $898.00 CAD
$898.00 CAD
$898.00 CAD - $898.00 CAD
$898.00 CAD

Vendu en lots de : 1

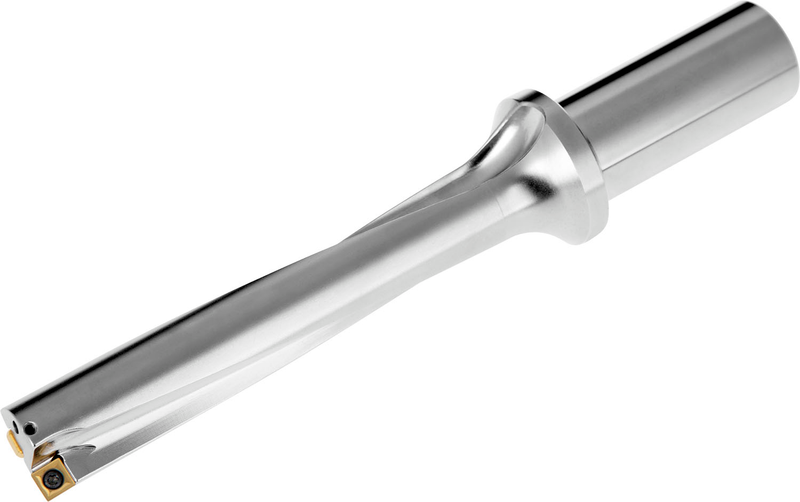

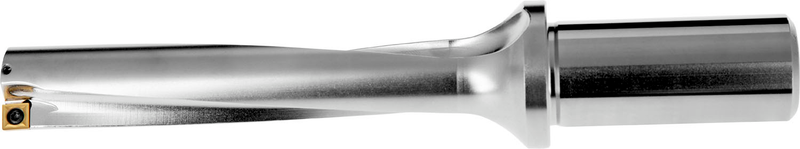

Foret à plaquettes utilisable avec une plaquette XPET 0602.. dans la poche centrale et une plaquette SCET 0602.. dans la poche périphérique, diamètre de coupe 21 mm, avec un queue cylindrique de 25 mm avec méplat selon ISO 9766 et arrosage central pour des profondeurs de perçage maximales jusqu'à 5 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)805D-21-105-S25
Product Number6759011
Product Family805D
Insert Geometry
Depth of Cut Max — in (APMX)4.1339"
Depth of Cut Max — mm (APMX)105.0 mm

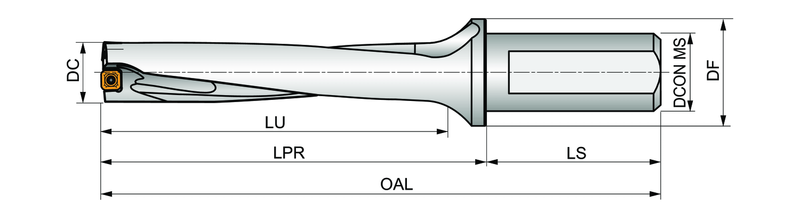

Dimensions
Cutting Diameter — in (DC)0.827"
Cutting Diameter — mm (DC)21.0 mm
Overall Length — in (OAL)7.323"
Overall Length — mm (OAL)186.0 mm
Length × Diameter Ratio5
Usable Length — in (LU)4.3504"
Usable Length — mm (LU)110.5 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Tool Information
ShankQueue cylindrique ISO 9766
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6759011
EAN3603602943576
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
805D-21-105-S25 — 3D Model STP Download
805D-21-105-S25 — 2D Model DXF Download
805D-21-105-S25 — Line Drawing PDF Download
