805D-30-150-S32
805D-30-150-S32
805D-30-150-S32

805D-30-150-S32

UGC DOR6759020
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,017.00 CAD - $1,017.00 CAD
$1,017.00 CAD
$1,017.00 CAD - $1,017.00 CAD
$1,017.00 CAD

Vendu en lots de : 1

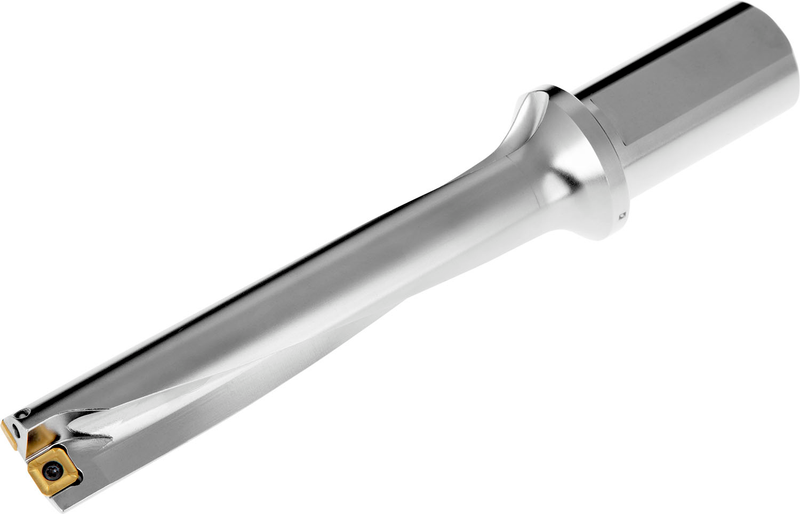

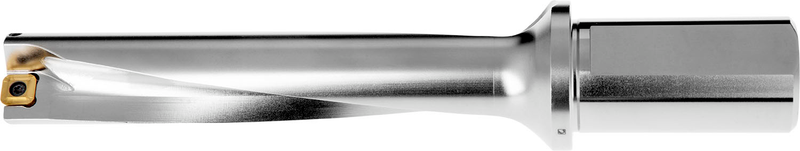

Foret à plaquettes indexables qui utilise une plaquette XPET 0903.. dans la poche centrale et une plaquette SCET 09T3.. dans la poche périphérique, diamètre de coupe 30mm, avec une queue cylindrique de 32mm avec méplat selon ISO 9766 et arrosage central pour des profondeurs de perçage maximales jusqu'à 5 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)805D-30-150-S32
Product Number6759020
Product Family805D
Insert Geometry
Depth of Cut Max — in (APMX)5.9055"
Depth of Cut Max — mm (APMX)150.0 mm

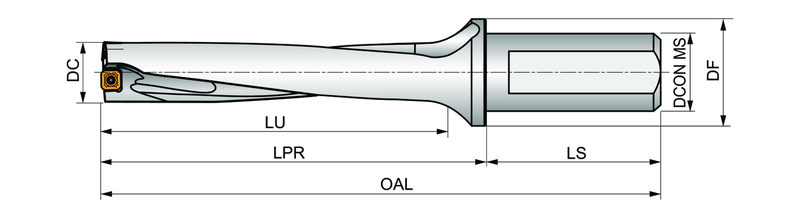

Dimensions
Cutting Diameter — in (DC)1.181"
Cutting Diameter — mm (DC)30.0 mm
Overall Length — in (OAL)9.252"
Overall Length — mm (OAL)235.0 mm
Length × Diameter Ratio5
Usable Length — in (LU)6.2008"
Usable Length — mm (LU)157.5 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Tool Information
ShankQueue cylindrique ISO 9766
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6759020
EAN3603602943668
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
805D-30-150-S32 — 3D Model STP Download
805D-30-150-S32 — 2D Model DXF Download
805D-30-150-S32 — Line Drawing PDF Download
