SSBCL 6060 V 38-A
SSBCL 6060 V 38-A
SSBCL 6060 V 38-A

SSBCL 6060 V 38-A

UGC DOR6759638
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$910.00 CAD - $910.00 CAD
$910.00 CAD
$910.00 CAD - $910.00 CAD
$910.00 CAD

Vendu en lots de : 1

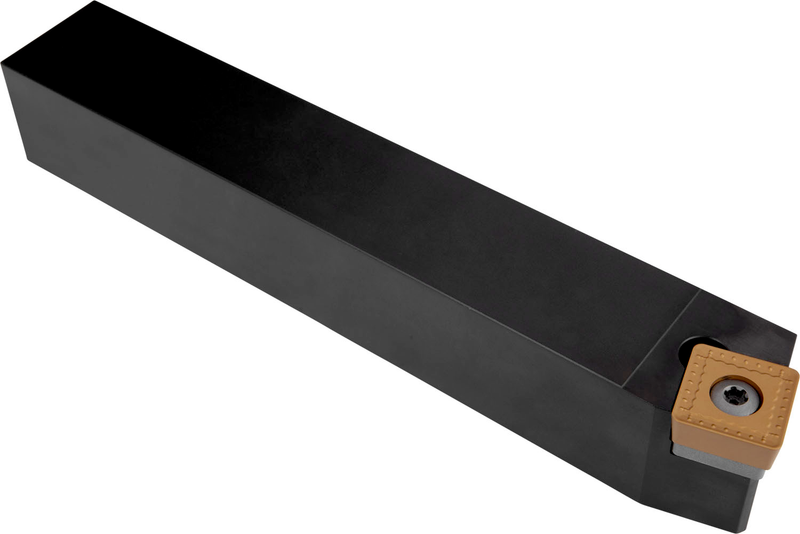

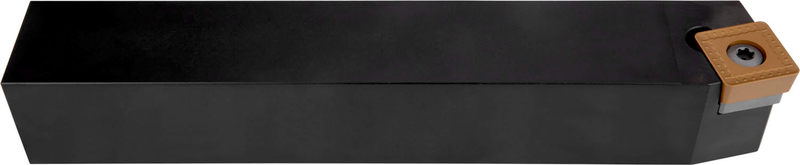

Outil de chariotage à levier pour plaquette carrée positive avec un cercle inscrit de 38,1 mm de diamètre, 9,52 mm d'épaisseur (désignation ISO SC.. 3809.. ), à gauche coupe latérale 75° avec queue droite, 60 mm de hauteur x 60 mm de largeur x 400 mm de long pour le chariotage conique et le chariotage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SSBCL 6060 V 38-A
Product Number6759638
Product FamilySSBC(RL) EXT

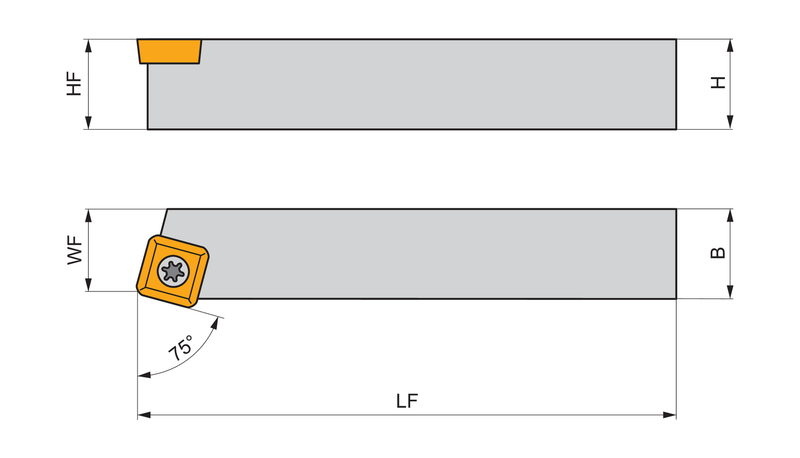

Dimensions
Functional Length — in (LF)15.748"
Functional Length — mm (LF)400.0 mm
Shank Height — mm (H)2.362 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6759638
EAN3603602949844
File Type Download
SSBCL 6060 V 38-A — 3D Model STP Download
SSBCL 6060 V 38-A — Line Drawing PDF Download
