25J2R50B25-SAD11E38-C
25J2R50B25-SAD11E38-C
25J2R50B25-SAD11E38-C

25J2R50B25-SAD11E38-C

UGC DOR6759643
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$750.00 CAD - $750.00 CAD
$750.00 CAD
$750.00 CAD - $750.00 CAD
$750.00 CAD

Vendu en lots de : 1

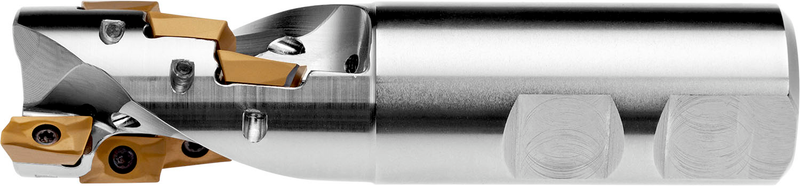

Fraise à épaule à queue longue avec géométrie positive/négative qui utilise 8 plaquettes unilatérales ADMX 11T3..., diamètre de coupe 25mm avec angle d'attaque de 90° et queue Weldon 25mm selon DIN 1835B, longueur fonctionnelle 38mm et longueur totale 106.0mm, arrosage interne pour le fraisage d'épaulements profonds et le fraisage de rainures profondes avec une profondeur de coupe maximale de 38mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25J2R50B25-SAD11E38-C
Product Number6759643
Product FamilyJ(T)-SAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)38.0 mm

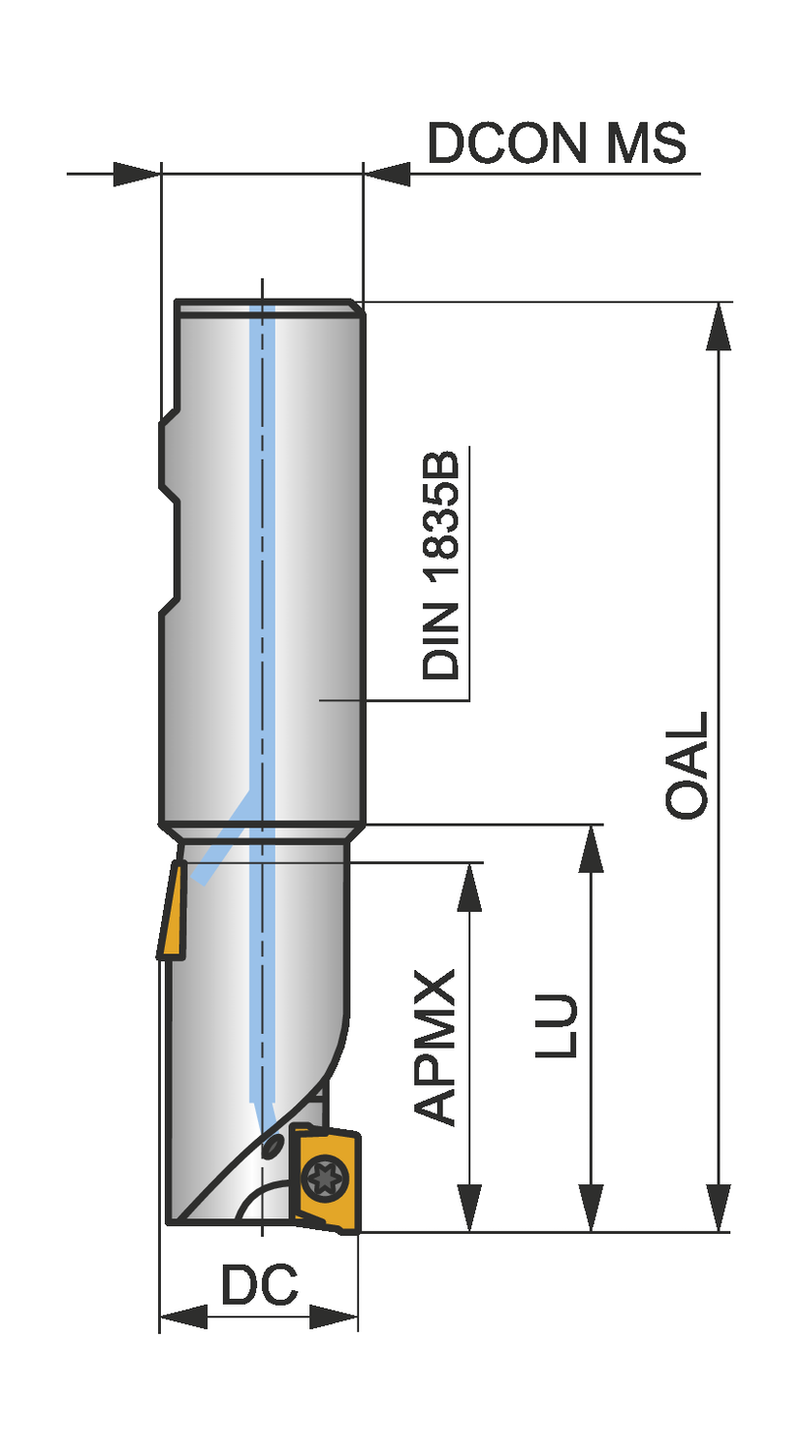

Dimensions
Cutting Diameter — in (DC)0.984"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)4.173"
Overall Length — mm (OAL)106.0 mm
Usable Length — mm (LU)50.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignJ(T)-SAD11E
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6759643
EAN3603602949899
File Type Download
25J2R50B25-SAD11E38-C — 3D Model STP Download
25J2R50B25-SAD11E38-C — 2D Model DXF Download
25J2R50B25-SAD11E38-C — Line Drawing PDF Download
