32J2R60B32-SAD11E47-C
32J2R60B32-SAD11E47-C
32J2R60B32-SAD11E47-C

32J2R60B32-SAD11E47-C

UGC DOR6759644
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$945.00 CAD - $945.00 CAD
$945.00 CAD
$945.00 CAD - $945.00 CAD
$945.00 CAD

Vendu en lots de : 1

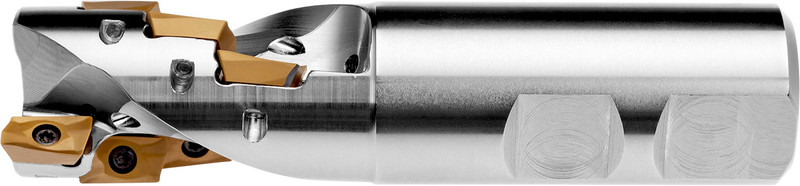

Fraise à épaulement à queue allongée avec géométrie positive/négative qui utilise 10 plaquettes simple face ADMX 11T3..., diamètre de coupe 32 mm avec un angle d'attaque de 90° et une queue Weldon de 32 mm selon DIN 1835B, longueur utile de 47 mm et longueur totale de 120,0 mm, arrosage central pour le fraisage d'épaulements profonds et le fraisage de rainures profondes avec une profondeur de coupe maximale de 47 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32J2R60B32-SAD11E47-C
Product Number6759644
Product FamilyJ(T)-SAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)47.0 mm

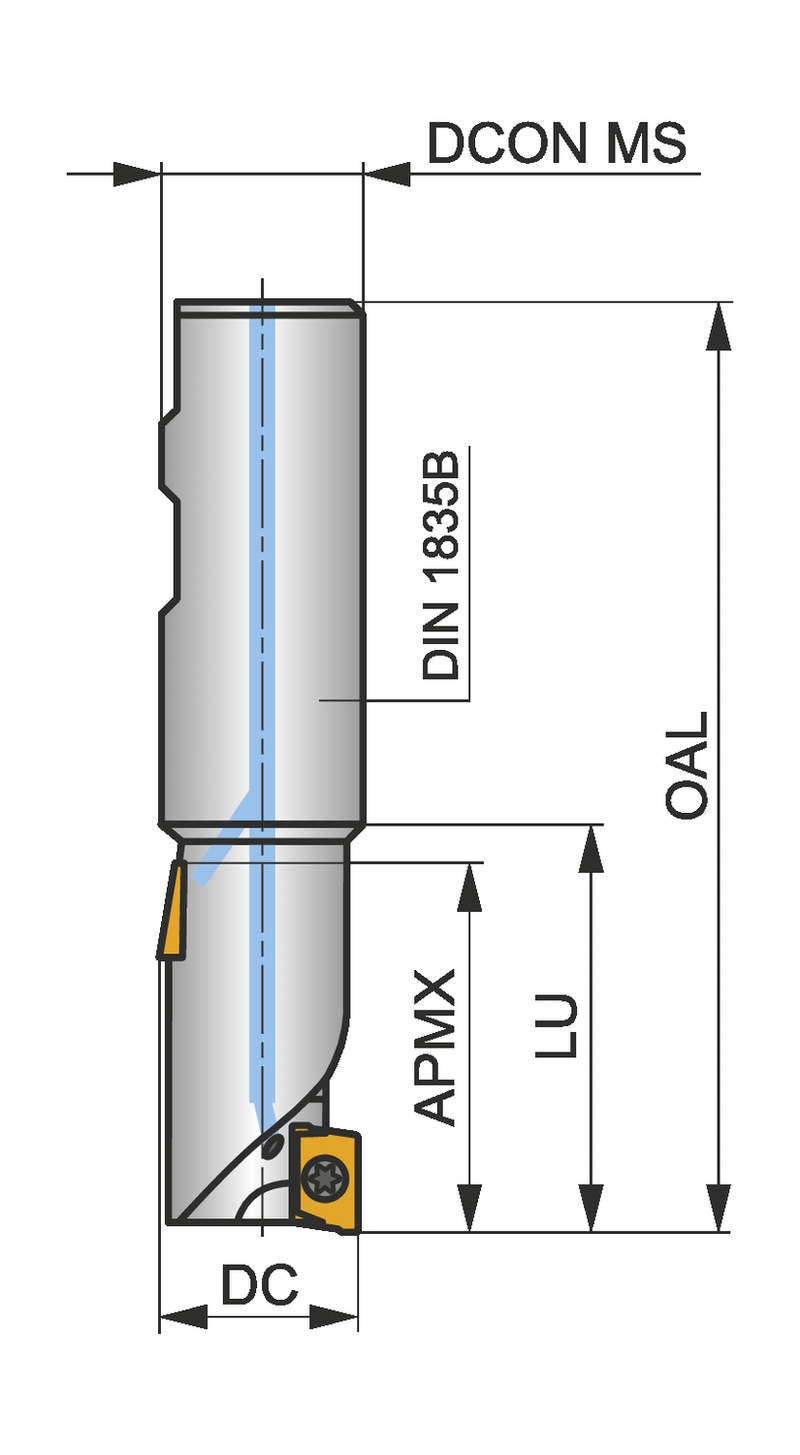

Dimensions
Cutting Diameter — in (DC)1.26"
Cutting Diameter — mm (DC)32.0 mm
Overall Length — in (OAL)4.724"
Overall Length — mm (OAL)120.0 mm
Usable Length — mm (LU)60.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignJ(T)-SAD11E
ShankQueue Weldon DIN 1835B
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6759644
EAN3603602949905
File Type Download
32J2R60B32-SAD11E47-C — 3D Model STP Download
32J2R60B32-SAD11E47-C — 2D Model DXF Download
32J2R60B32-SAD11E47-C — Line Drawing PDF Download
