40J2R60B40-SAD11E47-C
40J2R60B40-SAD11E47-C
40J2R60B40-SAD11E47-C

40J2R60B40-SAD11E47-C

UGC DOR6759645
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,018.00 CAD - $1,018.00 CAD
$1,018.00 CAD
$1,018.00 CAD - $1,018.00 CAD
$1,018.00 CAD

Vendu en lots de : 1

Fraise à épaulement à queue avec géométrie positive/négative qui utilise 10 plaquettes simple-face ADMX 11T3..., diamètre de coupe de 40mm avec un angle d'attaque de 90° et une queue Weldon de 40mm selon DIN 1835B, longueur fonctionnelle de 47mm et longueur totale de 130,0mm, arrosage central pour le fraisage d'épaulements profonds et le fraisage de gorges profondes avec une profondeur de coupe maximale de 47mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)40J2R60B40-SAD11E47-C
Product Number6759645
Product FamilyJ(T)-SAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)47.0 mm

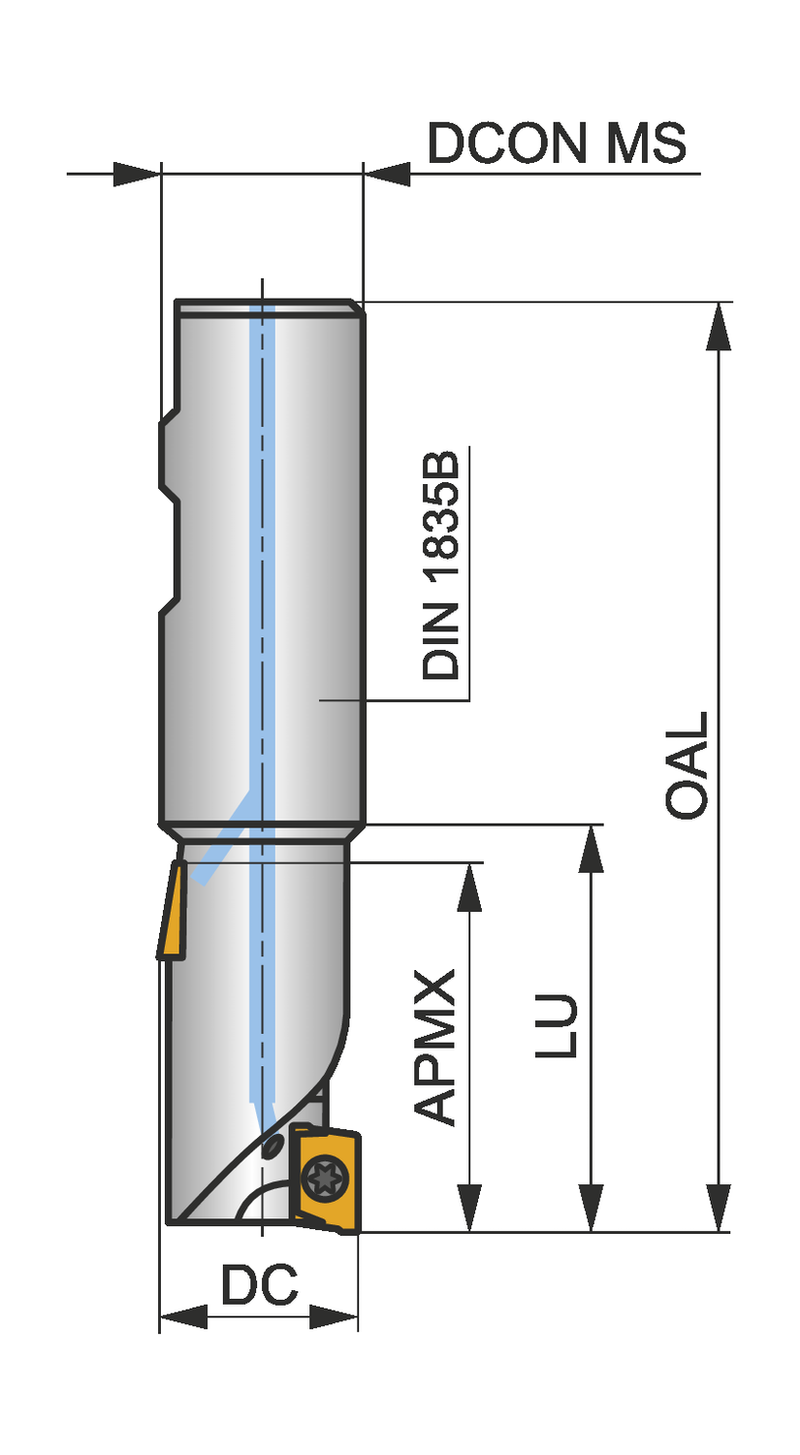

Dimensions
Cutting Diameter — in (DC)1.575"
Cutting Diameter — mm (DC)40.0 mm
Overall Length — in (OAL)5.118"
Overall Length — mm (OAL)130.0 mm
Usable Length — mm (LU)60.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignJ(T)-SAD11E
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6759645
EAN3603602949912
File Type Download
40J2R60B40-SAD11E47-C — 3D Model STP Download
40J2R60B40-SAD11E47-C — 2D Model DXF Download
40J2R60B40-SAD11E47-C — Line Drawing PDF Download
