40J3R70B40-SAD11E56-C
40J3R70B40-SAD11E56-C
40J3R70B40-SAD11E56-C

40J3R70B40-SAD11E56-C

UGC DOR6759646
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,401.00 CAD - $1,401.00 CAD
$1,401.00 CAD
$1,401.00 CAD - $1,401.00 CAD
$1,401.00 CAD

Vendu en lots de : 1

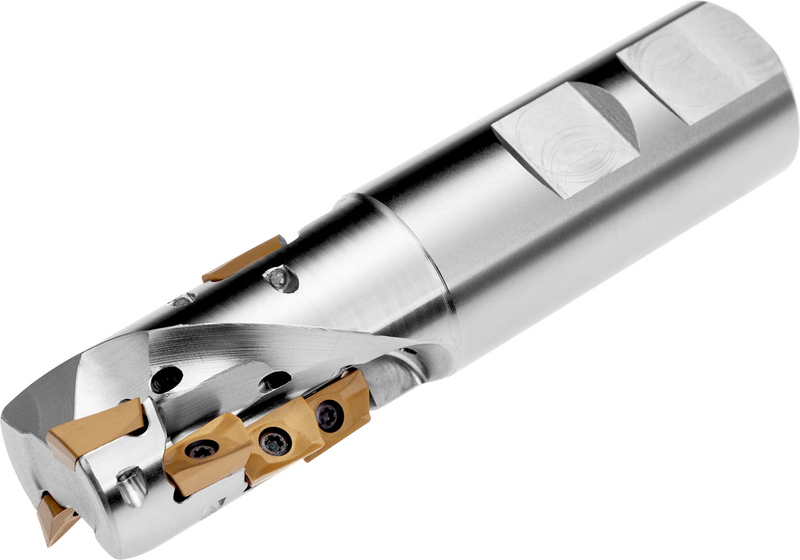

Fraise à épaulement à queue avec géométrie positive/négative utilisant 18 plaquettes simple face ADMX 11T3.., diamètre de coupe 40mm avec angle d'attaque 90° et queue Weldon 40mm selon DIN 1835B, longueur fonctionnelle 56mm et longueur totale 140.0mm, arrosage central pour fraisage d'épaulements et de rainures profondes avec une profondeur de coupe maximale de 56mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)40J3R70B40-SAD11E56-C
Product Number6759646
Product FamilyJ(T)-SAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)56.0 mm

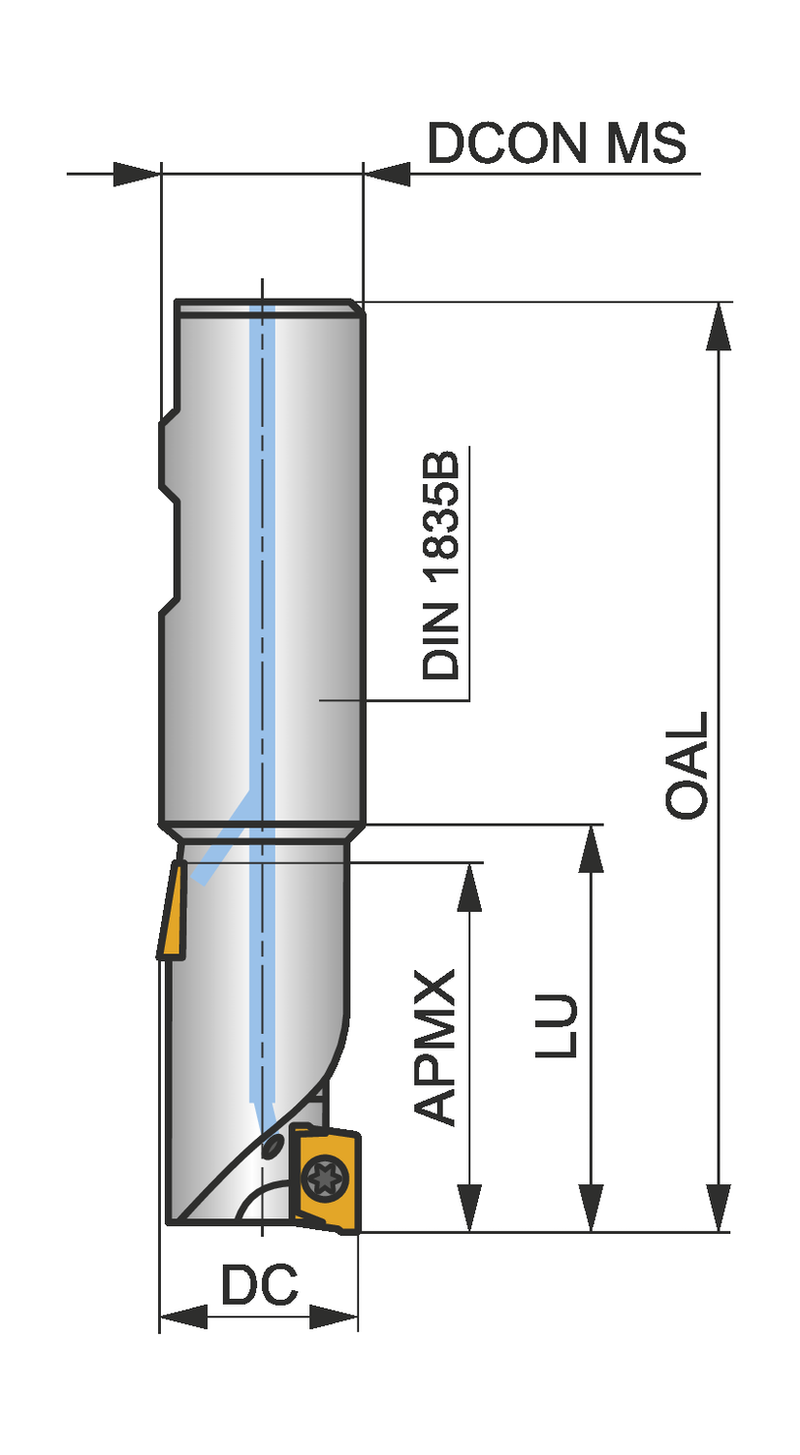

Dimensions
Cutting Diameter — in (DC)1.575"
Cutting Diameter — mm (DC)40.0 mm
Overall Length — in (OAL)5.512"
Overall Length — mm (OAL)140.0 mm
Usable Length — mm (LU)70.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignJ(T)-SAD11E
ShankQueue Weldon DIN 1835B
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6759646
EAN3603602949929
File Type Download
40J3R70B40-SAD11E56-C — 3D Model STP Download
40J3R70B40-SAD11E56-C — 2D Model DXF Download
40J3R70B40-SAD11E56-C — Line Drawing PDF Download
