25J2R55E03-SAD11E38-C
25J2R55E03-SAD11E38-C
25J2R55E03-SAD11E38-C

25J2R55E03-SAD11E38-C

UGC DOR6759647
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$750.00 CAD - $750.00 CAD
$750.00 CAD
$750.00 CAD - $750.00 CAD
$750.00 CAD

Vendu en lots de : 1

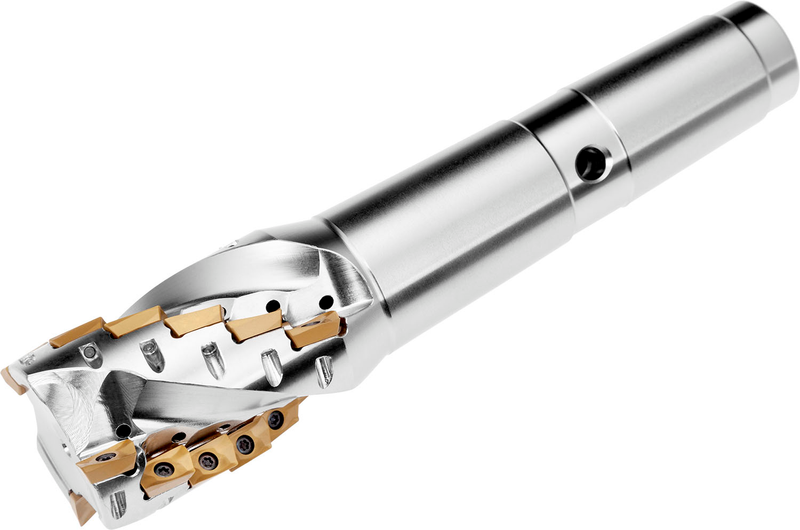

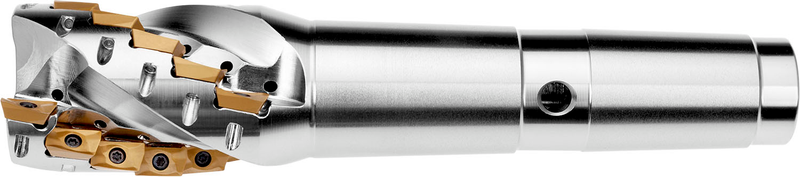

Fraise à épaule à queue longue avec géométrie positive/négative qui utilise 8 plaquettes unilatérales ADMX 11T3..., diamètre de coupe 25mm avec angle d'attaque de 90° et cône morse CM 3 selon DIN 228-1A, longueur fonctionnelle de 38mm et longueur totale de 136.0mm, arrosage central pour le fraisage d'épaulements profonds et le fraisage de rainures profondes avec une profondeur de coupe maximale de 38mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25J2R55E03-SAD11E38-C
Product Number6759647
Product FamilyJ(T)-SAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)38.0 mm

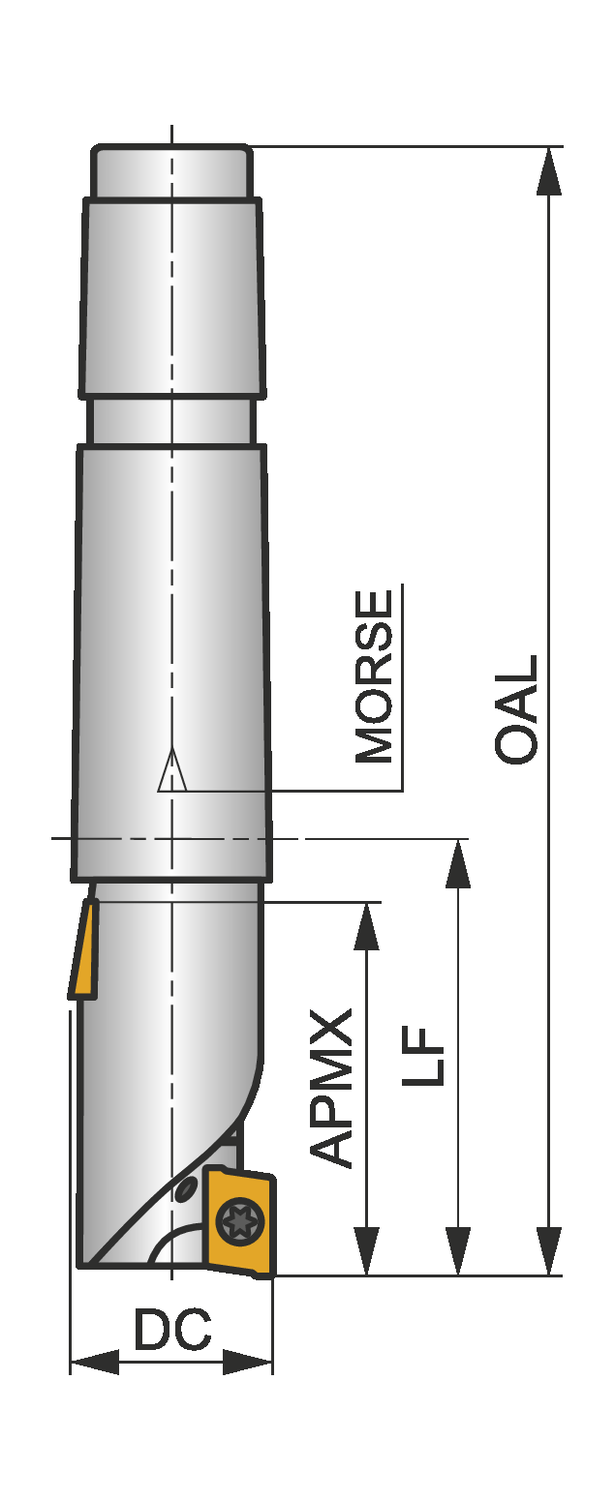

Dimensions
Cutting Diameter — in (DC)0.984"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)5.354"
Overall Length — mm (OAL)136.0 mm
Functional Length — mm (LF)55.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignJ(T)-SAD11E
ShankQueue de cône Morse DIN 228-1
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6759647
EAN3603602949936
File Type Download
25J2R55E03-SAD11E38-C — 3D Model STP Download
25J2R55E03-SAD11E38-C — 2D Model DXF Download
25J2R55E03-SAD11E38-C — Line Drawing PDF Download
