32J2R65E04-SAD11E47-C
32J2R65E04-SAD11E47-C
32J2R65E04-SAD11E47-C

32J2R65E04-SAD11E47-C

UGC DOR6759648
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$945.00 CAD - $945.00 CAD
$945.00 CAD
$945.00 CAD - $945.00 CAD
$945.00 CAD

Vendu en lots de : 1

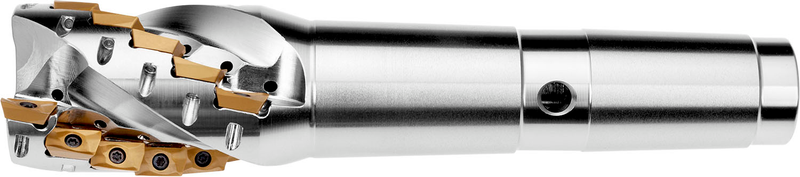

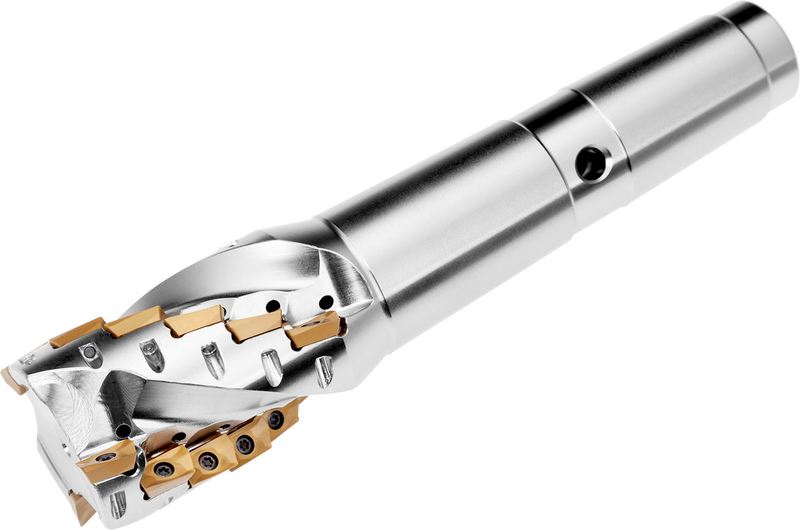

Fraise à épaulement à queue avec géométrie positive/négative qui utilise 10 plaquettes simple face ADMX 11T3..., diamètre de coupe 32mm avec un angle d'attaque de 90° et un cône Morse MT 4 selon DIN 228-1A, longueur fonctionnelle de 47mm et longueur totale de 167,5mm, arrosage central pour le fraisage d'épaulements profonds et le fraisage de gorges profondes avec une profondeur de coupe maximale de 47mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32J2R65E04-SAD11E47-C
Product Number6759648
Product FamilyJ(T)-SAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)47.0 mm

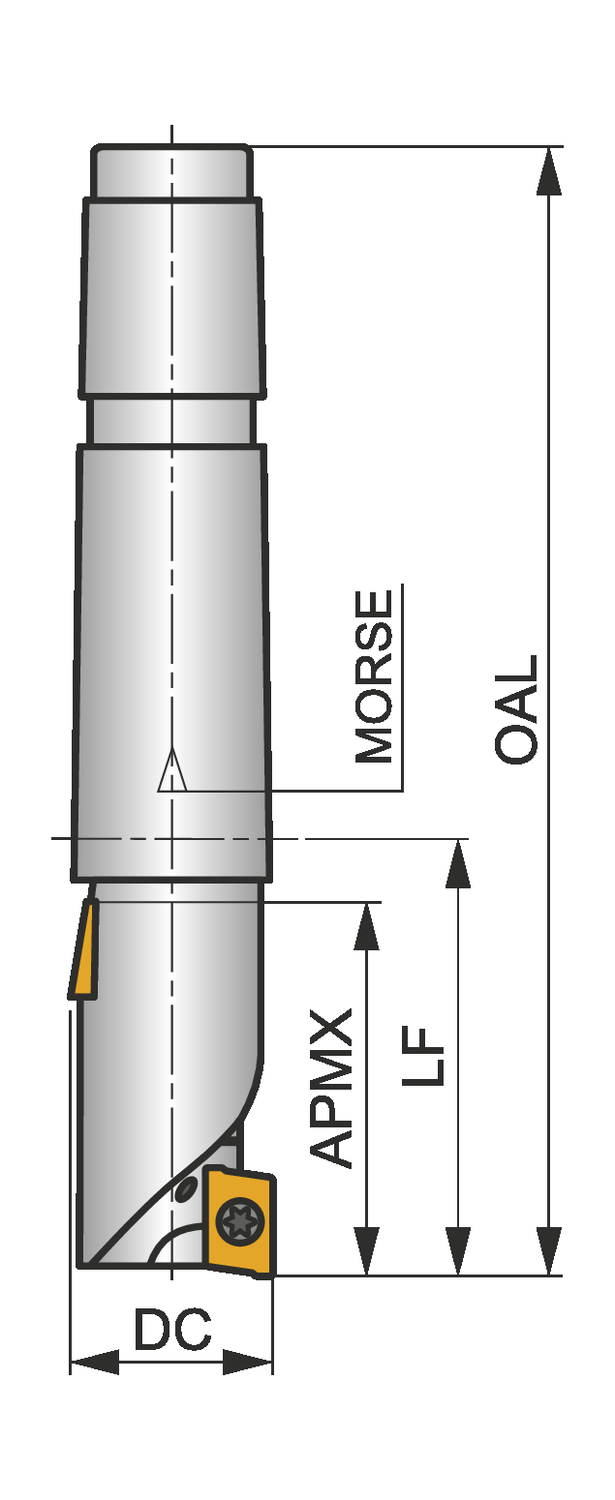

Dimensions
Cutting Diameter — in (DC)1.26"
Cutting Diameter — mm (DC)32.0 mm
Overall Length — in (OAL)6.594"
Overall Length — mm (OAL)167.5 mm
Functional Length — mm (LF)65.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignJ(T)-SAD11E
ShankCône Morse DIN 228-1
Direction of ToolNeutre
Through Coolant Yes
Reference Numbers
EDP Number6759648
EAN3603602949943
File Type Download
32J2R65E04-SAD11E47-C — 3D Model STP Download
32J2R65E04-SAD11E47-C — 2D Model DXF Download
32J2R65E04-SAD11E47-C — Line Drawing PDF Download
