UGC DOR6759649
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,188.00 CAD - $1,188.00 CAD
$1,188.00 CAD
$1,188.00 CAD - $1,188.00 CAD
$1,188.00 CAD

Vendu en lots de : 1

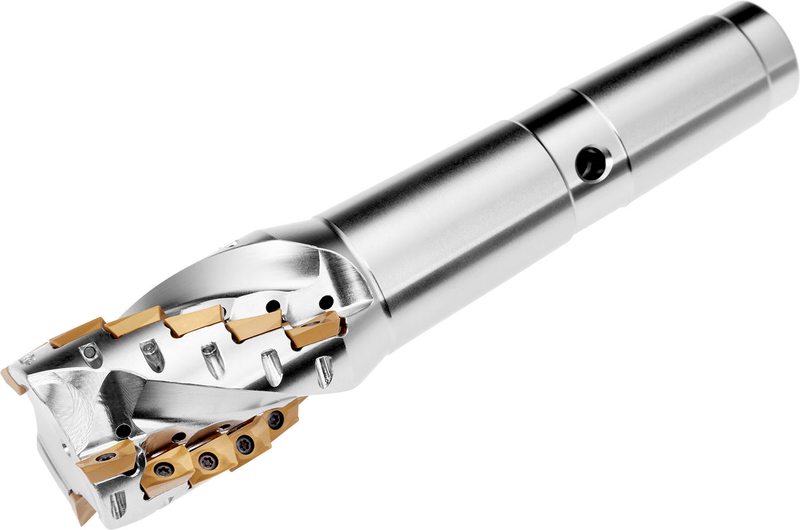

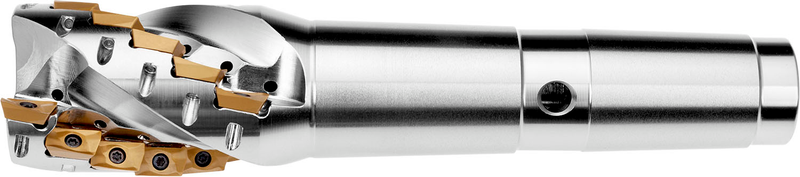

Fraise à épaule avec longueur de coupe prolongée et géométrie positive/négative qui utilise 18 plaquettes simple-face ADMX 11T3.., diamètre de coupe 40mm avec un angle d'attaque de 90° et un cône morse CM 4 selon DIN 228-1A, longueur utile de 56mm et longueur totale de 177,5mm, arrosage central pour le fraisage d'épaulements profonds et le fraisage de rainures profondes avec une profondeur de coupe maximale de 56mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)40J3R75E04-SAD11E56-C
Product Number6759649
Product FamilyJ(T)-SAD11E
Insert Geometry

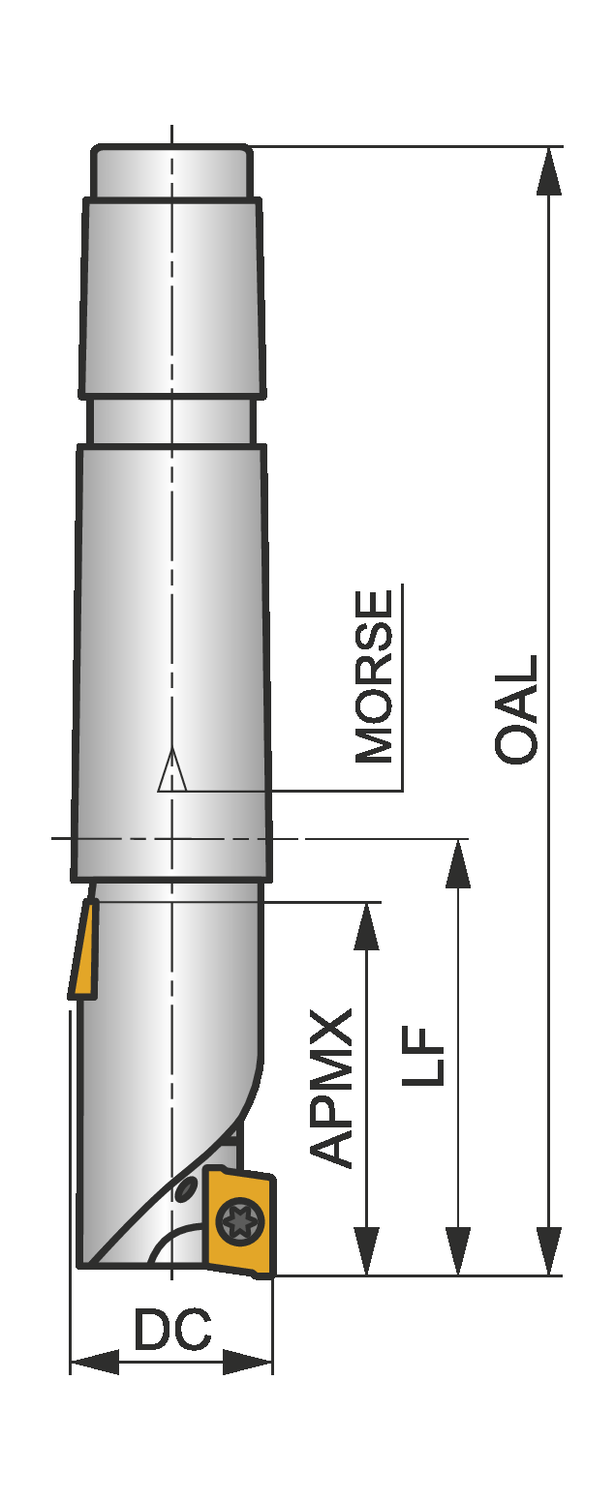

Depth of Cut Max — mm (APMX)56.0 mm
Dimensions
Cutting Diameter — in (DC)1.575"
Cutting Diameter — mm (DC)40.0 mm
Overall Length — in (OAL)6.988"
Overall Length — mm (OAL)177.5 mm
Functional Length — mm (LF)75.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignJ(T)-SAD11E
ShankQueue conique Morse DIN 228-1
Direction of ToolNeutre
Through Coolant Yes
Reference Numbers
EDP Number6759649
EAN3603602949950
File Type Download
40J3R75E04-SAD11E56-C — 3D Model STP Download
40J3R75E04-SAD11E56-C — 2D Model DXF Download
40J3R75E04-SAD11E56-C — Line Drawing PDF Download
