50T03R-S90AD11E37-C
50T03R-S90AD11E37-C
50T03R-S90AD11E37-C

50T03R-S90AD11E37-C

UGC DOR6759650
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,062.00 CAD - $1,062.00 CAD
$1,062.00 CAD
$1,062.00 CAD - $1,062.00 CAD
$1,062.00 CAD

Vendu en lots de : 1

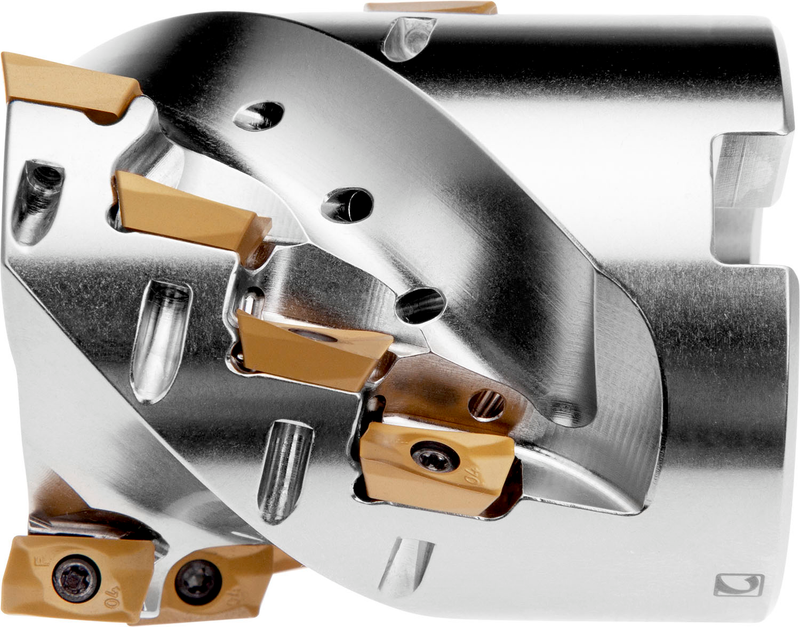

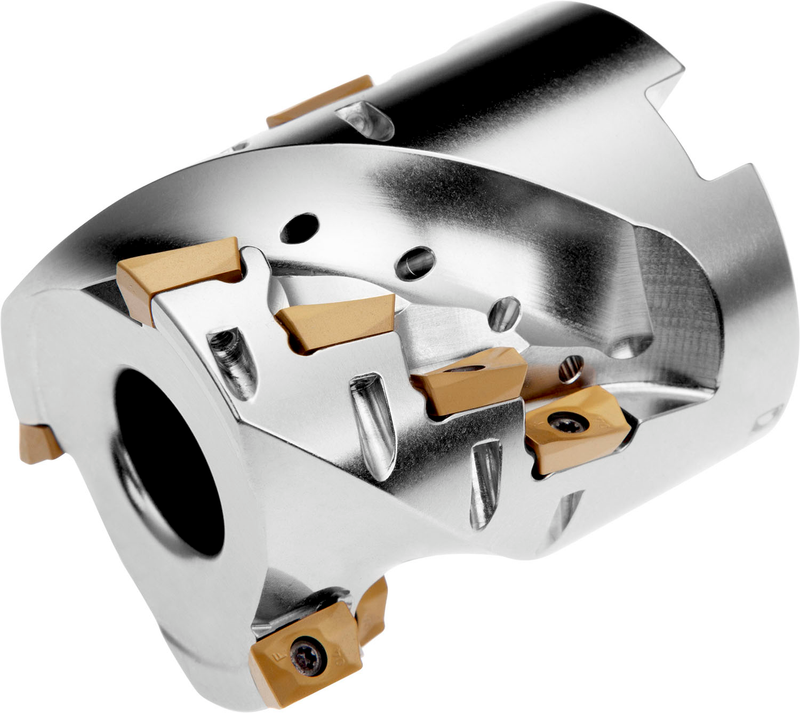

Fraise à épaulement à queue avec géométrie positive/négative qui utilise 12 plaquettes ADMX 11T3... à une face, diamètre de coupe 50 mm avec angle d'approche de 90° et alésage de connexion de 22 mm selon DIN 8030, longueur fonctionnelle de 37 mm et longueur de dépassement de 58,0 mm, arrosage interne pour le fraisage d'épaulements profonds et le fraisage de gorges profondes avec une profondeur de coupe maximale de 37 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50T03R-S90AD11E37-C
Product Number6759650
Product FamilyJ(T)-SAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)37.0 mm

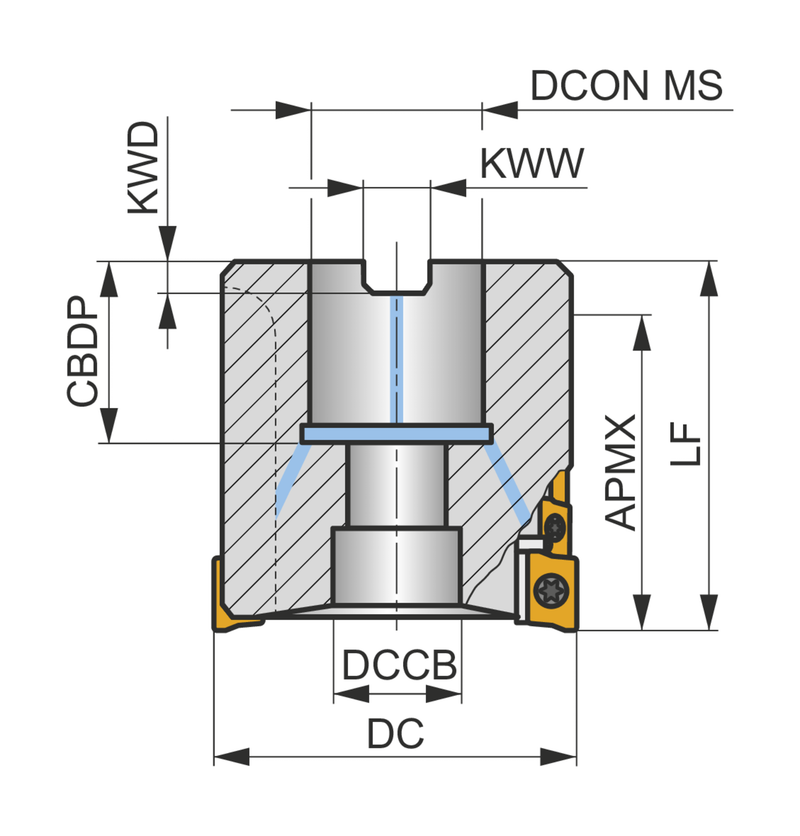

Dimensions
Cutting Diameter — in (DC)1.969"
Cutting Diameter — mm (DC)50.0 mm
Functional Length — mm (LF)58.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignJ(T)-SAD11E
ShankFraise à surfacer-dresser DIN 8030 – fraise hélicoïdale
Direction of ToolNeutre
Through Coolant Yes
Reference Numbers
EDP Number6759650
EAN3603602949967
File Type Download
50T03R-S90AD11E37-C — 3D Model STP Download
50T03R-S90AD11E37-C — 2D Model DXF Download
50T03R-S90AD11E37-C — Line Drawing PDF Download
