PXFNL 2525 R 15/15
PXFNL 2525 R 15/15
PXFNL 2525 R 15/15

PXFNL 2525 R 15/15

UGC DOR6759652
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$301.00 CAD - $301.00 CAD
$301.00 CAD
$301.00 CAD - $301.00 CAD
$301.00 CAD

Vendu en lots de : 1

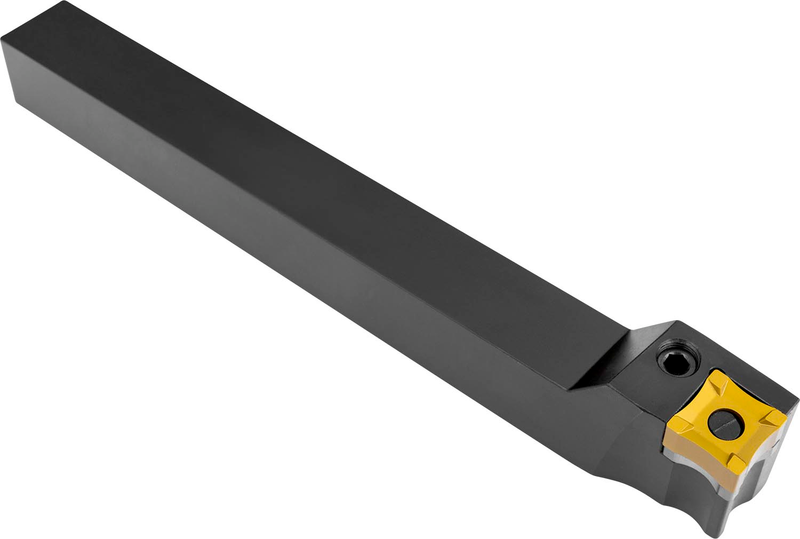

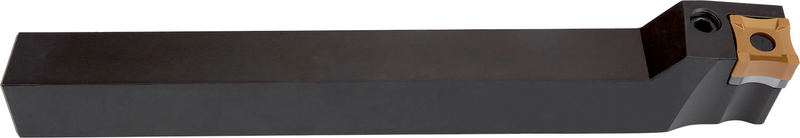

Outil d'écharpage à levier avec dépouille de 20° pour insert carré avec une longueur d'arête de coupe principale de 15,875 mm (désignation SNMX 15-R..), version à gauche avec insert parallèle à la queue, hauteur 25 mm, largeur 25 mm et longueur 200 mm pour l'ébavurage extérieur de tubes et de tuyaux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PXFNL 2525 R 15/15
Product Number6759652
Product FamilyPXFN(RL) EXT

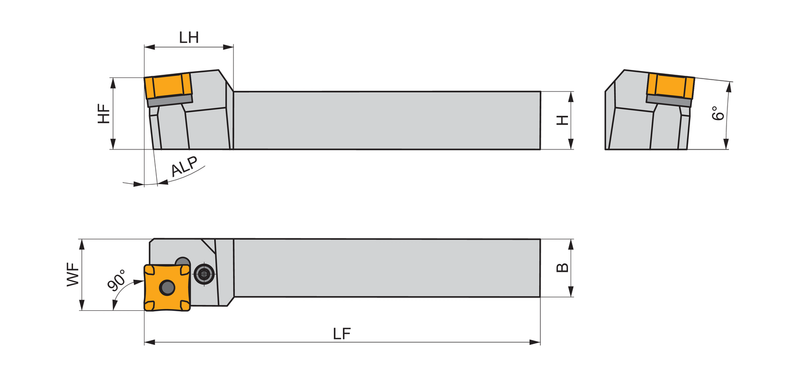

Dimensions
Functional Length — in (LF)7.874"
Functional Length — mm (LF)200.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolNeutre
Reference Numbers
EDP Number6759652
EAN3603602949981
File Type Download
PXFNL 2525 R 15/15 — 3D Model STP Download
PXFNL 2525 R 15/15 — Line Drawing PDF Download
