32A4R043M16-SAD11E-C
32A4R043M16-SAD11E-C
32A4R043M16-SAD11E-C

32A4R043M16-SAD11E-C

UGC DOR6759680
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$360.00 CAD - $360.00 CAD
$360.00 CAD
$360.00 CAD - $360.00 CAD
$360.00 CAD

Vendu en lots de : 1

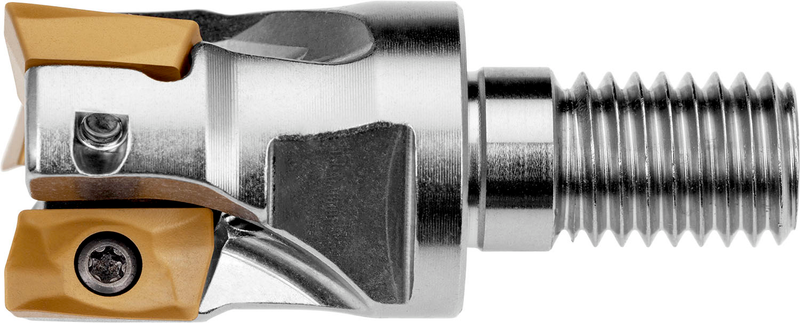

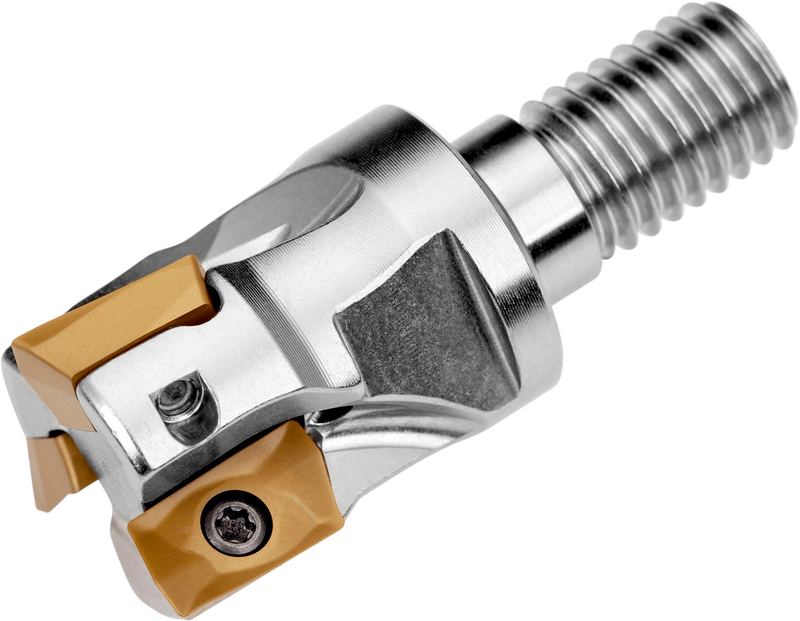

Fraise à épaulement à géométrie positive/négative qui utilise 4 plaquettes simple face ADMX 11T3.. ou ADEX 11T3.., diamètre de coupe 32mm avec angle d'attaque de 90° et queue filetée M16 pour porte-outils modulaires standards, longueur de dépassement de 43mm, arrosage par l'intérieur pour le fraisage en plongée, l'épaulement peu profond, le rainurage peu profond, l'interpolation hélicoïdale, le fraisage en hélice, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 9,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32A4R043M16-SAD11E-C
Product Number6759680
Product FamilySAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

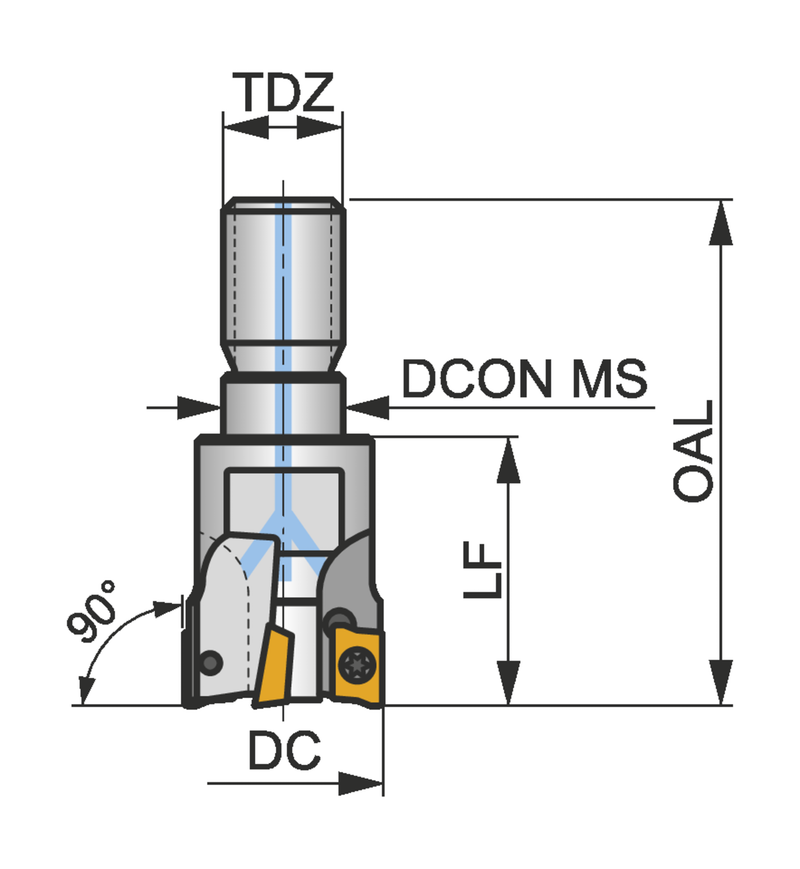

Dimensions
Cutting Diameter — in (DC)1.26"
Cutting Diameter — mm (DC)32.0 mm
Overall Length — in (OAL)2.598"
Overall Length — mm (OAL)66.0 mm
Functional Length — mm (LF)43.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignSAD11E
ShankAccouplement fileté
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6759680
EAN3603602950260
File Type Download
32A4R043M16-SAD11E-C — 3D Model STP Download
32A4R043M16-SAD11E-C — Line Drawing PDF Download
