16A2R050A16-SAD11E-C
16A2R050A16-SAD11E-C
16A2R050A16-SAD11E-C

16A2R050A16-SAD11E-C

UGC DOR6759683
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$277.00 CAD - $277.00 CAD
$277.00 CAD
$277.00 CAD - $277.00 CAD
$277.00 CAD

Vendu en lots de : 1

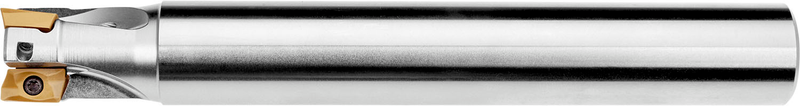

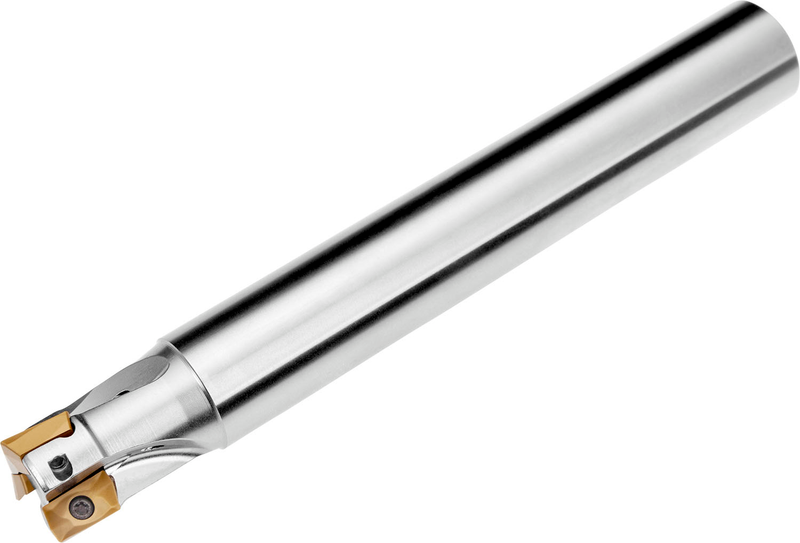

Fraise à épaulement à géométrie positive/négative utilisant deux plaquettes simple face ADMX 11T3... ou ADEX 11T3..., diamètre de coupe 16 mm avec un angle d'attaque de 90° et une queue cylindrique de 16 mm selon DIN 1835A, longueur utile de 50 mm et longueur totale de 135 mm, arrosage central pour le fraisage en plongée, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 9,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)16A2R050A16-SAD11E-C
Product Number6759683
Product FamilySAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

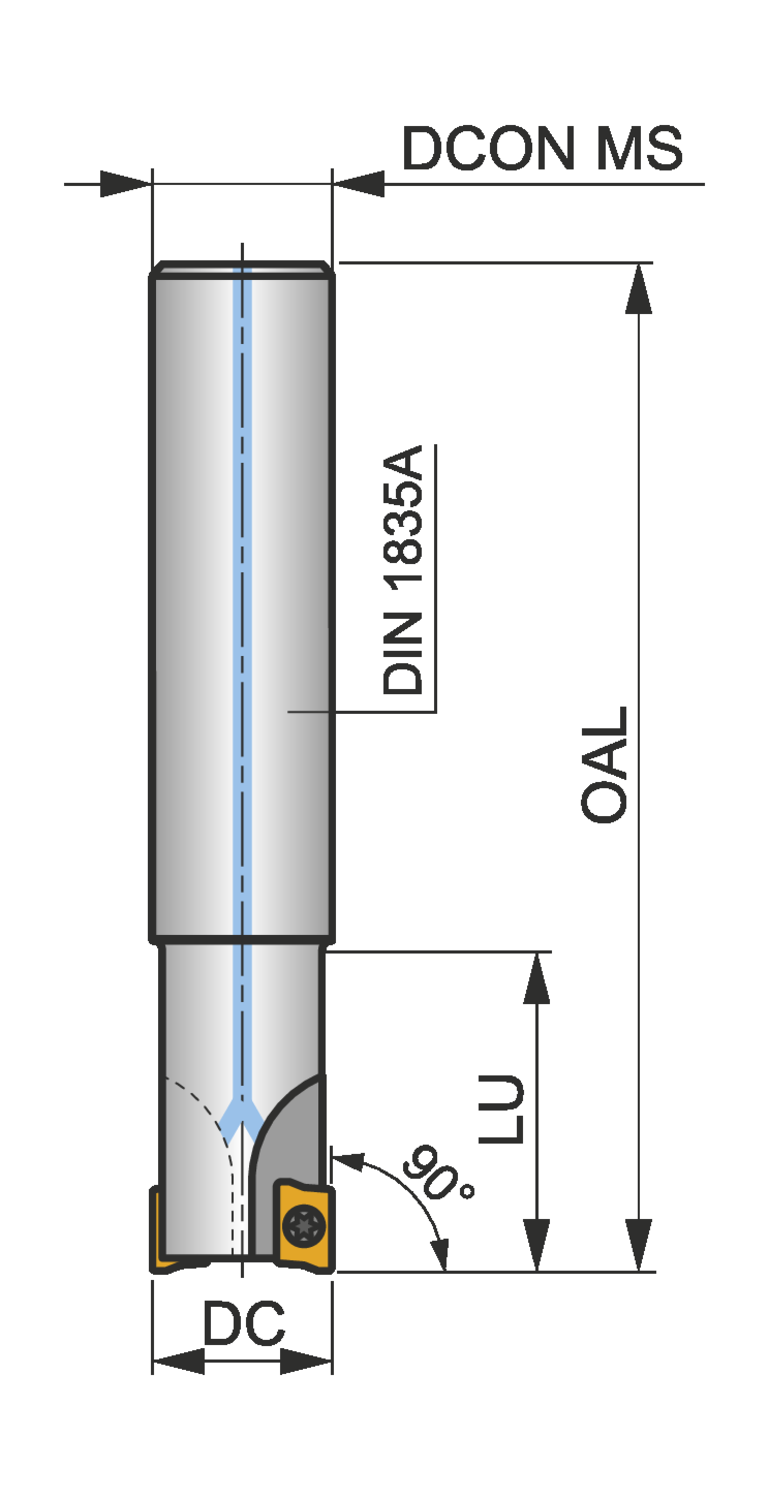

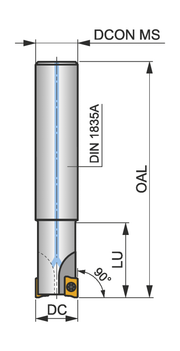

Dimensions
Cutting Diameter — in (DC)0.63"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)5.315"
Overall Length — mm (OAL)135.0 mm
Usable Length — mm (LU)50.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSAD11E
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6759683
EAN3603602950291
File Type Download
16A2R050A16-SAD11E-C — 3D Model STP Download
16A2R050A16-SAD11E-C — 2D Model DXF Download
16A2R050A16-SAD11E-C — Line Drawing PDF Download
